Roll Mesh Automatic Wire Mesh Welding Machine 3 - Phasse 380V / 220V 2 . 2 KW

I'm Online Chat Now

Roll Mesh Automatic Wire Mesh Welding Machine 3 - Phasse 380V / 220V 2 . 2 KW

China Roll Mesh Automatic Wire Mesh Welding Machine 3 - Phasse 380V / 220V 2 . 2 KW supplier
Roll Mesh Automatic Wire Mesh Welding Machine 3 - Phasse 380V / 220V 2 . 2 KW supplier Roll Mesh Automatic Wire Mesh Welding Machine 3 - Phasse 380V / 220V 2 . 2 KW supplier Roll Mesh Automatic Wire Mesh Welding Machine 3 - Phasse 380V / 220V 2 . 2 KW supplier Roll Mesh Automatic Wire Mesh Welding Machine 3 - Phasse 380V / 220V 2 . 2 KW supplier

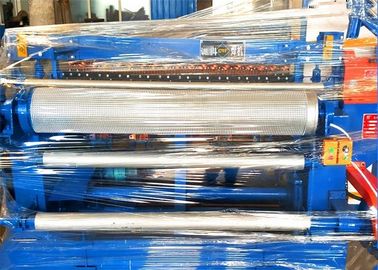

Large Image :  Roll Mesh Automatic Wire Mesh Welding Machine 3 - Phasse 380V / 220V 2 . 2 KW

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK - WW - 1500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Nude
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 Sets
Contact Now
Detailed Product Description
Color: Customer's Requirment Mesh Type: Roll Mesh
Warranty: 1 Year Product Name: Automatic Welded Wire Mesh Welding Machine
Condition: New After-sales: Engineers Available To Service Machinery Overseas

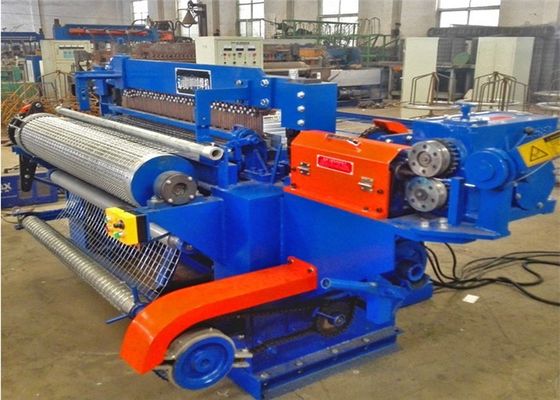

Automatic Welded wire mesh Welding Machine Making Welded Wire Mesh Roll





Description



1 . This machine is fully automatic to feed wires , weld mesh , cut edge and roll mesh .

2 . The raw material is applicable for low - carbon steel wire , galvanizing wire and stainless steel wire .

3 . It has advantages of reasonable design , low noise , stable working , easier operation etc .

4 . The mesh size is precise and can be set according to customers ’ requirements .

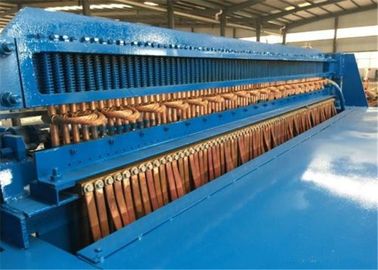

5 . It adopts sealed & water cooling welding transformers , the scoria can not easily goes in .



Features



1. The shuttle, quick speed, low noise, suitable for welding small stainless steel wire

(2) the size of the weft wire in advance according to the regulation straightening cutting is good, can be directly into the store manger, institution every action, will be a separate parallel falls to the discharge groove is arranged, automatic wire welding work, blanking agencies every action, according to the requirements of application to a parallel into welding level

3. Wire diameter size straightening cutting off well in advance in accordance with the relevant provisions, by artificial is put in a fixed position (a wooden mold)

4. The wire diameter artificial put good, weft wire into the store, the manger can automatic welding on the CNC computer input size into a net

5. Area with a online can also occur between weft and weft

6. The size of the hole diameter wire pitch, the pitch of the weft wire into a computer can achieve the pitch 7. You get the warp and weft are vetted by prior straightening straightening machine to cut off the

8. Welding machine has a compact, control the welding characteristics of

9. Shifting gear can be divided into nine levels, expand the scope of welding wire diameter

10. Power for electric welding, hopper adopts stepper motor, brake motor drive the car let off, stepping motor drive the car net



Specification



Model CK - WW - Q CK - WW - W CK - WW - E
Width of mesh 914 . 4mm ; 1000mm 1219 .2mm ; 1524mm (4feet , 5feet ) 1219 .2mm ; 1524mm ; 1828 . 8mm ; 2133 . 6mm(4feet , 5feet , 6feet , 7feet )
Mesh aperture 6 . 35mm - 12 . 7mm ( 1 / 4 - 1 / 2 ) 12 .7mm - 101 . 6mm ( 1 / 2 - 4 ) 25 .4mm - 101 . 6mm ( 1 - 4 )
Wire diameter 0 . 4mm - 0 . 65mm 0 . 65mm - 1 . 8mm 1 . 0mm - 2 . 2mm
Input voltage 3 - Phasse 380V / 220V / 415V/ 440V 50Hz / 60Hz
Motor 2 . 2 KW 2 . 2 KW 2 . 2 KW ; 4.0 KW
Overall size 2 . 3 * 1 .3 * 1 .4M 2 . 5 * 1 .3 * 1 .4M / 2 . 9 * 1 .3 * 1 .4M 2 . 5 * 1 .3 * 1 .4M / 2 . 9 * 1 .3 * 1 .4M / 3 . 3 * 1 .3 * 1 .4M / 3 . 6 * 1 .3 * 1 .4M
Weight 1 . 5T 2 . 0T / 2 . 5T 2 . 0T / 2 . 5T / 3 . 0T / 3 . 5T
Rated capacity 50kva * 3 60kva * 4 / 60kva * 5 60kva * 4 / 60kva * 5 / 60kva * 6 / 60kva * 7

Roll Mesh Automatic Wire Mesh Welding Machine 3 - Phasse 380V / 220V 2 . 2 KW
