Rebar Mesh Welding Machine , Reinforced Mesh Welding Machine Welding Speed 40 - 60 Times / Min

I'm Online Chat Now

Rebar Mesh Welding Machine , Reinforced Mesh Welding Machine Welding Speed 40 - 60 Times / Min

China Rebar Mesh Welding Machine , Reinforced Mesh Welding Machine Welding Speed 40 - 60 Times / Min supplier
Rebar Mesh Welding Machine , Reinforced Mesh Welding Machine Welding Speed 40 - 60 Times / Min supplier Rebar Mesh Welding Machine , Reinforced Mesh Welding Machine Welding Speed 40 - 60 Times / Min supplier Rebar Mesh Welding Machine , Reinforced Mesh Welding Machine Welding Speed 40 - 60 Times / Min supplier Rebar Mesh Welding Machine , Reinforced Mesh Welding Machine Welding Speed 40 - 60 Times / Min supplier

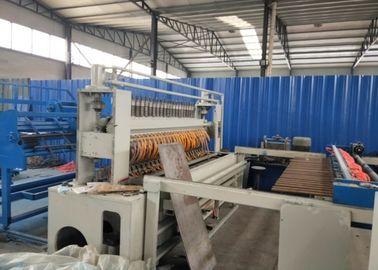

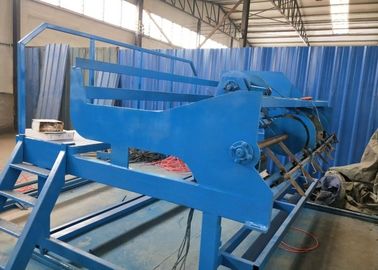

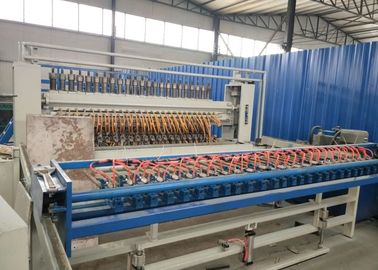

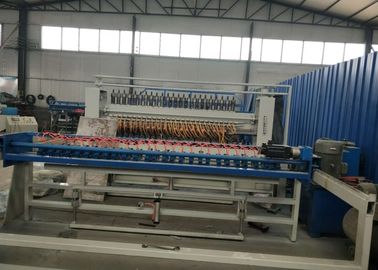

Large Image :  Rebar Mesh Welding Machine , Reinforced Mesh Welding Machine Welding Speed 40 - 60 Times / Min

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-AWM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: Automatic Wire Mesh Welding Machine Color: As Requirment
Wire Diameter: 5-12 Warranty: 1 Year
After-sales: Engineers Available To Service Machinery Overseas Speed: 40-60 Times/min

Automatic Wire Mesh Welding Machine Making Reinforcing Bar / Rebar / Steel Rebar Mesh





Description


Newest fully automatic CNC rebar welding net machine through programmatic intelligent control technology, change the way of manual operation, high reliability, will significantly improve the steel wire welding processing accuracy and production efficiency, the standard is suitable for large-scale network and complex number less construction with network production, building steel mesh and apply to all kinds of fence mesh welding net machine row welder welding, it covers an area of small production to low cost, easy operation, reasonable process, intelligent controller, the characteristics of free maintenance production process by the staff according to the actual need to adjust, finish all kinds of steel mesh welding forming, broad application prospect


Features



1. The machine is used for wire diameter 5-12mm, it is an automatic equipment that desiged and manufactured by ourselves. This machine is driven by pneumatic system and composed of line wire support system, water cooling welding transformer, pneumatic control cross wire falling system, servo motor pulling mesh device.

2. The machine uses PLC touch screen control technique, we use Japan, Sony digital control system which can be input to touch screen control panel to adjust the mesh size, so it can weld different mesh siz e on the same mesh panel .

3. Water-cooling transformer and water-cooling lower electrodes to make sure the welding firm during a long working time, and prolong the service life.

4. Feeding and Welding System Cross wire feeding: Firstly, the coil wires are straighten and cut into fixed length by straightening cutting machine, which become weft wire. Then worker put the weft wires into wire hopper. Wire hopper under the control of step motor, the weft wires falling automatically one by one
Line wire feeding: warp wires are the same to weft wires, firstly use straightening cutting machine to straighten and cut coil wire into fixed length. Then the line wires are sent by labor and fed automatically, when it welding and drawing, labors can prepare the wires, it increases the production efficiency.

5. Welding system: the machine welding system is controled by pneumatic system, which makes the adjusting of welding pressure simple and convenient. At the same time, the welding electrodes are equipped with water cooling system to make sure the welding during a long working time, and prolong the life .

6. The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more standard

and accurate.

7.Mesh falling system: Automatic falling mesh panel system is adopted, so it save much labor to move the mesh panels.



parameter



                                        Automatic Wire Mesh Welding Machine
Items CK-RM-1200 DC-RM-1600 DC-RM-2500
wire diameter 5-12mm 5-12mm 5-12mm
line wire space 100-300mm 100-300mm

100-300mm

cross wire space 50-300mm 50-300mm 50-300mm
wire forms pre-cut wires pre-cut wires pre-cut wires
mesh width 1200mm 1600mm 2500mm
number of electrodes 12 (customzied) 16(customized) 25(customized)
welding speed  40-60times/min 40-60times/min 40-60times/min
Cooling system Water cooling transformer Water cooling transformer Water cooling transformer
Controlling system PLC touch screen PLC touch screen PLC touch screen



Usage



Products are widely used in the floor &wall reinforcing mesh in the building,The steel mesh is applied in the construction of the concrete pavement of the concrete pavement in the industrial and residential buildings.
