Security Fence Barbed Wire Making Machine Automatic Lubricating System Low Energy Consumption

I'm Online Chat Now

Security Fence Barbed Wire Making Machine Automatic Lubricating System Low Energy Consumption

China Security Fence Barbed Wire Making Machine Automatic Lubricating System Low Energy Consumption supplier
Security Fence Barbed Wire Making Machine Automatic Lubricating System Low Energy Consumption supplier Security Fence Barbed Wire Making Machine Automatic Lubricating System Low Energy Consumption supplier Security Fence Barbed Wire Making Machine Automatic Lubricating System Low Energy Consumption supplier Security Fence Barbed Wire Making Machine Automatic Lubricating System Low Energy Consumption supplier

Large Image :  Security Fence Barbed Wire Making Machine Automatic Lubricating System Low Energy Consumption

Product Details:

Place of Origin: Anping China
Brand Name: ChengKe
Certification: ISO
Model Number: CK-BW

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 35 sets
Contact Now
Detailed Product Description
Warranty: 1 Year Color: Your Request
Product Name: Fully - Automatic Heavy Duty Razor Wire Making Machine After-sales: Overseas Service Provided
Rated Voltage: 380V Power: 2.2 Kw

High Speed Double Edge Razor Barbed Wire Machine Easy Operate , easy Maintain





Description

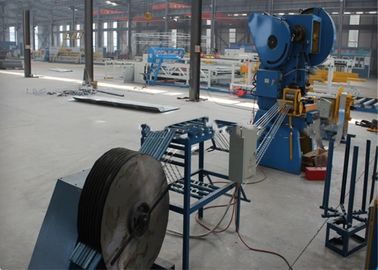

Razor strip making machine cuts steel strip into different razor shapes according to different moulds.

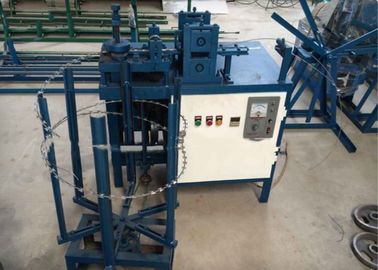

Coil machine wraps razor strip up onto the steel wire and wind up the finished products into rolls.



Features



1. high speed punching machine
2. Automatic lubricating system to save operation time and avoid some parts worn because of short of lubrication oil.
3. Step or servo motor feeding material to make material feeding more precise.
4. PLC control to make operation easy and machine run stable.
5. Some spare parts for free

Usage

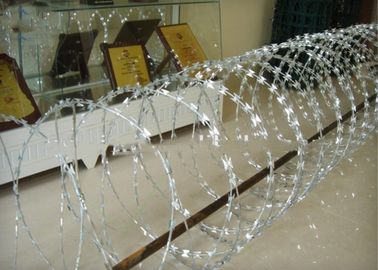

Razor wire is mainly used for safe isolation of military facilities,communications stations,power transformer substation,and territorial prison,dump site,community protection, school,factories and farms.



information

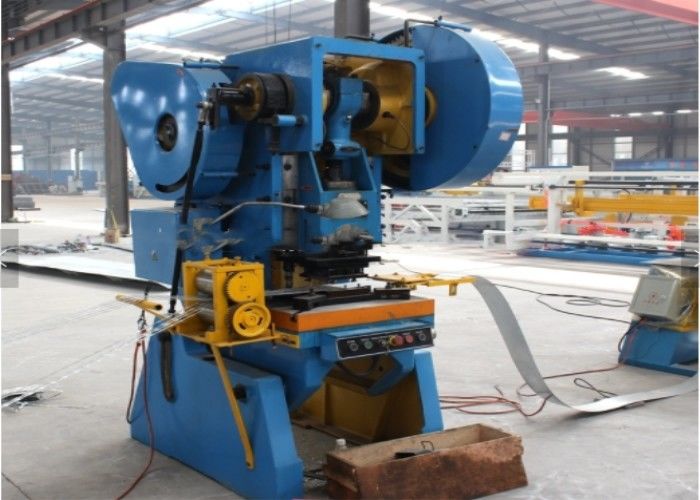

Punching machine

Model Five strip
Voltage 380V, 50Hz or client’s required voltage
Power 2.2kw
Producing speed 220-280m/h
Thickness 0.5±0.05mm
Pressure 25T
Weight 1500Kg
Dimension 1200mm×1000mm×1900mm



Coiling machine

Voltage 380V, 50Hz,or client’s required voltage
Power 1.5kw
Producing speed 80Kg/h
Wire diameter 2.5mm
Weight 300Kg
Dimension 1100mm×750mm×1200mm



Mould

Mould type Barb Length Barb width Barb spacing
R1 12±1mm 13±1mm 26±1mm
R2 12±1mm 15±1mm 26±1mm
R3 18±1mm 15±1mm 33±1mm
R4 22±1mm 15±1mm 34±1mm
R5 28±1mm 15±1mm 34±1mm
R6 30±1mm 18±1mm 34±1mm
R7 60±1mm 32±1mm 96±1mm
R8 65±1mm 21±1mm 100±1mm
