High Speed Barbed Wire Manufacturing Machine , High Accuracy Barbed Wire Fencing Machine

I'm Online Chat Now

High Speed Barbed Wire Manufacturing Machine , High Accuracy Barbed Wire Fencing Machine

China High Speed Barbed Wire Manufacturing Machine , High Accuracy Barbed Wire Fencing Machine supplier
High Speed Barbed Wire Manufacturing Machine , High Accuracy Barbed Wire Fencing Machine supplier High Speed Barbed Wire Manufacturing Machine , High Accuracy Barbed Wire Fencing Machine supplier High Speed Barbed Wire Manufacturing Machine , High Accuracy Barbed Wire Fencing Machine supplier High Speed Barbed Wire Manufacturing Machine , High Accuracy Barbed Wire Fencing Machine supplier

Large Image :  High Speed Barbed Wire Manufacturing Machine , High Accuracy Barbed Wire Fencing Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-BW

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Product Name: Stainless Steel Wire Barbed Wire Making Machine Condition: New
Strand Diameter: 1.6-3.0 Mm After-sales: Overseas Service Provided
Warranty: 1 Year Motor: 3 Kw

Pasture Boundary National Border Lines Twisting Barbed Wire Making Machine





Description

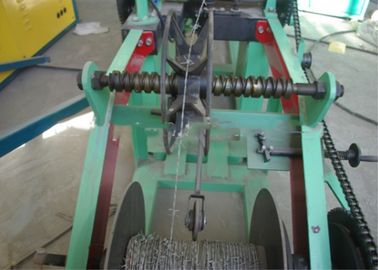

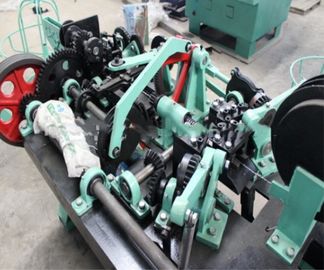

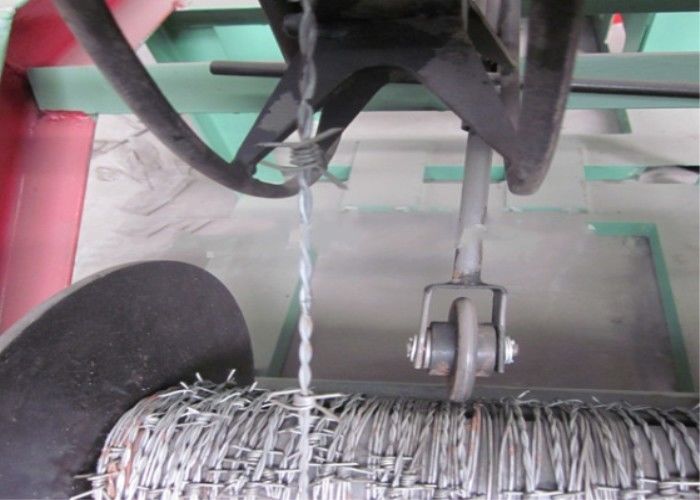

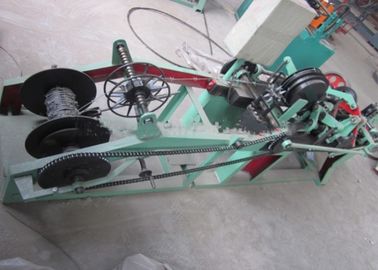

High Speed Barbed wire machine is used to produce barbed wire, which is widely used for safety protection function. CS-A is normal twisted best price barbed wire machine. CS-C is double reverse twist best price barbed wire machine. CS-B is single barbed wire making machine.



Features



1. Manually installation, Easy to set up;
2. Steel cover on driving shaft for safety operation;
3. Saving materials and high capacity;
4. Counter to count the number of barbs and calculate length of barbed wire.
5. Button swithes and leveler to start and stop machine easily.
6. Quick and easy roll extraction from the machine.
7. Guiding system to avoid wire snarls.



Uses



Widely used in military field,Prisons,Detention houses, Government Buildings, National Security Facilities.

Fencing of Residences,Villa Wall and Windows,Express Way,Railway,National Border Lines.



information



Model CS-C Type
Motor power (KW) 2.2
Main drive shaft speed (r/min) 355
Wire Diameter (mm) 1.6-2.8
Barbed wire diameter (mm) 1.6-2.2
Barbed space (mm) 102 (34 inch)/ 127 (5 inch)
Twisted number 7
Theoretical production (kg/h) 40
Total weight (kg) 1000
Dimension (L×W×H)(mm) 3100×1000×1150
