Fully Automatic Barbed Wire Machine , Double Twist Barb Wire Fencing Equipment

I'm Online Chat Now

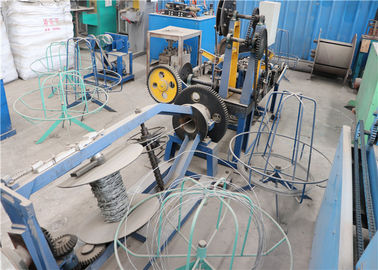

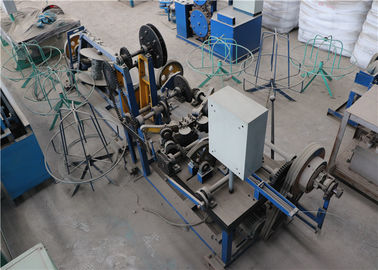

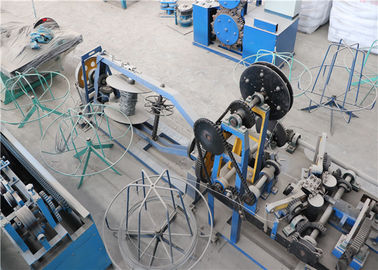

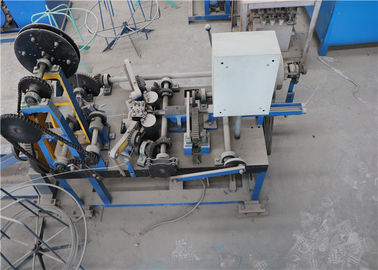

Fully Automatic Barbed Wire Machine , Double Twist Barb Wire Fencing Equipment

China Fully Automatic Barbed Wire Machine , Double Twist Barb Wire Fencing Equipment supplier
Fully Automatic Barbed Wire Machine , Double Twist Barb Wire Fencing Equipment supplier Fully Automatic Barbed Wire Machine , Double Twist Barb Wire Fencing Equipment supplier Fully Automatic Barbed Wire Machine , Double Twist Barb Wire Fencing Equipment supplier Fully Automatic Barbed Wire Machine , Double Twist Barb Wire Fencing Equipment supplier

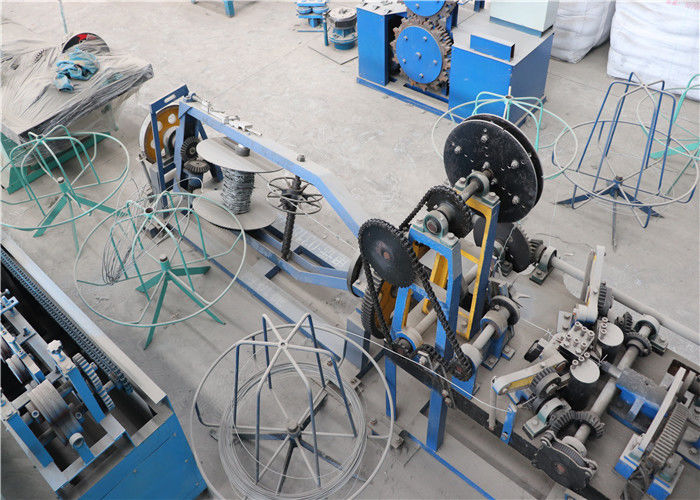

Large Image :  Fully Automatic Barbed Wire Machine , Double Twist Barb Wire Fencing Equipment

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-BW

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Product Name: High Speed Automatic Double Twist Barbed Wire Machine Condition: New
Strand Diameter: 1.6-3.0 Mm After-sales: Overseas Service Provided
Warranty: 1 Year Productivity: 70 Kg/h

High Speed Automatic Double Twist Barbed Wire Machine For Animal Husbandry





Description



Barbed Wire Making Machinery For making 2-strand 4 barbed points barbed wire, high speed in output, rach to 33 linear meters / minute around 140kgs / per hour. Easy operate and maintenance. Same machine for making different wire materials, including stainless steel wires.

Wire Materials: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.
General Use: Barbed wire mainly serves in protecting of grass boundary, railway, highway, etc.

The machine is compose of spool wire and twist wire two parts. And the machine is fitted with four disks for wire rewinding. The machine is coordination of various components ,gentle movement.

The machine is mainly applicable to the production of a variety of multistrand barbed rope. The usage materials should be consistent with stable, flexible operation and reliable.



Features



1. It is of low-noise, high-safety and high-efficiency.

2. It is easy to operate and of high-capacity.

3. Twisted number and barbed space can be customized according to customer's requirement.

4. It is inexpensive.



information



1. CS-A type Barbed Wire Machine

No. Item Units Parameters
1 Motor power KW 3
2 Main drive shaft speed r/min 402
3 Strand wire diameter mm 2.2-3.0
4 Barbed wire diameter mm 1.8-2.2
5 Barb distance Mm 76(3”) 102(4”) 127(5”)
6 Twist number Pcs 3.5
7 Theoretical output Kg/h 70
8 Total weight Kg 1200
9 Dimension of main part mm 1950*950*1300
10 Dimension of take-twisting part mm 1760*550*760



2. CS-B type Single Strand Barbed Wire Machine



No. Item Units Parameters
1 Motor power KW 2.2
2 Main drive shaft speed r/min 355
3 Strand wire diameter mm 2.2-3.0
4 Barbed wire diameter mm 1.8-2.2
5 Barb distance Mm 102(4”) 127(5”)
6 Theoretical output Kg/h 40
7 Total weight Kg 1000
8 Dimension mm 3100*1000*1150



3. CS-C type Straight and Reverse Twisted Barbed Wire Machine



No. Item Units Parameters
1 Motor power KW 2.2
2 Main drive shaft speed r/min 355
3 Strand wire diameter mm 1.6-2.8
4 Barbed wire diameter mm 1.6-2.2
5 Barb distance Mm 102(4”) 127(5”)
6 Twist number Pcs 7
7 Theoretical output Kg/h 40
8 Total weight Kg 1000
9 Dimension mm 3000*1000*1150



Uses



Widely used in military field,Prisons,Detention houses, Government Buildings, National Security Facilities.

Fencing of Residences,Villa Wall and Windows,Express Way,Railway,National Border Lines.
