Stainless Steel Wire Barbed Wire Making Machine Compact Structure Saving Materials

I'm Online Chat Now

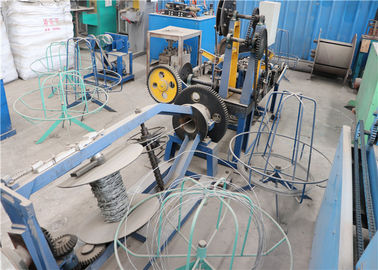

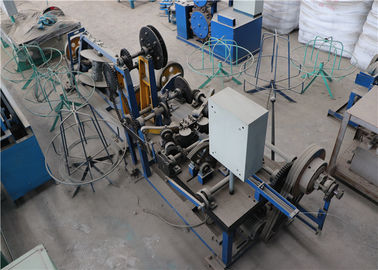

Stainless Steel Wire Barbed Wire Making Machine Compact Structure Saving Materials

China Stainless Steel Wire Barbed Wire Making Machine Compact Structure Saving Materials supplier
Stainless Steel Wire Barbed Wire Making Machine Compact Structure Saving Materials supplier Stainless Steel Wire Barbed Wire Making Machine Compact Structure Saving Materials supplier Stainless Steel Wire Barbed Wire Making Machine Compact Structure Saving Materials supplier Stainless Steel Wire Barbed Wire Making Machine Compact Structure Saving Materials supplier

Large Image :  Stainless Steel Wire Barbed Wire Making Machine Compact Structure Saving Materials

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-BW

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Product Name: Stainless Steel Wire Barbed Wire Making Machine Condition: New
Strand Diameter: 1.6-3.0 Mm After-sales: Overseas Service Provided
Warranty: 1 Year Motor: 3 Kw

Electric Galvanized Barbed Wire Making Machine / Wire Barbed / Thorn Machinery





Description



It is the specialized machine for manufacturing barbed wires. The machine has high efficiency and quality with compact structure, small volume, easy operation and regulation, convenient maintenance and low power consumption

The material can be galvanized wire, pvc coated iron wire ,etc

The products are most used in highway, railway, grassland parapet and other places.

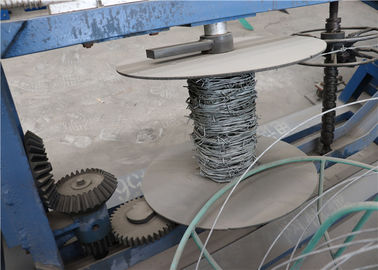

One full set machine contains two parts :Wire Collection Part and Wire Collection And Twisting Part ,we will supply 4 sets wire rollers also

Machine types:

1. CSA -double wires with normal twisted ways

2. CSB-double wires with straight and reverse twisted ways

3. CSC-single wire with normal twisted ways



Features



1. Manually installation, Easy to set up;

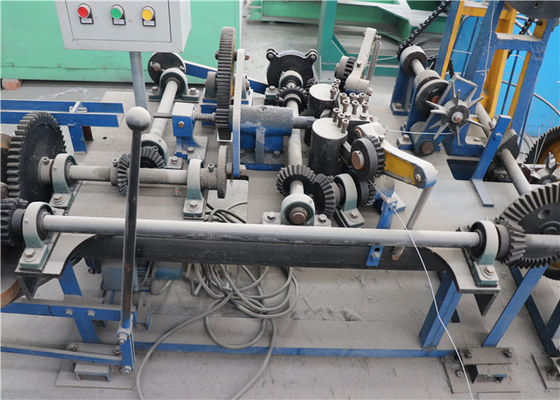

2. Steel cover on driving shaft for safety operation;
3. Saving materials and high capacity;
4. Counter to count the number of barbs and calculate length of barbed wire.
5. Button swithes and leveler to start and stop machine easily.
6. Quick and easy roll extraction from the machine.
7. Guiding system to avoid wire snarls.



information



1. CS-A type Barbed Wire Machine

No. Item Units Parameters
1 Motor power KW 3
2 Main drive shaft speed r/min 402
3 Strand wire diameter mm 2.2-3.0
4 Barbed wire diameter mm 1.8-2.2
5 Barb distance Mm 76(3”) 102(4”) 127(5”)
6 Twist number Pcs 3.5
7 Theoretical output Kg/h 70
8 Total weight Kg 1200
9 Dimension of main part mm 1950*950*1300
10 Dimension of take-twisting part mm 1760*550*760



2. CS-B type Single Strand Barbed Wire Machine



No. Item Units Parameters
1 Motor power KW 2.2
2 Main drive shaft speed r/min 355
3 Strand wire diameter mm 2.2-3.0
4 Barbed wire diameter mm 1.8-2.2
5 Barb distance Mm 102(4”) 127(5”)
6 Theoretical output Kg/h 40
7 Total weight Kg 1000
8 Dimension mm 3100*1000*1150



3. CS-C type Straight and Reverse Twisted Barbed Wire Machine



No. Item Units Parameters
1 Motor power KW 2.2
2 Main drive shaft speed r/min 355
3 Strand wire diameter mm 1.6-2.8
4 Barbed wire diameter mm 1.6-2.2
5 Barb distance Mm 102(4”) 127(5”)
6 Twist number Pcs 7
7 Theoretical output Kg/h 40
8 Total weight Kg 1000
9 Dimension mm 3000*1000*1150



Uses



Widely used in military field,Prisons,Detention houses, Government Buildings, National Security Facilities.

Fencing of Residences,Villa Wall and Windows,Express Way,Railway,National Border Lines.
