Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Sheet Thickness: | 0.4-0.6 Mm |
|---|---|---|---|
| Product Name: | Fully - Automatic Heavy Duty Razor Wire Making Machine | After-sales: | Overseas Service Provided |
| Rated Voltage: | 380V | Punching Speed: | 100-120 Times Per Min |
| High Light: | barbed wire manufacturing machine,high speed barbed wire machine |
||
Automatic Razor Barbed Wire Making Machine BTO10 / 12 / 18 / 22 / 28 / 30 CBT60 / 65
Description
1. > Razor wire machine, also named as razor barbed wire machine, is specially used to manufacture razor barbed wires. It mainly consists of punching razor strip machine, coiling wire machine and mould.
2. > Whole production line:
Decoiler→ Punching machine→ Razor strip drawing shelf→ Razor strip collector→ Razor strip laying shelf and wire pay-off stand→ Wire coiling machine→ Finished razor wire collector

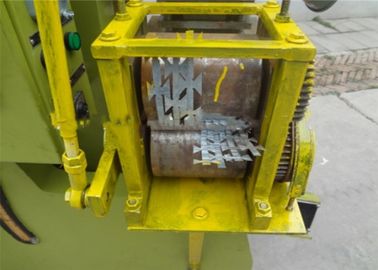

3. > Steps: 1. The punching razor strip machine is used as punching the outside razor strip of razor wire.
2. The coiling wire machine is used as coiling the wire into the razor strip to form the finished razor wire.
3. The mould decide the razor length, width the space.
4. > Finished product usage:
The razor wire is mainly used for safe isolation of military facilities, communications stations, power transformer substation, and territorial prison, dump site, community protection, school, factories and farms.
Advantage
1. saves time, 20% raw materials and cost.
2. easy operation,
3. high efficiency,
4. easy maintenance and material saving.
information

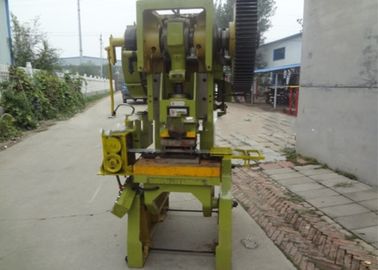

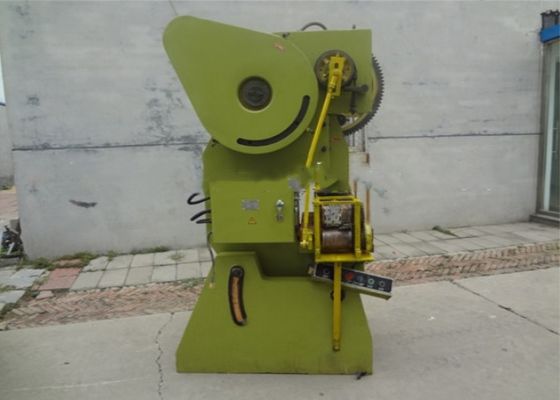

Punching machine
| Model | Five strip |
| Voltage | 380V, 50Hz or client’s required voltage |
| Power | 2.2kw |
| Producing speed | 220-280m/h |
| Thickness | 0.5±0.05mm |
| Pressure | 25T |
| Weight | 1500Kg |
| Dimension | 1200mm×1000mm×1900mm |
Coiling machine
| Voltage | 380V, 50Hz,or client’s required voltage |
| Power | 1.5kw |
| Producing speed | 80Kg/h |
| Wire diameter | 2.5mm |
| Weight | 300Kg |
| Dimension | 1100mm×750mm×1200mm |
Mould
| Mould type | Barb Length | Barb width | Barb spacing |
| R1 | 12±1mm | 13±1mm | 26±1mm |
| R2 | 12±1mm | 15±1mm | 26±1mm |
| R3 | 18±1mm | 15±1mm | 33±1mm |
| R4 | 22±1mm | 15±1mm | 34±1mm |
| R5 | 28±1mm | 15±1mm | 34±1mm |
| R6 | 30±1mm | 18±1mm | 34±1mm |
| R7 | 60±1mm | 32±1mm | 96±1mm |
| R8 | 65±1mm | 21±1mm | 100±1mm |
Usage
Concertina razor wire production is widely used in the field of safety isolation for military facilities, radio stations, power distribution substation, frontiers, prisons, residential areas, schools, factories and farms, etc.

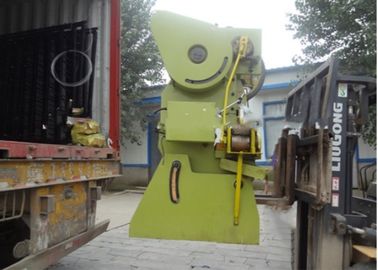

Packaging
According to the international standard or as to customer' s request.
