1.6 - 3.0 Mm Single Strand Barbed Wire Making Machine Durable Long Service Life

I'm Online Chat Now

1.6 - 3.0 Mm Single Strand Barbed Wire Making Machine Durable Long Service Life

China 1.6 - 3.0 Mm Single Strand Barbed Wire Making Machine Durable Long Service Life supplier
1.6 - 3.0 Mm Single Strand Barbed Wire Making Machine Durable Long Service Life supplier 1.6 - 3.0 Mm Single Strand Barbed Wire Making Machine Durable Long Service Life supplier 1.6 - 3.0 Mm Single Strand Barbed Wire Making Machine Durable Long Service Life supplier 1.6 - 3.0 Mm Single Strand Barbed Wire Making Machine Durable Long Service Life supplier

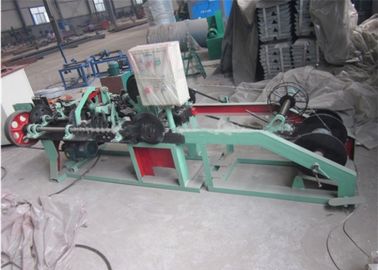

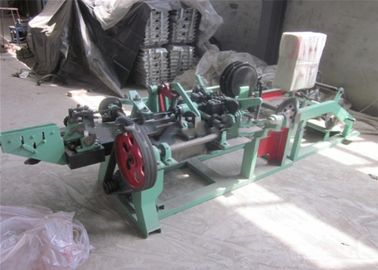

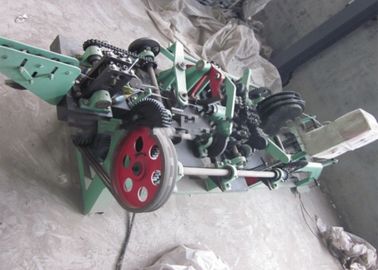

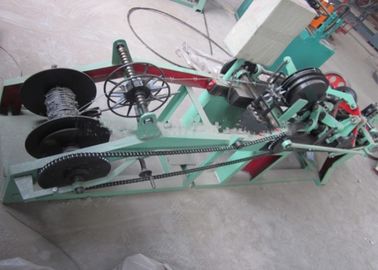

Large Image :  1.6 - 3.0 Mm Single Strand Barbed Wire Making Machine Durable Long Service Life

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-BW

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Product Name: Stainless Steel Wire Barbed Wire Making Machine Condition: New
Strand Diameter: 1.6-3.0 Mm After-sales: Overseas Service Provided
Warranty: 1 Year Production: 20 M/min

Barbed Wire Making Machine for making hot dipped galvanized barbed wire





Description



High Speed Barbed wire machine is used to produce barbed wire, which is widely used for safety protection function. CS-A is normal twisted best price barbed wire machine. CS-C is double reverse twist best price barbed wire machine. CS-B is single barbed wire making machine.



Features



1. Manually installation, Easy to set up;
2. Steel cover on driving shaft for safety operation;
3. Saving materials and high capacity;
4. Counter to count the number of barbs and calculate length of barbed wire.
5. Button swithes and leveler to start and stop machine easily.
6. Quick and easy roll extraction from the machine.
7. Guiding system to avoid wire snarls.



information



1. CS-A type Barbed Wire Machine

No. Item Units Parameters
1 Motor power KW 3
2 Main drive shaft speed r/min 402
3 Strand wire diameter mm 2.2-3.0
4 Barbed wire diameter mm 1.8-2.2
5 Barb distance Mm 76(3”) 102(4”) 127(5”)
6 Twist number Pcs 3.5
7 Theoretical output Kg/h 70
8 Total weight Kg 1200
9 Dimension of main part mm 1950*950*1300
10 Dimension of take-twisting part mm 1760*550*760



2. CS-B type Single Strand Barbed Wire Machine



No.

Item

Units

Parameters

1

Motor power

KW

2.2

2

Main drive shaft speed

r/min

355

3

Strand wire diameter

mm

2.2-3.0

4

Barbed wire diameter

mm

1.8-2.2

5

Barb distance

Mm

102(4”)  127(5”)

6

Theoretical output

Kg/h

40

7

Total weight

Kg

1000

8

Dimension

mm

3100*1000*1150



3.CS-C type Straight and Reverse Twisted Barbed Wire Machine



No.

Item

Units

Parameters

1

Motor power

KW

2.2

2

Main drive shaft speed

r/min

355

3

Strand wire diameter

mm

1.6-2.8

4

Barbed wire diameter

mm

1.6-2.2

5

Barb distance

Mm

102(4”)  127(5”)

6

Twist number

Pcs

7

7

Theoretical output

Kg/h

40

8

Total weight

Kg

1000

9

Dimension

mm

3000*1000*1150



Uses



Widely used in military field,Prisons,Detention houses, Government Buildings, National Security Facilities.

Fencing of Residences,Villa Wall and Windows,Express Way,Railway,National Border Lines.
