Product Details:
Payment & Shipping Terms:
|
| Product Name: | Stainless Steel Wire Barbed Wire Making Machine | Condition: | New |
|---|---|---|---|
| Strand Diameter: | 1.6-3.0 Mm | After-sales: | Overseas Service Provided |
| Warranty: | 1 Year | Twisting Type: | Double Twisted |
| High Light: | barbed wire manufacturing machine,razor wire making machine |
||

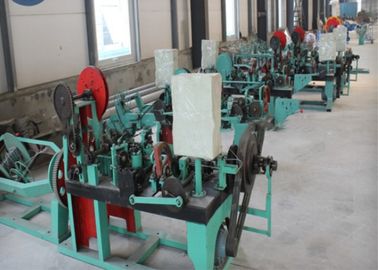

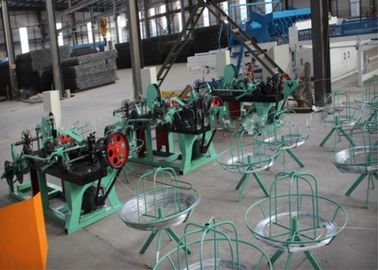

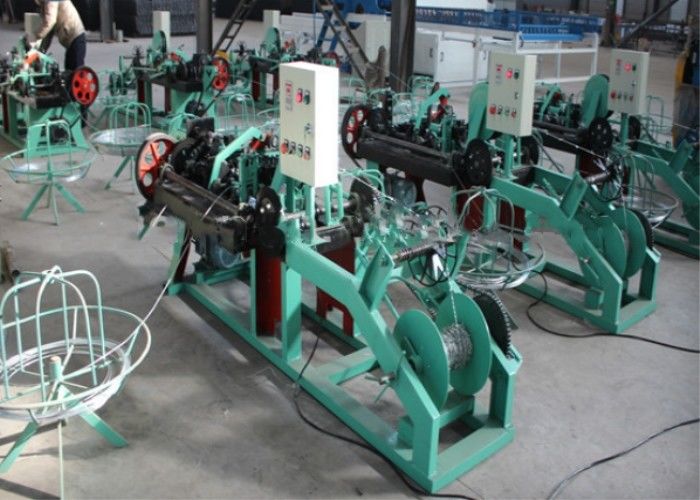

Galvanized Wire / PVC Coated Wire / Stainless Steel Wire Barbed Wire Making Machine
Description
Barbed Wire Fencing Making Machine is mainly used to produce barbed wire which is mainly used for the protection of national defence, railway and expressway. The machine could be cataloged as single strand barbed wire machine, double-strand barbed wire machine, double-strand positive and negative twist barbed wire The raw material can be Galvanized wire, PVC Coated wire etc.
Features
The machine is stable
low noise production safety
energy saving
high production efficiency
advanced electronic counting control
information
| Model | CS-A | CS-B | CS-C |
| Motor(KW) | 2.2 | 2.2 | 2.2 |
| Main drive shaft speed(r/min) | 402 | 355 | 355 |
| wire diameter (mm) | 2.2-3.0 | 2.2-3.0 | 1.6-2.2 |
| Barbed wire diameter(mm) | 1.8-2.2 | 1.8-2.2 | 1.6-2.2 |
| Barbed space (mm) | 76, 102, 127 | 102, 127 | 102, 127 |
| theoretical production(kg/h) | 77 | 40 | 40 |
| weight(kg) | 1000 | 950 | 950 |
| Main part size(mm) | 1950*950*1300 | 3100*1000*1150 | 3100*1000*1150 |
Uses
Widely used in military field,Prisons,Detention houses, Government Buildings, National Security Facilities.
Fencing of Residences,Villa Wall and Windows,Express Way,Railway,National Border Lines.
