Capacity 40KVA * 4 Welded Wire Mesh Machine , Electric Wire Mesh Roll Welding Machine

I'm Online Chat Now

Capacity 40KVA * 4 Welded Wire Mesh Machine , Electric Wire Mesh Roll Welding Machine

China Capacity 40KVA * 4 Welded Wire Mesh Machine , Electric Wire Mesh Roll Welding Machine supplier
Capacity 40KVA * 4 Welded Wire Mesh Machine , Electric Wire Mesh Roll Welding Machine supplier Capacity 40KVA * 4 Welded Wire Mesh Machine , Electric Wire Mesh Roll Welding Machine supplier Capacity 40KVA * 4 Welded Wire Mesh Machine , Electric Wire Mesh Roll Welding Machine supplier Capacity 40KVA * 4 Welded Wire Mesh Machine , Electric Wire Mesh Roll Welding Machine supplier

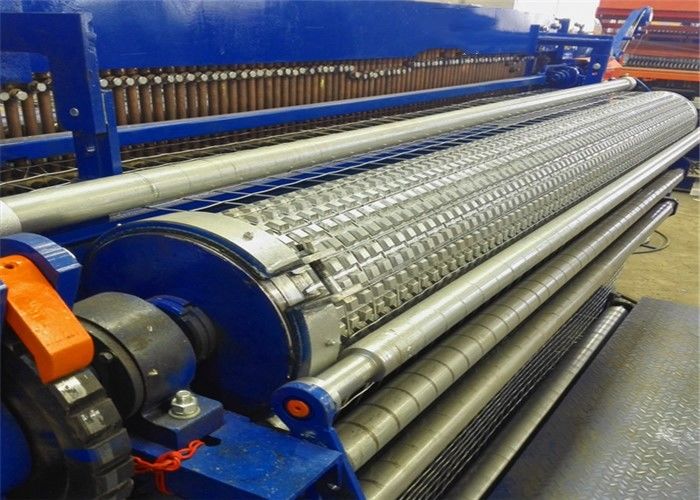

Large Image :  Capacity 40KVA * 4 Welded Wire Mesh Machine , Electric Wire Mesh Roll Welding Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-RM-1500A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: Welded Wire Mesh Machine Wire Diameter: 0.8-2mm
Color: Customer Demand Rated Capacity:: 40KVA*4
Warranty: 1 Year After-sales: Overseas Service Provided
High Light:

wire mesh roll welding machine

,

steel wire mesh welding machine

Electric Welded Wire Mesh Machines Belt Mesh Repairing Table





description



1 . This machine is fully automatic to feed wires , weld mesh , cut edge and roll mesh .

2 . The raw material is applicable for low - carbon steel wire , galvanizing wire and stainless steel wire .

3 . It has advantages of reasonable design , low noise , stable working , easier operation etc .

4 . The mesh size is precise and can be set according to customers ’ requirements .

5 . It adopts sealed & water cooling welding transformers , the scoria can not easily goes in .



Features



Longitudinal diameter conveying mechanism: the main gear element and electronic components are made by European or Asian longitudinal diameter step institutions: the main gear element and electronic components are made by European or Asian storage rack: longitudinal diameter have a boulder specialized engineers to design and manufacture of the welding system: adopting European technology, the use of special copper belt, improves the conductivity greatly save energy welding cable: adopt European technology, the use of special copper strip, improves the conductivity greatly save energy: professional welding transformer materials imported from Japan, adopting the technology control system: adopting the special anti-interference servo motor and controller according to the control system of famous brand of demand of customers



information



Model CK - WW - Q CK - WW - W CK - WW - E
Width of mesh 914 . 4mm ; 1000mm 1219 .2mm ; 1524mm (4feet , 5feet ) 1219 .2mm ; 1524mm ; 1828 . 8mm ; 2133 . 6mm(4feet , 5feet , 6feet , 7feet )
Mesh aperture 6 . 35mm - 12 . 7mm ( 1 / 4 - 1 / 2 ) 12 .7mm - 101 . 6mm ( 1 / 2 - 4 ) 25 .4mm - 101 . 6mm ( 1 - 4 )
Wire diameter 0 . 4mm - 0 . 65mm 0 . 65mm - 1 . 8mm 1 . 0mm - 2 . 2mm
Input voltage 3 - Phasse 380V / 220V / 415V/ 440V 50Hz / 60Hz
Motor 2 . 2 KW 2 . 2 KW 2 . 2 KW ; 4.0 KW
Overall size 2 . 3 * 1 .3 * 1 .4M 2 . 5 * 1 .3 * 1 .4M / 2 . 9 * 1 .3 * 1 .4M 2 . 5 * 1 .3 * 1 .4M / 2 . 9 * 1 .3 * 1 .4M / 3 . 3 * 1 .3 * 1 .4M / 3 . 6 * 1 .3 * 1 .4M
Weight 1 . 5T 2 . 0T / 2 . 5T 2 . 0T / 2 . 5T / 3 . 0T / 3 . 5T
Rated capacity 50kva * 3 60kva * 4 / 60kva * 5 60kva * 4 / 60kva * 5 / 60kva * 6 / 60kva * 7
