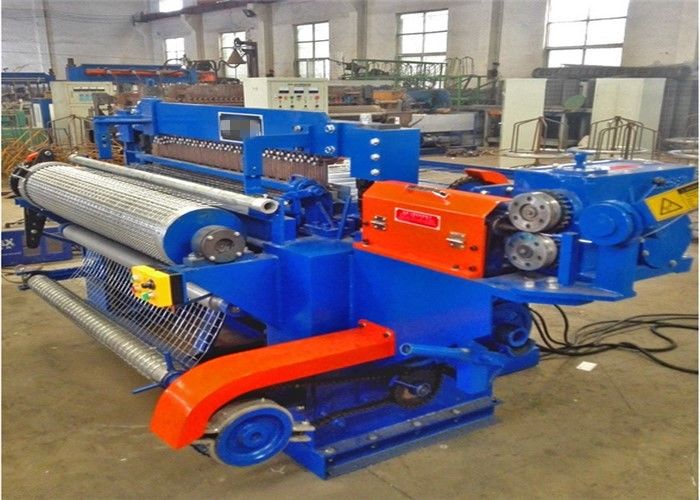

Galvanized Wire Mesh Roll Mesh Welding Machine 50KWA X 6 Low Power Consumption

I'm Online Chat Now

Galvanized Wire Mesh Roll Mesh Welding Machine 50KWA X 6 Low Power Consumption

China Galvanized Wire Mesh Roll Mesh Welding Machine 50KWA X 6 Low Power Consumption supplier
Galvanized Wire Mesh Roll Mesh Welding Machine 50KWA X 6 Low Power Consumption supplier Galvanized Wire Mesh Roll Mesh Welding Machine 50KWA X 6 Low Power Consumption supplier Galvanized Wire Mesh Roll Mesh Welding Machine 50KWA X 6 Low Power Consumption supplier Galvanized Wire Mesh Roll Mesh Welding Machine 50KWA X 6 Low Power Consumption supplier

Large Image :  Galvanized Wire Mesh Roll Mesh Welding Machine 50KWA X 6 Low Power Consumption

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-RM-1500A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: Galvanized Mesh Evg Mesh Welding Machine Wire Diameter: 0.45-2.7mm
Color: Customer Demand Rated Capacity: 40KVA*4
Warranty: 1 Year After-sales: Overseas Service Provided

Automatic Roll Mesh Welding Machine For 2 X 2 Inch Galvanized Wire Mesh





description



We specialize in the production of highly advanced Wire Mesh Machine in the industry. Our Welded Wire Mesh Machine is designed and developed as per the international quality and norms. Our machines are available in different models and sizes at most competitive prices. The wire mesh bending machine is to produce Holland mesh, but when not bending, the machine can also produce ordinary wire mesh



Features



Form of welded wire mesh can be made into mesh, mesh surface jinsu or coating process, can be used in welded wire mesh of the surface to form a layer of protective film, can effectively make the wire with the outside world with water or corrosive substances isolation, can achieve the effect of growth time, also can make the mesh surface present a different color, make the mesh to achieve the effect of beautiful jinsu after mesh is usually used for outdoor, and post links, can have the effect of protective guard against theft



information



1.

Mesh(mm) 25.4-152.4 (1"-6")
With(mm) 1219.2,1524,1828.8 (48", 60", 72")
Wire Diameter(mm) Dia.1.07-Dia.2 ( BWG19-BWG14)
Production Length per Roll(mm) 91.4m (300')
Welding Rate 45 ( radia)
Energy Consumption 380/220V;50-60HZ;50KWAx6
Outside Dimensions(mm) 3350x1800x1400



2.

Mesh(mm) 6.35-12.7 (1/4"-1/2")
With(mm) 1219.2-1828.8 (48"-60")
Wire Diameter(mm) Dia.0.74-Dia.1.07 ( BWG22-BWG19)
Production Length per Roll(mm) 120m (400')
Welding Rate 48( radia)
Energy Consumption 380/220V;50-60HZ;50KWAx6
Outside Dimensions(mm) 3050x1900x1750



3.

Mesh(mm) 6.35-12.7 (1/4"-1/2")
With(mm) 914.4-1219.2 (12"-48")
Wire Diameter(mm) Dia.0.45-Dia.1.07 ( BWG25-BWG19)
Production Length per Roll(mm) 120m (400')
Welding Rate 75 ( radia)
Energy Consumption 380/220V;50-60HZ;50KWAx4
Outside Dimensions(mm) 2350x1820x1700
