Product Details:
Payment & Shipping Terms:
|
| Product Name: | Automatic Wire Mesh Welding Machine | Color: | Customer's Requirment |
|---|---|---|---|
| Wire Diameter: | 1.4-3 / 2-4 / 3-8 | Warranty: | 1 Year |
| After-sales: | Engineers Available To Service Machinery Overseas | Voltage: | 380v |
| High Light: | steel grating welding machine,automatic wire mesh machine |
||

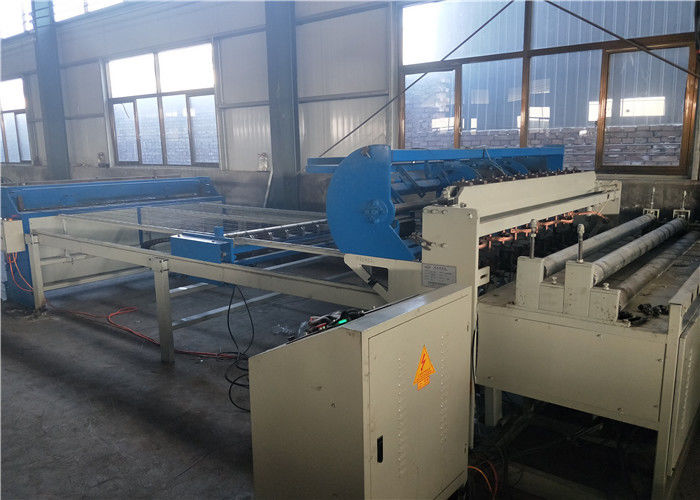

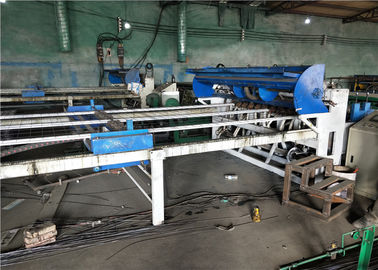

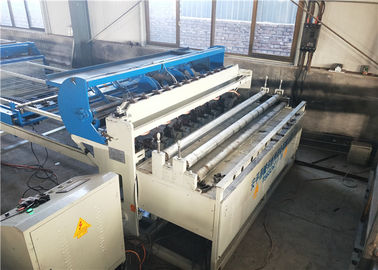

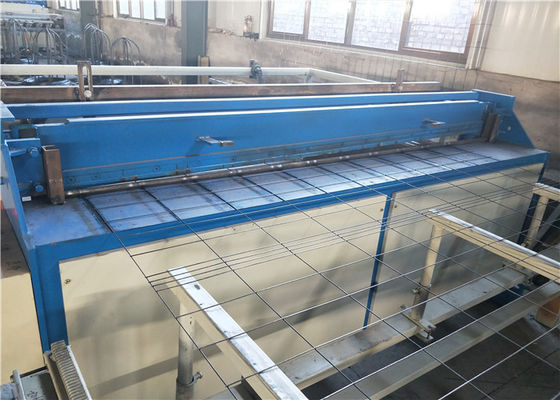

Automatic Wire Mesh Welding Machine Making Building Mesh / Fence Mesh
Description
automatic wire mesh welding machine is complete equipment for welding wire mesh, which is manufactured by AWM based on learning foreign advanced experiences and advanced technologies in addition to actual production demands in the international market. It has many favorable features, such as high output, high precision, easy modification, low operation failure rate, strong capability in energy saving, low consumption, and high quality.
Features
1. International famous trademarks are selected for key driving parts, actuators, and electric/pneumatic components; the life cycle is long, and the precision is high.
Less sparks and low noise during the welding process;
2. Easy operation and simple maintenance;
3. The entirety type foundation for whole machine is easy to install.
4. Reasonable equipment layout and beautiful appearance;
5. Widely used in railway construction projects and civil construction projects and Field Fence.
parameter
| Welding speed | 70-100imes/min |
| Width range of mesh | ≤2500mm |
| Length range of mesh | ≥50mm |
| Longitudinal wire spacing | 300≥X≥50mm mechanical adjustment |
| Wire diameter | 1.4-3 / 2-4 / 3-8mm |
| Number of max.welding spot | 51pcs/row |
| Line wire feeding method | pre-cut/feeding by hand |
| Cross wire feeding method | pre-cut/auto feeding |
| Control method | PLC programming control,servo stepper system |
| Main power | 5.5kw(frequency conversion) |
| Rated frequency | 50HZ(can be customized to the practical environment ) |
| Supply voltage | 380V(can be customized to the practical environment) |
After-sales Service
1. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer’s factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions.
Factory
Our factory has been established for seven years but we have 17 years of experience. Our main products are:
Reinforcing mesh welding machine, Fence mesh welding machine, Roll mesh welding machine, Chicken cage welding machine, Automatic welded mesh machine, Wire straightening and cutting machine.
