Railway Mesh / Construction Mesh Welding Machine High Speed Mesh Cutting System

China Railway Mesh / Construction Mesh Welding Machine High Speed Mesh Cutting System supplier
Railway Mesh / Construction Mesh Welding Machine High Speed Mesh Cutting System supplier Railway Mesh / Construction Mesh Welding Machine High Speed Mesh Cutting System supplier Railway Mesh / Construction Mesh Welding Machine High Speed Mesh Cutting System supplier Railway Mesh / Construction Mesh Welding Machine High Speed Mesh Cutting System supplier

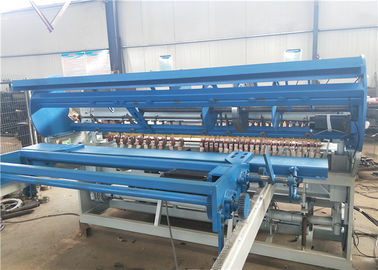

Large Image :  Railway Mesh / Construction Mesh Welding Machine High Speed Mesh Cutting System

Product Details:

Place of Origin: Hebei China
Brand Name: Chengke
Certification: ISO
Model Number: CK - CM - 2500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: 1.Main machine is in nude package. 2.Spare parts and control cabinet are packed with wooden box.
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 Sets
Contact Now
Detailed Product Description
Wire Diameter: 3-6mm Voltage: 380v
Product Name: Storage Mesh Welding Machine After-sales: Engineers Available To Service Machinery Overseas
Warranty: 1 Year Speed: 50-80Times/min

Construction Mesh Welding Machine / Storage Mesh Welding Machine





Description



1. Control system:Japan Panasonic intelligent PLC.

2. Touch screen: Weiview
3. Low-voltage apparatus :Schneider. Variable-frequency drive:Delta
4. Brake clutch motor connect the pricipal axis directely, stronger power.
5. Cross wire feeding: Step hopper. Longitude wire feeding:Manually.
6. Mesh pulling:Panasonic servo motor,great power and precision.

7. Transformer cooling:Water cooling. Electrodes cooling: Water cooling, very efficient.



Features



1. Reasonable design, mature technology, simple operation, wide range of applications.
2 original products are used big brands, customers are easy to buy replacement.
3. Can be made according to the needs of users, follow-up processing easier, faster production.
4. Using rack and pinion drive, transmission efficiency.
5. splash small, low burn marks, improve the appearance of the net panel.



parameters



Name Parament Unit
Wire diameter 3-6 mm
Width of mesh 2500 mm
Weft Wire Distance 50-200 mm
Warp Wire Distance 50-200 mm
welded points 48 points
Welding frequency 40-60 times/min
Weight 4.5 ton
Rated capacity 6*125 kva
Rated voltage 380/420 V
Need Worker 2-3 person
Warp Wire Straightened Cut Wire
Weft wire Straightened Cut Wire
Type of production pane



Usage



Water conservancy project, housing construction (floor plate, wall panel), bridge construction, highway construction, airport construction, railway construction, mine protection, which can be widely applied in construction industry.Fence netting (highway, rail road, mountain surrounding and stadium), fence mesh and the production of other protective fences.The production of bird cage, dog cage, various kinds of pet cages and all kinds of breeding cagesThe production of metal furniture, goods shelf, shopping cart and protective cover
