Multi Spot Construction Mesh Welding Machine 5.2T Durable Low Power Consumption

I'm Online Chat Now

Multi Spot Construction Mesh Welding Machine 5.2T Durable Low Power Consumption

China Multi Spot Construction Mesh Welding Machine 5.2T Durable Low Power Consumption supplier
Multi Spot Construction Mesh Welding Machine 5.2T Durable Low Power Consumption supplier Multi Spot Construction Mesh Welding Machine 5.2T Durable Low Power Consumption supplier Multi Spot Construction Mesh Welding Machine 5.2T Durable Low Power Consumption supplier Multi Spot Construction Mesh Welding Machine 5.2T Durable Low Power Consumption supplier

Large Image :  Multi Spot Construction Mesh Welding Machine 5.2T Durable Low Power Consumption

Product Details:

Place of Origin: Hebei China
Brand Name: Chengke
Certification: ISO
Model Number: CK - CM - 2500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: 1.Main machine is in nude package. 2.Spare parts and control cabinet are packed with wooden box.
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 Sets
Contact Now
Detailed Product Description
Color: Customer's Requirment Voltage: 380v
Product Name: Construction Multi Spot Wire Mesh Welding Machine After-sales: Engineers Available To Service Machinery Overseas
Warranty: 1 Year Speed: 50-80Times/min

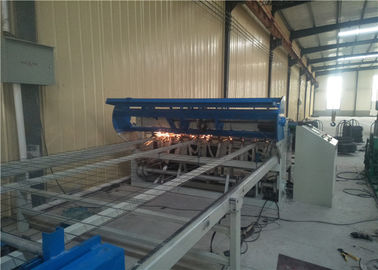

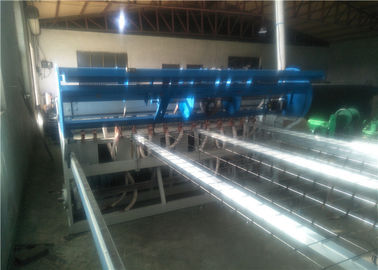

Automatic Control Construction Multi Spot Wire Mesh Welding Machine





Description



This machine adopts synchronous control technique, separate-control welding and welding time controlled by PLC digital programming system, once pressing, and separate welding. The input panel has two types touch screen and button, making operation more intelligent and rational. The welding power is electric power, weft fed from hopper driven by steeper motor, warp fed by brake motor driven car and the mesh pulled by the stepper motor driven car. The warp and the weft are both pre-straightened and pre-cut by the special straightening machine. The biggest advantage of this machine is that there is different weft spacing in the same mesh.



Features



1. Easy to operate: to finish one panel mesh, only need to turn on one auto-running button.

2. unique design of the cross wire input hopper: the machine will stop if there are no wires or abnormal happens, and it will run, when everything is OK.
3. welding stop function: when the wire welding, the main motor will stop temporarily, will continue to run after welding, insure the welding quality.
4. main motor servo control: with Delta VE high-end frequency concerter and PG card to make the main motor 0-1500r/min increase or decrease speed is 0.02s, zero speed, could 200% torque run, ensure the quick reaction of the machine.(motor with Omron encoder)
5. helical gear reducer: to ensure the machines high load run, and outside installation, easy for maintenance.
6. mesh output device: with Panasonic servo motor and planetary gear, ensure the system stability and end products precision.
7. automatic back to zero: the machine finished products, the mesh output device will automatically back to zero.
8. automatic turn on: with line wire input device, after finishing send the line wires, the machine will automatically turn on the machine.
9. failure display: when the machine fail, it will show on the touch screen(HMI) in english, very easy to maintain.
10. parameter set: all the parameter could be set on the touch screen in English.
11. all the spare parts are from famous brand at home and abroad.



parameters



Automatic Control Construction Multi Spot Wire Mesh Welding Machine
Wire diameter 3-8mm
Welding width Max.2500mm
Longitude wire space 100-300mm
Cross wire space Min.50mm
Mesh length Max.12000mm
Wire feeding way Pre-straightened & pre-cut
Welding speed 50-75 times/min

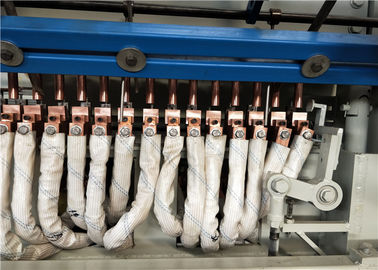

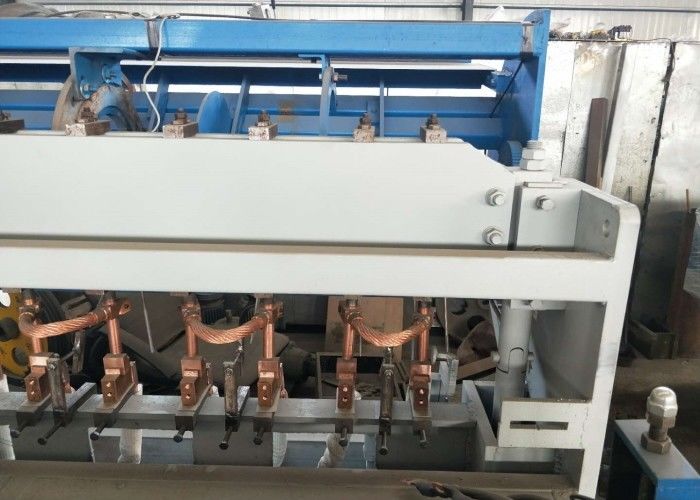

Welding electrodes Max.24pcs
Welding transformers 150kva*6pc
Weight 5.2T



Usage



Water conservancy project, housing construction (floor plate, wall panel), bridge construction, highway construction, airport construction, railway construction, mine protection, which can be widely applied in construction industry.Fence netting (highway, rail road, mountain surrounding and stadium), fence mesh and the production of other protective fences.The production of bird cage, dog cage, various kinds of pet cages and all kinds of breeding cagesThe production of metal furniture, goods shelf, shopping cart and protective cover
