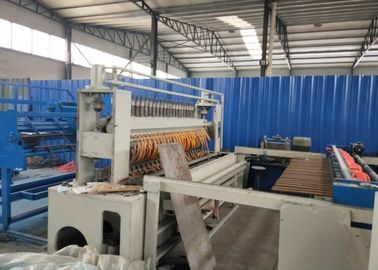

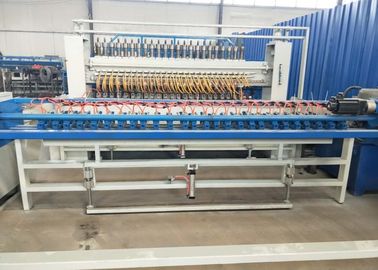

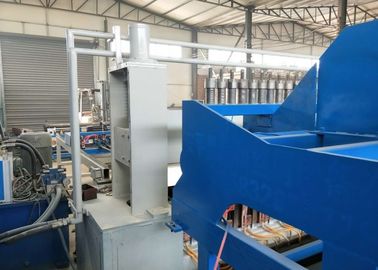

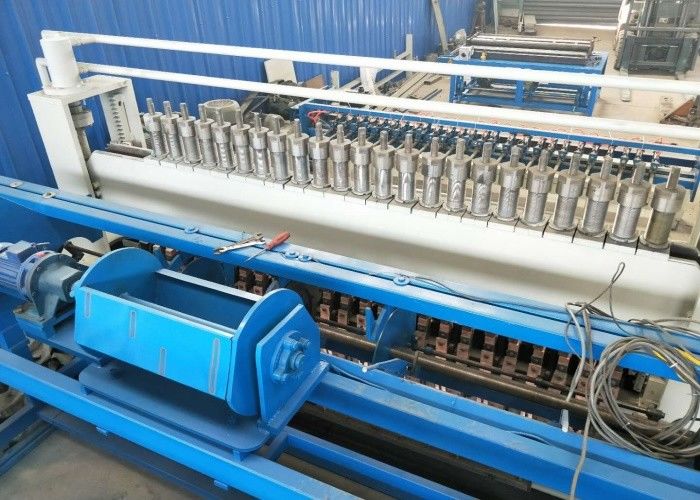

Fully Automatic Welded Wire Mesh Machine , Roof Mesh Panel Welding Machine

Large Image : Fully Automatic Welded Wire Mesh Machine , Roof Mesh Panel Welding Machine

Product Details:

Place of Origin:	Hebei China
Brand Name:	Chengke
Certification:	ISO
Model Number:	CK - CM - 2500Q

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	1.Main machine is in nude package. 2.Spare parts and control cabinet are packed with wooden box.
Delivery Time:	15 Work Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	25 Sets

Contact Now

Detailed Product Description

Color:	Customer's Requirment	Voltage:	380v
Product Name:	Automatic Construction Mesh Resistance Wire Mesh Welding Machine	After-sales:	Engineers Available To Service Machinery Overseas
Warranty:	1 Year	Speed:	50-80Times/min
High Light:	wire mesh weaving machine , wire netting machine

Automatic Construction Mesh Resistance Wire Mesh Welding Machine

Description

1. this machine adopts synchronous control technique ,both welding time and cent-control welding is supervised by IPC.

2. it adopts modularization design, so it is easy to improve the machine,s function and feature.

3. save time to add wires and save labor to operate.

4. firm welding ,little noise,high speed ,smaller investment,lower maintainence.

Features

1. Easy to operate: to finish one panel mesh, only need to turn on one auto-running button.

2. unique design of the cross wire input hopper: the machine will stop if there are no wires or abnormal happens, and it will run, when everything is OK.

3. welding stop function: when the wire welding, the main motor will stop temporarily, will continue to run after welding, insure the welding quality.

4. main motor servo control: with Delta VE high-end frequency concerter and PG card to make the main motor 0-1500r/min increase or decrease speed is 0.02s, zero speed, could 200% torque run, ensure the quick reaction of the machine.(motor with Omron encoder)

5. helical gear reducer: to ensure the machines high load run, and outside installation, easy for maintenance.

6. mesh output device: with Panasonic servo motor and planetary gear, ensure the system stability and end products precision.

7. automatic back to zero: the machine finished products, the mesh output device will automatically back to zero.

8. automatic turn on: with line wire input device, after finishing send the line wires, the machine will automatically turn on the machine.

9. failure display: when the machine fail, it will show on the touch screen(HMI) in english, very easy to maintain.

10. parameter set: all the parameter could be set on the touch screen in English.

11. all the spare parts are from famous brand at home and abroad.

Usage

1. Water conservancy project, housing construction (floor plate, wall panel), bridge construction, highway construction, airport construction, railway construction, mine protection, which can be widely applied in construction industry.

2. Fence netting (highway, rail road, mountain surrounding and stadium), fence mesh and the production of other protective fences.

3. The production of bird cage, dog cage, various kinds of pet cages and all kinds of breeding cages

4. The production of metal furniture, goods shelf, shopping cart and protective cover

parameters

Automatic Galvanized Wire Building Square Hole Mesh Machine
Wire diameter	3-8mm
Welding width	Max.2500mm
Longitude wire space	100-300mm
Cross wire space	Min.50mm
Mesh length	Max.12000mm
Wire feeding way	Pre-straightened & pre-cut
Welding speed	50-75 times/min
Welding electrodes	Max.24pcs
Welding transformers	150kva*6pc
Weight	5.2T
