380v 150kva Construction Mesh Welding Machine Speed 50 - 80Times / Min High Standard

I'm Online Chat Now

380v 150kva Construction Mesh Welding Machine Speed 50 - 80Times / Min High Standard

China 380v 150kva Construction Mesh Welding Machine Speed 50 - 80Times / Min High Standard supplier
380v 150kva Construction Mesh Welding Machine Speed 50 - 80Times / Min High Standard supplier 380v 150kva Construction Mesh Welding Machine Speed 50 - 80Times / Min High Standard supplier 380v 150kva Construction Mesh Welding Machine Speed 50 - 80Times / Min High Standard supplier 380v 150kva Construction Mesh Welding Machine Speed 50 - 80Times / Min High Standard supplier

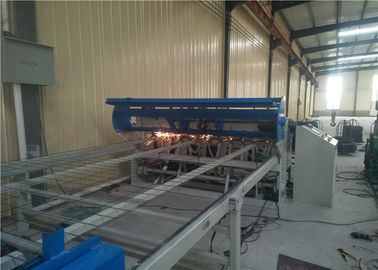

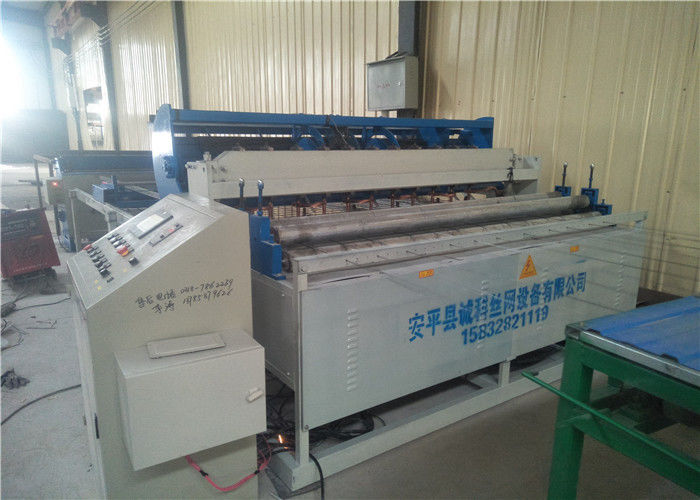

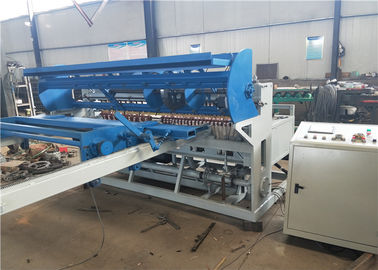

Large Image :  380v 150kva Construction Mesh Welding Machine Speed 50 - 80Times / Min High Standard

Product Details:

Place of Origin: Hebei China
Brand Name: Chengke
Certification: ISO
Model Number: CK - CM - 2500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: 1.Main machine is in nude package. 2.Spare parts and control cabinet are packed with wooden box.
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 Sets
Contact Now
Detailed Product Description
Color: Customer's Requirment Voltage: 380v
Product Name: Construction Mesh Welding Machine Servo Motor To Pull Mesh Repeated After-sales: Engineers Available To Service Machinery Overseas
Warranty: 1 Year Speed: 50-80Times/min

Construction Mesh Welding Machine Servo Motor To Pull Mesh Repeated





Description



1.Control system:Japan Panasonic intelligent PLC.

2.Touch screen: Weiview
3.Low-voltage apparatus :Schneider. Variable-frequency drive:Delta
4.Brake clutch motor connect the pricipal axis directely, stronger power.
5.Cross wire feeding: Step hopper. Longitude wire feeding:Manually.
6.Mesh pulling:Panasonic servo motor,great power and precision.

7.Transformer cooling:Water cooling. Electrodes cooling: Water cooling, very efficient.



Features



1. all the spare parts are from famous brand at home and abroad.

2.main motor servo control: with Delta VE high-end frequency concerter and PG card to make the main motor 0-1500r/min increase or decrease speed is 0.02s, zero speed, could 200% torque run, ensure the quick reaction of the machine.(motor with Omron encoder)

3. Easy to operate: to finish one panel mesh, only need to turn on one auto-running button.

4. unique design of the cross wire input hopper: the machine will stop if there are no wires or abnormal happens, and it will run, when everything is OK.
5. welding stop function: when the wire welding, the main motor will stop temporarily, will continue to run after welding, insure the welding quality.
6. helical gear reducer: to ensure the machines high load run, and outside installation, easy for maintenance.

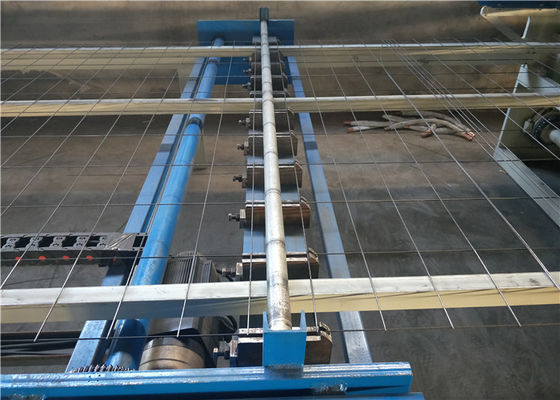

7. mesh output device: with Panasonic servo motor and planetary gear, ensure the system stability and end products precision.
8. automatic back to zero: the machine finished products, the mesh output device will automatically back to zero.
9. automatic turn on: with line wire input device, after finishing send the line wires, the machine will automatically turn on the machine.
10. failure display: when the machine fail, it will show on the touch screen(HMI) in english, very easy to maintain.
11. parameter set: all the parameter could be set on the touch screen in English.




parameters



 Construction Mesh Welding Machine Servo Motor To Pull Mesh Repeated
Wire diameter 3-8mm
Welding width Max.2500mm
Longitude wire space 100-300mm
Cross wire space Min.50mm
Mesh length Max.12000mm
Wire feeding way Pre-straightened & pre-cut
Welding speed 50-75 times/min
Welding electrodes Max.24pcs
Welding transformers 150kva*6pc
Weight 5.2T



Usage



Water conservancy project, housing construction (floor plate, wall panel), bridge construction, highway construction, airport construction, railway construction, mine protection, which can be widely applied in construction industry.Fence netting (highway, rail road, mountain surrounding and stadium), fence mesh and the production of other protective fences.The production of bird cage, dog cage, various kinds of pet cages and all kinds of breeding cagesThe production of metal furniture, goods shelf, shopping cart and protective cover
