Industrial Wire Mesh Fencing Machine 6.5T , Electrical Reinforcing Mesh Machine

China Industrial Wire Mesh Fencing Machine 6.5T , Electrical Reinforcing Mesh Machine supplier
Industrial Wire Mesh Fencing Machine 6.5T , Electrical Reinforcing Mesh Machine supplier Industrial Wire Mesh Fencing Machine 6.5T , Electrical Reinforcing Mesh Machine supplier Industrial Wire Mesh Fencing Machine 6.5T , Electrical Reinforcing Mesh Machine supplier Industrial Wire Mesh Fencing Machine 6.5T , Electrical Reinforcing Mesh Machine supplier

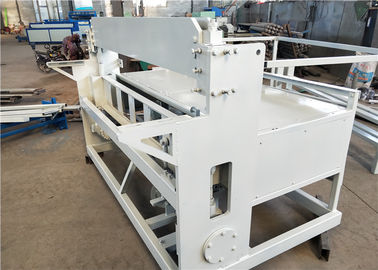

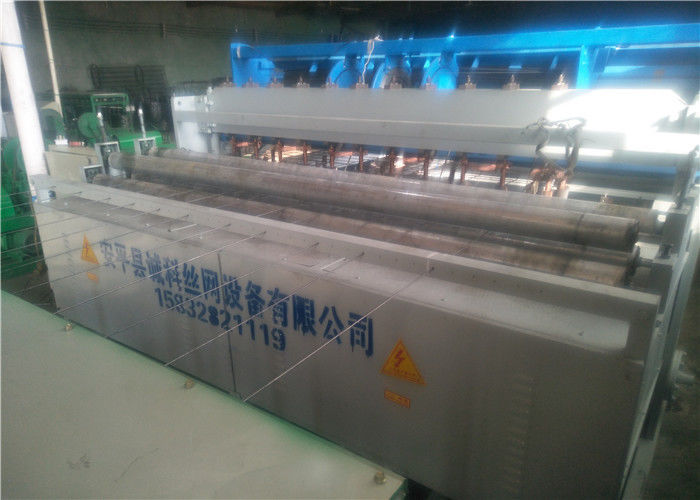

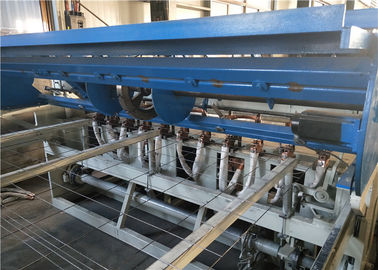

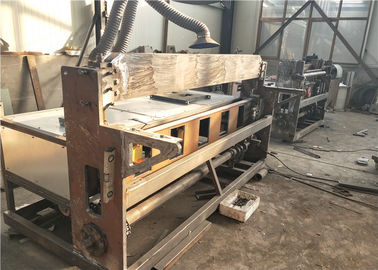

Large Image :  Industrial Wire Mesh Fencing Machine 6.5T , Electrical Reinforcing Mesh Machine

Product Details:

Place of Origin: Hebei China
Brand Name: Chengke
Certification: ISO
Model Number: CK - CM - 2500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: 1.Main machine is in nude package. 2.Spare parts and control cabinet are packed with wooden box.
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 Sets
Contact Now
Detailed Product Description
Color: Customer's Requirment Condition: New
Product Name: Construction Mesh Welding Machine After-sales: Engineers Available To Service Machinery Overseas
Warranty: 1 Year Control System: PLC

Servo Motor Pull Network Construction Mesh Welding Machine Steady Production





Description


1. Host framework structure, stable performance, the welding pressure is continuously adjustable, solid and perfect welding spot.
2. Integrated deceleration electromagnetic brake motors for power, inverter control, adjustable speed.
3. Modular design for the upper and lower electrodes, convenient to adjust the mesh.
4. The mesh pulling part driven by servo motor can be set a variety of weft space in the same mesh, pull the mesh continuously back and forth to extend the size of mesh, and use pneumatic clamping device to accurate weft spacing.
5. The warp feeding part driven by stepper motor can be fed the warps which a whole mesh needs when welding, so that the machine is very short interval of time.



Electric Cabinet



1. This machine is a professional equipment for mesh production.It adopts the digital control technique,apply to placing wire,welding,pulling mesh etc.The weft wire falling automatically and the line wire feeding manually.Using compressed air as the main power.It adopts the servo motor to pull the mesh.The accuracy can be controlled within 0.01mm and length of the mesh be controlled within 1mm.

2. The machine is equipment with LCD touch screen and operated convenient about the welding time,welding aperture,length of the wire mesh.

3. The advantage:advanced technology,strong adaptability,product yield,quality and stability.



parameters



Wire diameter 3-8mm Welding aperture

100-300mm

(adjustment)

Welding speed 40-50times/min Rated electrical power 125KVA*8
Width of mesh 300mm Length of the single slice 12m
Electric control cabinet 8 pieces Air pressure 0.6-0.8MPA
Grid error 0.10mm Length error of the grid 2mm/piece
Overall dimension 6800*3700*1800mm Weight 6.5T



Used



It is mainly used in large industrial workshop,large venues,factories flat,bridge deck pavement,road surface,tunnel lining,the subway engineering ,high way engineering,building engineering,airport construction etc.
