High Power Panel Welding Machine , Galvanized Mesh Automatic Wire Mesh Machine

I'm Online Chat Now

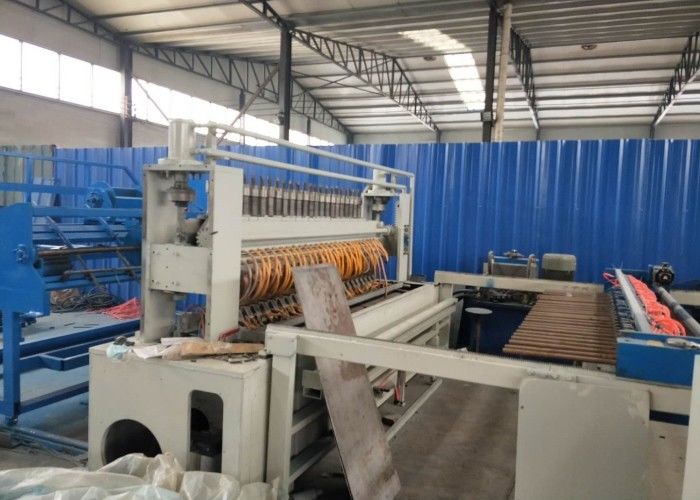

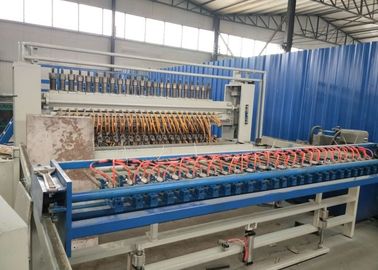

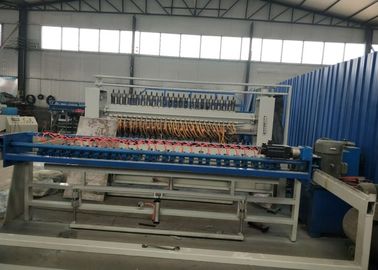

High Power Panel Welding Machine , Galvanized Mesh Automatic Wire Mesh Machine

China High Power Panel Welding Machine , Galvanized Mesh Automatic Wire Mesh Machine supplier
High Power Panel Welding Machine , Galvanized Mesh Automatic Wire Mesh Machine supplier High Power Panel Welding Machine , Galvanized Mesh Automatic Wire Mesh Machine supplier High Power Panel Welding Machine , Galvanized Mesh Automatic Wire Mesh Machine supplier High Power Panel Welding Machine , Galvanized Mesh Automatic Wire Mesh Machine supplier

Large Image :  High Power Panel Welding Machine , Galvanized Mesh Automatic Wire Mesh Machine

Product Details:

Place of Origin: Hebei China
Brand Name: Chengke
Certification: ISO
Model Number: CK - CM - 2500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: 1.Main machine is in nude package. 2.Spare parts and control cabinet are packed with wooden box.
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 Sets
Contact Now
Detailed Product Description
Color: Customer's Requirment Condition: New
Product Name: Construction Mesh Welding Machine After-sales: Engineers Available To Service Machinery Overseas
Warranty: 1 Year Control System: PLC

Semi-auto Construction Galvanized Mesh Welding Machine





Description



1. CNC wheel-step design to provide high accurate mesh grid

2. Electrode lift system to extend electrode life

3. Line wire loop and balance system to ensure wire mesh accuracy.

4. Line wire vertical straightening system to provide high quality

5. Unique high speed air cylinder used on welding electrode to provide high reliability.

6. Welding pressure steplessly adjustation to apply multiple wire diameter

7. High speed mesh cutting system,

8 Automatically high speed cross wire feeding system.



Electric Cabinet



1. The main frame is welded with thick steel plate and section bar, making the main structure more solid and compact.

2. All key parts are made of alloys with heat treatment applied to achieve a very high hardness. Furthermore, the special anti-corrosion treatment is applied for the surface to ensure smooth operation of the parts while preventing corrosion.

3. The welding products are of diversity and the machine can be set according to different production requirements of various kinds, bring flexibility and versatility for customers.

4. The welding adopts new-type high-efficiency welding transformer, which is much more efficient and can make the welding spot more solid compared with traditional transformer.

5. The electric appliances and pneumatic components are all adopt famous brand from foreign countries.

6. Fool-style operation, no matter what kind of operation personnel can easily operate it.

7. About the mesh flatness, this production line adopts the unique welding craft and sophisticated welding control system as well as high-quality copper-cobalt alloy electrodes with special shape, all of which can ensure the flatness of mesh.



parameters



Semi-auto Construction Galvanized Mesh Welding Machine
Wire diameter 3-8mm
Welding width Max.2500mm
Longitude wire space 100-300mm
Cross wire space Min.50mm
Mesh length Max.12000mm
Wire feeding way Pre-straightened & pre-cut
Welding speed 50-75 times/min
Welding electrodes Max.24pcs
Welding transformers 150kva*6pc
Weight 5.2T



Usage



Highway, railway and various function of protection. For construction which used for basis of high building, roof mesh, floor mesh. It is also widely used in agriculture and poultry mesh, farming mesh and so on.
