Airport Security Construction Mesh Welding Machine Sturdy Structure Long Service Life

I'm Online Chat Now

Airport Security Construction Mesh Welding Machine Sturdy Structure Long Service Life

China Airport Security Construction Mesh Welding Machine Sturdy Structure Long Service Life supplier
Airport Security Construction Mesh Welding Machine Sturdy Structure Long Service Life supplier Airport Security Construction Mesh Welding Machine Sturdy Structure Long Service Life supplier Airport Security Construction Mesh Welding Machine Sturdy Structure Long Service Life supplier Airport Security Construction Mesh Welding Machine Sturdy Structure Long Service Life supplier

Large Image :  Airport Security Construction Mesh Welding Machine Sturdy Structure Long Service Life

Product Details:

Place of Origin: Hebei China
Brand Name: Chengke
Certification: ISO
Model Number: CK - CM - 2500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set

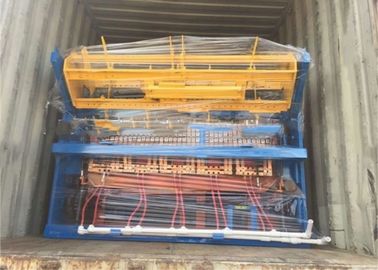

Packaging Details: 1.Main machine is in nude package. 2.Spare parts and control cabinet are packed with wooden box.
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 Sets
Contact Now
Detailed Product Description
Color: Customer's Requirment Condition: New
Product Name: Construction Mesh Welding Machine After-sales: Engineers Available To Service Machinery Overseas
Warranty: 1 Year Control System: PLC

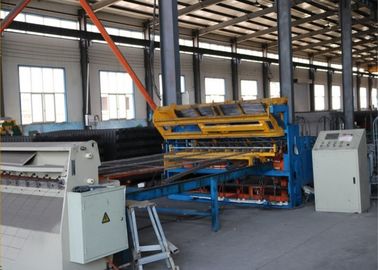

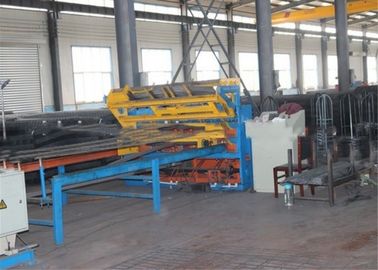

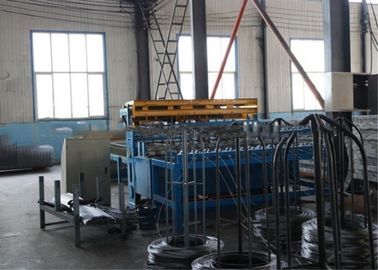

Construction Mesh Welding Machine For Making Building Construction Wire Mesh





Description


1. Host framework structure, stable performance, the welding pressure is continuously adjustable, solid and perfect welding spot.
2. Integrated deceleration electromagnetic brake motors for power, inverter control, adjustable speed.
3. Modular design for the upper and lower electrodes, convenient to adjust the mesh.
4. The mesh pulling part driven by servo motor can be set a variety of weft space in the same mesh, pull the mesh continuously back and forth to extend the size of mesh, and use pneumatic clamping device to accurate weft spacing.
5. The warp feeding part driven by stepper motor can be fed the warps which a whole mesh needs when welding, so that the machine is very short interval of time.



Electric Cabinet



This machine adopts synchronous control technique. The center-control and welding time are composed of PLC.The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, welding repeatedly.The longitude wires and cross wire distance can be adjusted by inputing the data you want. The greatest advantage is that you can adjust the distance weft wire at random on the same piece of wire mesh sheet.



parameters



Wire diameter 3-8mm
Welding width Max.2500mm
Longitude wire space 100-300mm
Cross wire space Min.50mm
Mesh length Max.12000mm
Wire feeding way Pre-straightened & pre-cut
Welding speed 50-75 times/min
Welding electrodes Max.24pcs
Welding transformers 150kva*6pc
Weight 5.2T



Usage



Highway, railway and various function of protection. For construction which used for basis of high building, roof mesh, floor mesh. It is also widely used in agriculture and poultry mesh, farming mesh and so on.
