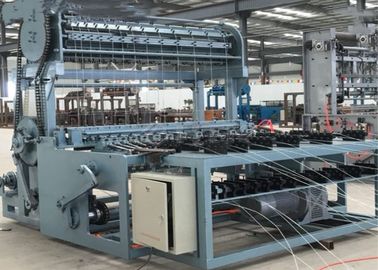

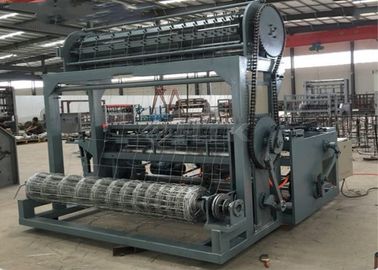

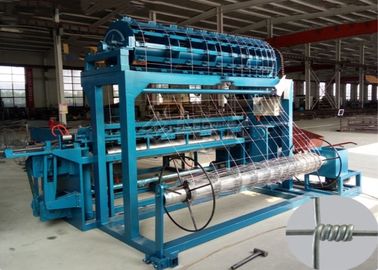

Horse Rail Grassland Fence Machine Production Capacity 400m / H Stable Performance

I'm Online Chat Now

Horse Rail Grassland Fence Machine Production Capacity 400m / H Stable Performance

China Horse Rail Grassland Fence Machine Production Capacity 400m / H Stable Performance supplier
Horse Rail Grassland Fence Machine Production Capacity 400m / H Stable Performance supplier Horse Rail Grassland Fence Machine Production Capacity 400m / H Stable Performance supplier Horse Rail Grassland Fence Machine Production Capacity 400m / H Stable Performance supplier Horse Rail Grassland Fence Machine Production Capacity 400m / H Stable Performance supplier

Large Image :  Horse Rail Grassland Fence Machine Production Capacity 400m / H Stable Performance

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-GF

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Product Name: Cattle Fence Machine Color: Customer Requirements
Wire Diameter: 1.9-2.5 Mm Edge Diameter: 2.0-3.5 Mm
After-sales: Overseas Service Provided Condition: New

Grassland Fence Machine / Hinge joint knot weaving field fence machine / cattle fence machine





presentation



1. Install:The machine need not install the anchor bolt, only need to put on the ground of plant. it is easy to install. we will send the specification to you.

2. Adjust: All the debugging working will be done in factory manufacture by our engineers.

3. Production capacity: 400m/h

4. Width: 1.0-2.4m

5. The machine's power: 5.5kw, 7.5kw, 11kw.

6. Accessories: wire bobbin, reel, tool box, etc. the accessories free offer to you.


advantages



Grassland fence made of high strength galvanized steel wire braided, high tensile strength large, can withstand violent impact cattle, horses, sheep and other livestock, safe and reliable.Steel wire, galvanized surround surface, other parts are rust and corrosion measures taken, can adapt to harsh working conditions, life expectancy up to 20 years.braid weft take rolling wave technology, enhancing the elasticity and buffering function, can adapt to thermal expansion and contraction of the deformation, so that fence always keep up tight state.Simple structure, easy maintenance, short construction period, small size, light weight, easy transportation and installation, air and light does not affect the landscape.



Parameters



Mesh Width
1.8m,2m,2.5m etc as requirement.
Mesh Length
Max. 100m
Step
50mm 100mm 150mm
Side Wire Diameter
1.8mm - 3.5mm



Warp Wire Diameter
1.8mm - 3.0mm
Weft Wire Diameter
1.8mm - 2.5mm
Warp Wire Mesh Size
Regular size : 89+ 89+ 102+ 114+ 127+ 140+ 152+ 178+ 203+ 203+ 203+ 203+ 229
Others size : 50mm - 200mm
Weft Wire Mesh Size
100mm, 150mm, 200mm, 250mm, 300mm
Motor Power
7.5KW
Voltage
380V/50HZ or as customised



used



Zoo fence Construction site fences backyard birds slope greening landscape with a net, a wildlife park grassland pasture and other places of grazing in captivity, especially applied in the pasture fence project, for a rotational grazing grassland protection, can play an important role, can also be used for rare flowers The isolation protection forest planting zone.
