Farm And Ranch Grassland Fence Machine Speed 45 - 60 Times / Min High Output

I'm Online Chat Now

Farm And Ranch Grassland Fence Machine Speed 45 - 60 Times / Min High Output

China Farm And Ranch Grassland Fence Machine Speed 45 - 60 Times / Min High Output supplier
Farm And Ranch Grassland Fence Machine Speed 45 - 60 Times / Min High Output supplier Farm And Ranch Grassland Fence Machine Speed 45 - 60 Times / Min High Output supplier Farm And Ranch Grassland Fence Machine Speed 45 - 60 Times / Min High Output supplier Farm And Ranch Grassland Fence Machine Speed 45 - 60 Times / Min High Output supplier

Large Image :  Farm And Ranch Grassland Fence Machine Speed 45 - 60 Times / Min High Output

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-GF

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Product Name: Automatic Galvanized Fixed Knot Deer Fence Farm And Ranch Fence Machine Speed: 45-60 Times/min
Wire Diameter: 1.8-3.0 Mm Length: 50m,100mm,200m
After-sales: Overseas Service Provided Voltage: 380 V 50 Hz
High Light:

cattle fence machine

,

automatic chain link fence machine

Automatic Galvanized Fixed Knot Deer Fence Farm And Ranch Fence Machine


presentation

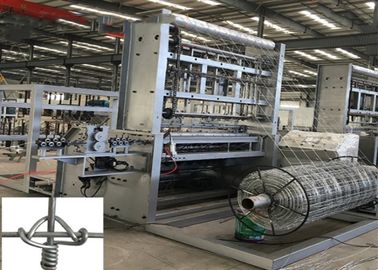

This is a new model machine developed by this company. It can weave the weft and warp wire automatically together to form the ranch fences. The end products enjoy innovative structure, firm and precise weaving. The production capacity is 150m/h. This machine offers reliable property.

1, capacity: 150m/hour

2, power: 5.5kw, 380v

3, size: 2800 x3200 x2400mm

4, weight: 3500kgs

5, width:1650mm(adjustable), length: 50m, 100m( adjustable)

6, wire diameter; top/bottom wire: 1.9-3.5mm, innter wire: 1.8-2.5mm

7, mesh:horizontal space: 10-20cm, vertical space:5-60cm


Parameters



Automatic Galvanized Fixed Knot Deer Fence Farm And Ranch Fence Machine
Production specification CY-A CY-B CY-C
Power 5.5KW 7.5KW 7.5KW
Speed ≤45knock/min ≤45knock/min ≤45knock/min
Wire diameter 1.9mm-2.5mm 1.9mm-2.5mm 1.9mm-2.5mm
Top/bottom diameter 2.0mm-3.5mm 2.0mm-3.5mm 2.0mm-3.5mm
Voltage 380V-3P-50HZ 380V-3P-50HZ 380V-3P-50HZ
Weight 3.5T 3.8T 4.0T
Overall dimension 2.8 x 3.2 x 2.4(M) 3.3 x 3.2 x 2.4(M) 3.4 x 3.2x 2.4(M)



other machines



Reinforced mesh mach
Welded wire mesh machine
Animal cages welding machine
Brick mesh welding machi
Fence mesh welding machine
Construction mesh welding machine
Spot welding machine
Wire straightening machine
Wire drawing machine
Barbed wire machine
Rebar bending machine
Chain link fence machine
Galvanizing equipment
grassland fence machine



After-sale Service

1. Warranty: One Year.
2. Enough spare parts of machines could be supplied.
3. Factory Own Designing and Inspection Team.
4. All machines were tested and adjusted before delivery.
5. Engineers avaliable to service machinery overseas: Worker-training, installation.etc.
6. 24 hours technical support by e-mail or calling service.
