5.5kw 380v Grassland Fence Machine 2800 X 3200 X 2400mm Low Power Consumption

I'm Online Chat Now

5.5kw 380v Grassland Fence Machine 2800 X 3200 X 2400mm Low Power Consumption

China 5.5kw 380v Grassland Fence Machine 2800 X 3200 X 2400mm Low Power Consumption supplier
5.5kw 380v Grassland Fence Machine 2800 X 3200 X 2400mm Low Power Consumption supplier 5.5kw 380v Grassland Fence Machine 2800 X 3200 X 2400mm Low Power Consumption supplier 5.5kw 380v Grassland Fence Machine 2800 X 3200 X 2400mm Low Power Consumption supplier 5.5kw 380v Grassland Fence Machine 2800 X 3200 X 2400mm Low Power Consumption supplier

Large Image :  5.5kw 380v Grassland Fence Machine 2800 X 3200 X 2400mm Low Power Consumption

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-GF

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Product Name: Galvanized Iron Wire Mesh Cattle / Horse / Deer / Field Fence Making Machine Speed: 45-60 Times/min
Wire Diameter: 1.8-3.0 Mm Color: Customer Requirements
After-sales: Overseas Service Provided Voltage: 380 V 50 Hz
High Light:

cattle fence machine

,

automatic chain link fence machine

Galvanized Iron Wire Mesh Cattle / Horse / Deer / Field Fence Making Machine​



presentation

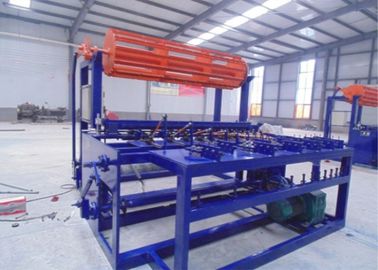

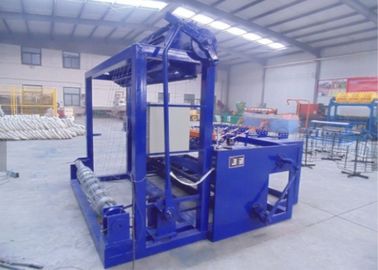

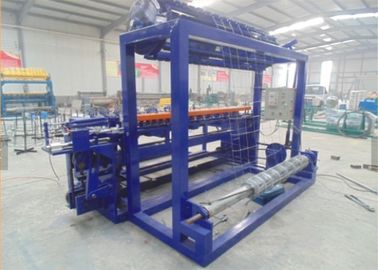

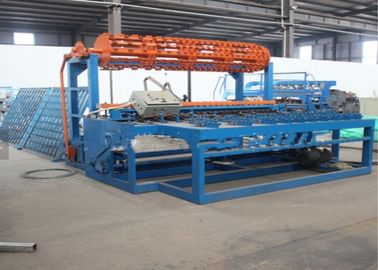

This is a new model machine developed by this company. It can weave the weft and warp wire automatically together to form the ranch fences. The end products enjoy innovative structure, firm and precise weaving. The production capacity is 150m/h. This machine offers reliable property.

1, capacity: 150m/hour

2, power: 5.5kw, 380v

3, size: 2800 x3200 x2400mm

4, weight: 3500kgs

5, width:1650mm(adjustable), length: 50m, 100m( adjustable)

6, wire diameter; top/bottom wire: 1.9-3.5mm, innter wire: 1.8-2.5mm

7, mesh:horizontal space: 10-20cm, vertical space:5-60cm



advantages



Grassland fence made of high strength galvanized steel wire braided, high tensile strength large, can withstand violent impact cattle, horses, sheep and other livestock, safe and reliable.Steel wire, galvanized surround surface, other parts are rust and corrosion measures taken, can adapt to harsh working conditions, life expectancy up to 20 years.braid weft take rolling wave technology, enhancing the elasticity and buffering function, can adapt to thermal expansion and contraction of the deformation, so that fence always keep up tight state.Simple structure, easy maintenance, short construction period, small size, light weight, easy transportation and installation, air and light does not affect the landscape.


Parameters



Automatic Galvanized Fixed Knot Deer Fence Farm And Ranch Fence Machine
Production specification CY-A CY-B CY-C
Power 5.5KW 7.5KW 7.5KW
Speed ≤45knock/min ≤45knock/min ≤45knock/min
Wire diameter 1.9mm-2.5mm 1.9mm-2.5mm 1.9mm-2.5mm
Top/bottom diameter 2.0mm-3.5mm 2.0mm-3.5mm 2.0mm-3.5mm
Voltage 380V-3P-50HZ 380V-3P-50HZ 380V-3P-50HZ
Weight 3.5T 3.8T 4.0T
Overall dimension 2.8 x 3.2 x 2.4(M) 3.3 x 3.2 x 2.4(M) 3.4 x 3.2x 2.4(M)
