High Speed Wire Mesh Making Machine , Grassland Field Chain Link Weaving Machine

I'm Online Chat Now

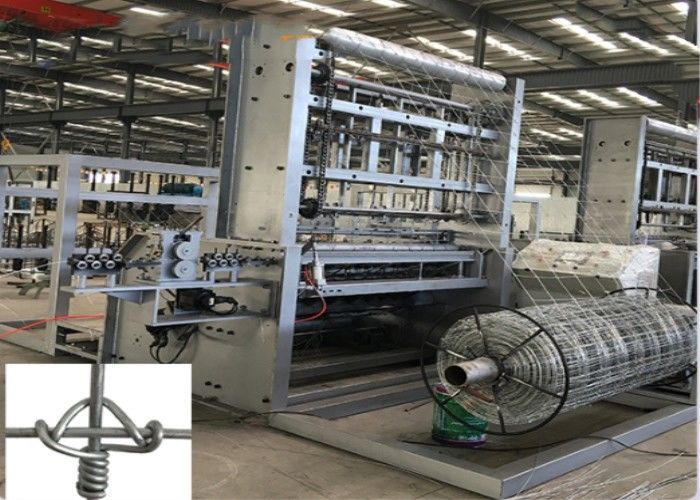

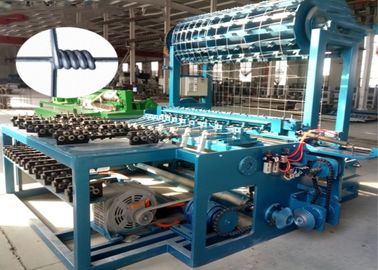

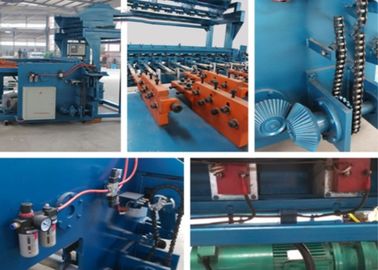

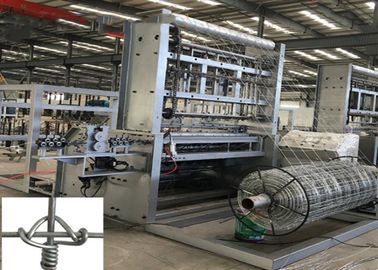

High Speed Wire Mesh Making Machine , Grassland Field Chain Link Weaving Machine

China High Speed Wire Mesh Making Machine , Grassland Field Chain Link Weaving Machine  supplier
High Speed Wire Mesh Making Machine , Grassland Field Chain Link Weaving Machine  supplier High Speed Wire Mesh Making Machine , Grassland Field Chain Link Weaving Machine  supplier High Speed Wire Mesh Making Machine , Grassland Field Chain Link Weaving Machine  supplier High Speed Wire Mesh Making Machine , Grassland Field Chain Link Weaving Machine  supplier

Large Image :  High Speed Wire Mesh Making Machine , Grassland Field Chain Link Weaving Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-GF

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Product Name: High Speed Grassland Field Fence Wire Mesh Weaving Machine Color: Customer Requirements
Wire Diameter: 1.9-2.5 Mm Edge Diameter: 2.0-3.5 Mm
After-sales: Overseas Service Provided Condition: New

High Speed Grassland Field Fence Wire Mesh Weaving Machine CE / ISO9001 Approved





presentation



1.It is used to weave wrap-around fence. It can weave the diameter wire and weft wire together automatically.

2.It uses sophisticated computer control, advanced production technology.

3.With novelty, high degree of automation, operational safety and reliability, easy operation, long life.

4.The machine is controlled automatically by NC. All parts work coordinately and smoothly. It is operated flexibly and inexpensive.

5.Products are neat and beautiful, diverse specifications.


advantages



Use computer control, with advanced technology, modeling novel, high degree of automation, so that easy to operation.Machine working stable.All spare parts choice best quality and fine processing, that makes machine working more stale and long service life.Flexible make different sizes grassland fence netting.Finish netting looks flat and beautiful.



Used



It use for make grass land fence widely use for grassland, field, pasture, mountains, natural environment protection, animal husbandry, poultry breeding and so on.



Parameters



High Speed Grassland Field Fence Wire Mesh Weaving Machine CE / ISO9001 Approved
Netting Width 1422mm 1652mm 1880mm 2000mm 2400mm
Motor 5.5kw 7.5Kw 7.5kw 7.5kw 11kw
Efficiency ≤45row/min ≤45row/min ≤45row/min ≤45row/min ≤45row/min
Twine diameter 1.9-2.5(mm) 1.9-2.5(mm) 1.9-2.5(mm) 1.9-2.5(mm) 1.9-2.5(mm)
Side wire diameter 2.0-3.5(mm) 2.0-3.5(mm) 2.0-3.5(mm) 2.0-3.5(mm) 2.0-3.5(mm)
Weight 3.5T 3.6T 3.8T 4.0T 4.5T
Warp number 11 12 13 18 23
Dimension 2.8*3.2*2.4(m) 3.0*3.2*2.4(m) 3.3*3.2*2.4(m) 3.4*3.2*2.4(m) 3.9*3.4*2.4(m)
Productivity 21600row/day (150m/h)
