Seam Spot Welding Machine Soldering Scars Straight For Making Kitchen Utensils

I'm Online Chat Now

Seam Spot Welding Machine Soldering Scars Straight For Making Kitchen Utensils

China Seam Spot Welding Machine Soldering Scars Straight For Making Kitchen Utensils supplier
Seam Spot Welding Machine Soldering Scars Straight For Making Kitchen Utensils supplier Seam Spot Welding Machine Soldering Scars Straight For Making Kitchen Utensils supplier Seam Spot Welding Machine Soldering Scars Straight For Making Kitchen Utensils supplier Seam Spot Welding Machine Soldering Scars Straight For Making Kitchen Utensils supplier

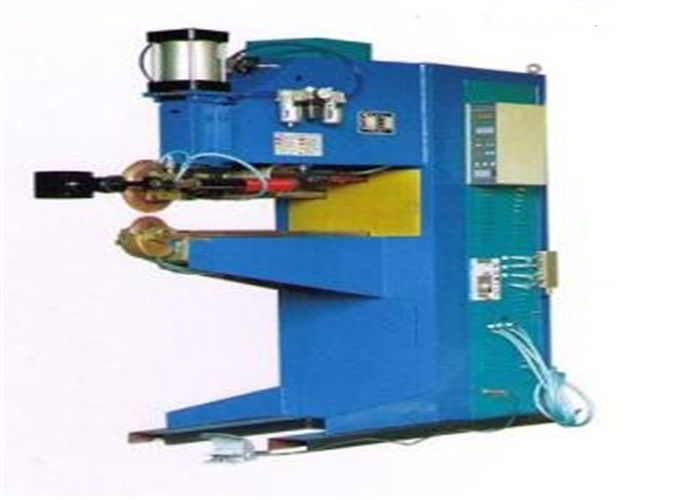

Large Image :  Seam Spot Welding Machine Soldering Scars Straight For Making Kitchen Utensils

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-SW-20Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Color: Customer's Requirment Voltage: 380V
Warranty: 1 Year Product Name: Free Of Soldering Scars Straight Seam Welding Machine
Condition: New After-sales: Overseas Service Provided

Free Of Soldering Scars Straight Seam Welding Machine Making Kitchen Utensils





description



Seam welder is refers to the welding assembly into lap or butt joint and placed between two electrodes of roller, roller pressure welding electrodes and the rotation, continuous or intermittent pulse transmission, forming a continuous weld resistance welding machine Also, so to speak, seam welding machine is a kind of evolution of the spot welding seam welding is widely used for sealing joint, and is also sometimes used for welding of ordinary the sealing sheet metal parts, is the thickness of the weld metal are usually in 0.1 ~ 2.5 mm



Features



1. There is two standard models: Transversal Seam Welding Model and Longitudinal Seam Welding Model.

2. Also one machine can be used as both transversal seam welding and longitudinal seam welding, only need to change the direction of upper seam wheel head and change the lower welding head and welding arm within minutes.

3. Driven one head and free the other head. The two seam wheels have the same tangential speed.

4. Widely used in hardware, appliances, automotive, manufacturing pots, can, fuel tank, tank producing and other metal manufacturing and processing industries



Specification



Item

Model

Rated
Capacity

Rated
Primary

Voltage

Rated
Frequency

Maximum
Short

Current

Electrode
Stroke
Welding
Speed
Electrode
Pressure

Motor
Power

Source

Motor
Power
KVA V Hz A mm M/min KN V W
CK-50 50 380 50/60 16000 50 0.6-4 2.5 3-380V 90
CK-75 75 380 50/60 19000 50 0.6-4 3.9 3-380V 150
CK-100 100 380 50/60 22000 50 0.6-4 4.7 3-380V 150
CK-150 150 380 50/60 29000 50 0.6-4 6.1 3-380V 150
CK-200 200 380 50/60 35000 50 0.6-4 6.1 3-380V 150



advantages


1. Punctual: Have your orders met with the latest delivery?

We are a manufacturer with so many advanced and new machines.

It ensures we have the ability to carry out the production schedual for punctual delivery.

2. 17-year production experience. We have over 17 years exprerience in this industry.

That means we can preview the problems for the orders and production.

Therefore, it will make sure to deduce the risk of bad situation to happen.



Packaging

1. The main body of the wire mesh welding machine will be packaged with plastic.
2. The anther parts of the wire mesh welding machine,will be packaged with cartons,they will be protected well.
3. If you have another package requirements,we will change it .
4. We will supply the best package for you.
