Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Input Voltage: | 380V |
|---|---|---|---|
| Power: | 100KVA | Color: | Blue,white |
| After-sales: | Overseas Service Provided | Warranty: | 1 Year |
| High Light: | pneumatic spot welding machine,resistance spot welding equipment |
||

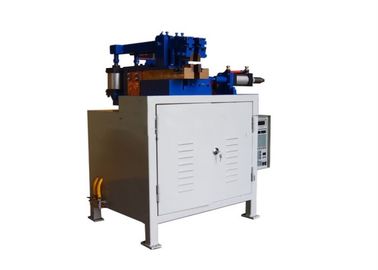

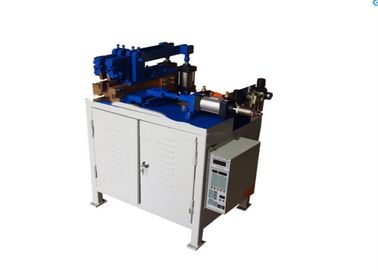

Steel Wire Resistance Butt Welding Machine Productivity Higher Welding Burrs Small
description
Mainly used for butt welding various metal material with welding section area less than 250mm,such as iron,wires,steel sheet,pipes,etc.
Features
AC Resistance Butt Welding is the welding method that the end surfaces of two parts are pressed
tightly,and the resistance heat is used to heat up the surfaces to the plasticized status,then the
upsetting force quickly press them together more tight again or without applying the upsetting
force pressure,just only hold on the welding pressure to complete the welding;
2.Compared to Flash Butt Welding,Resistance Welding is much easily to for worker use and
operate,the cost is much lower,welding productivity is also higher;
3.The welded joint is smooth.and the welding burrs are small;
4. The structure is designed compactly which is very easily to be adjusted to weld different parts.
The special butt welding control circuits ensure the welding quality;
Specification
| Machine Model |
Input Voltage (V) |
Input Power (KVA) |
Secondary Voltage (V) |
Welding Surface (mm2) |
Input Current (A) |
Power Regulate Range |
| CK-1KVA | 220V | 1 | 0.6-2 | 7 | 3 | 1-8Taps |
| CK-2KVA | 220V | 2 | 1-2 | 15 | 6 | 1-8Taps |
| CK-3KVA | 220V | 3 | 1.5-3 | 28 | 9 | 1-8Taps |
| CK-10KVA | 380V | 10 | 1.7-3.5 | 50 | 30 | 1-8Taps |
| CK-25KVA | 380V | 25 | 1.76-3.52 | 110 | 65 | 1-8Taps |
| CK-75KVA | 380V | 75 | 3.58-7.16 | 320 | 198 | 1-8Taps |
| CK-100KVA | 380V | 100 | 3.96-7.98 | 500 | 263 | 1-8Taps |
| CK-150KVA | 380V | 150 | 4.13-8.26 | 1250 | 395 | 1-8Taps |
advantages
1.Punctual: Have your orders met with the latest delivery?
We are a manufacturer with so many advanced and new machines.
It ensures we have the ability to carry out the production schedual for punctual delivery.
2.17-year production experience. We have over 17 years exprerience in this industry.
That means we can preview the problems for the orders and production.
Therefore, it will make sure to deduce the risk of bad situation to happen.
