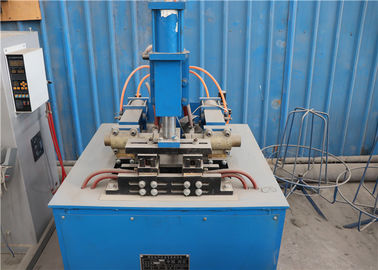

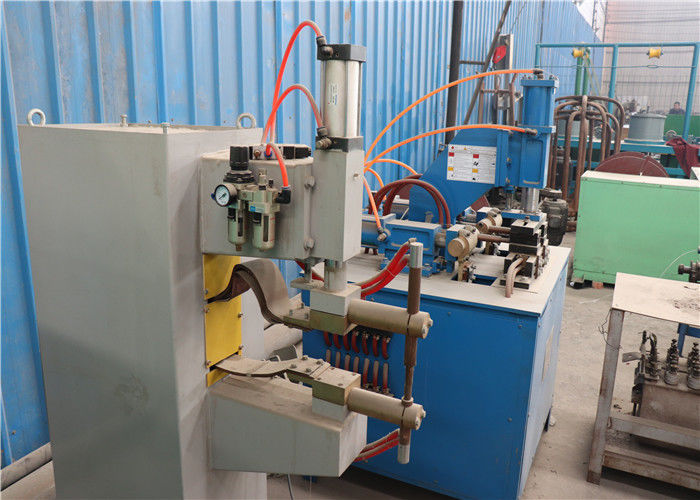

380V 14KVA Pneumatic Spot Welding Machine / Resistance Welder Power Automatic Adjustment

I'm Online Chat Now

380V 14KVA Pneumatic Spot Welding Machine / Resistance Welder Power Automatic Adjustment

China 380V 14KVA Pneumatic Spot Welding Machine / Resistance Welder Power Automatic Adjustment supplier
380V 14KVA Pneumatic Spot Welding Machine / Resistance Welder Power Automatic Adjustment supplier 380V 14KVA Pneumatic Spot Welding Machine / Resistance Welder Power Automatic Adjustment supplier 380V 14KVA Pneumatic Spot Welding Machine / Resistance Welder Power Automatic Adjustment supplier 380V 14KVA Pneumatic Spot Welding Machine / Resistance Welder Power Automatic Adjustment supplier

Large Image :  380V 14KVA Pneumatic Spot Welding Machine / Resistance Welder Power Automatic Adjustment

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-SW-20Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Condition: New Voltage: 380V
Warranty: 1 Year Product Name: Pneumatic Electric Resistance Spot Welding Machine
Color: Customer's Requirment After-sales: Overseas Service Provided

Resistance welder / Pedal Spot Welding Machine / Pneumatic Spot Welding Machine





description



Under the operation of transformer, pneumatic AC pulse spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.



Features



a. Three control functions: constant primary and secondary current, constant voltage;
b. Automatic adjustment of welding power and welding current;
c. Ensure the automatic cycle of each program segment of welding process in order to achieve complete automation;
d. When the current is too low, it will automatically electrify to conduct repair welding;
e. Be able to use the control panel to set parameters for different welding models directly. Convenient operation, easy adjustment;
f. Both single welding and continuous welding are available and each welding cycle has three welding conditions;
g. The intensity and time of welding current of each welding condition could be set separately. In the meantime, the current could be set to gradual up or down;
h. Pneumatic control (action output); the pneumatic control could be delayed;
i. Be able to store 9 types of welding models. Be able to select and adjust different welding models by choosing the number of models;
j. Silicon controlled adopts phase shift to trigger and the synchronous voltage is from the network voltage to ensure the silicon controlled and network will conduct synchronous phase shift trigger so as to achieve precise adjustment of the welding current and to meet the requirement of welding different materials;
k.When the network voltage fluctuates, the automatically compensation can make the welding current more stable. Thus, the welding quality could be guaranteed even though the network voltage is under bad situation.



Specification



Resistance welder / Pedal Spot Welding Machine / Pneumatic Spot Welding Machine
Model CK-Q CK-W CK-E
Input Voltage/Frequency 1~380V 50/60Hz
rated input capacity 14KVA 16KVA 35KVA
Electrode arm length 330mm 380mm 380mm
Welding plate thickness ≤2+2 ≤2.5+2.5 ≤3+3
Welding rod diameter ≤φ3+φ3 ≤φ4+φ4 ≤φ5+φ5
Duty cycle 35% 35% 35%
Weight 100kg 138kg 160kg



Used



Widely applied to iron wire products, hardware decorative lighting, kitchen utensils, automobile industry, small household appliances, small hardware, etc.
