380V 65KVA Pneumatic Spot Welding Machine DC / AC Long Arm For Making Grill Grid

I'm Online Chat Now

380V 65KVA Pneumatic Spot Welding Machine DC / AC Long Arm For Making Grill Grid

China 380V 65KVA Pneumatic Spot Welding Machine DC / AC Long Arm For Making Grill Grid supplier
380V 65KVA Pneumatic Spot Welding Machine DC / AC Long Arm For Making Grill Grid supplier 380V 65KVA Pneumatic Spot Welding Machine DC / AC Long Arm For Making Grill Grid supplier 380V 65KVA Pneumatic Spot Welding Machine DC / AC Long Arm For Making Grill Grid supplier 380V 65KVA Pneumatic Spot Welding Machine DC / AC Long Arm For Making Grill Grid supplier

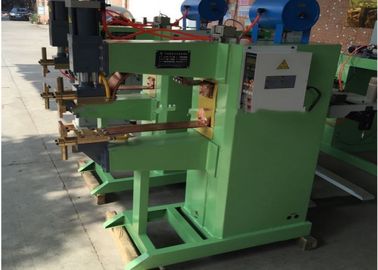

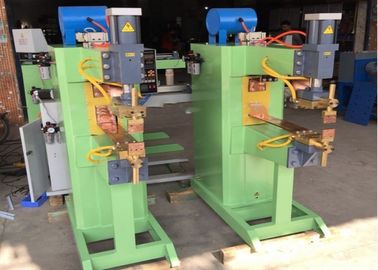

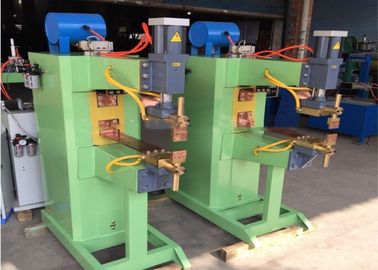

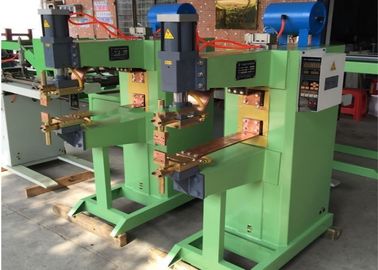

Large Image :  380V 65KVA Pneumatic Spot Welding Machine DC / AC Long Arm For Making Grill Grid

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-SW-20Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Rated Capacity: 65KVA Voltage: 380V
Warranty: 1 Year Product Name: Long Arm Pneumatic Row Welding Machine
Color: Customer's Requirment After-sales: Overseas Service Provided
High Light:

pneumatic spot welding machine

,

resistance spot welding equipment

DC / AC Long Arm Pneumatic Row Welding Machine For Making Grill Grid





description



1. Novel structure, special design, good rigidity.Adopt the high definition guidance institution,high staying quality,piston straight pole pressurizing, high speed welding, pressure steady.

2. Projection weld terrace is conveninet to customers to fix tongs,and weld with multi-aspect,multi-welding spot.

3. Microcomputer control system, twice section discharge, precise control of the welding time and welding current, easy to adjust.

4. High conduction magnetism silicon, secondary whole structure, output current is high, energy-saving and protect environment.

5. Water-transformer,water-controlled silicon, and water-electrode head what can improve the use life of equipment.

6. It is used to high quality welding wide range of wire type, plate type, heteromorphosis type cpper, aluminum, iron, stainless steel metal etc.



Features


(1) preloading electrode decreased to current through phase, to ensure that the electrode clamping workpiece, make appropriate pressure between the workpiece

(2) the welding current through the workpiece welding time, heat production formation of molten core

(3) keep time to cut off the welding current, electrode pressure to maintain nuclear solidification enough to melt strength electrode began to mention electrode

(4) the inactivity time again began to decline, begin the next welding cycle



Use



This type of welding machine widely used in hardware manufacturing, traffic tools, household items, cars. can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.



Specification



Model CK-35 CK-63 CK-100
rate capacity 35KVA 63KVA 100KVA
rate voltage input 380V 380V 380V
rate frequency 50HZ 50HZ 50HZ
Max.short-cut current 15KA 19KA 27KA
Max.welding input 79KVA 139KVA 207KVA
Duty cyclce 15% 15% 15%
Arm dimension 200*420mm 220*420mm 220*420MM
Max.pressing force 2500N 3900N 6100N
Cylinder stroke 60mm 60mm 60mm
Consumer of cooling water ≥3.0L/min ≥3.5L/min ≥4L/min
Electrode head Φ13mm Φ16mm Φ20mm
Electrode holder Φ20mm Φ25mm Φ30mm
Electrode arm Φ44mm Φ49mm Φ59m
Welding ability 2mm+2mm 3mm+3mm 4mm+4mm



advantages




1. Punctual: Have your orders met with the latest delivery?

We are a manufacturer with so many advanced and new machines.

It ensures we have the ability to carry out the production schedual for punctual delivery.

2. 17-year production experience. We have over 17 years exprerience in this industry.

That means we can preview the problems for the orders and production.

Therefore, it will make sure to deduce the risk of bad situation to happen.
