Pedal Type Industrial Spot Welder , Stainless Steel Resistance Spot Welding Equipment

I'm Online Chat Now

Pedal Type Industrial Spot Welder , Stainless Steel Resistance Spot Welding Equipment

China Pedal Type Industrial Spot Welder ,  Stainless Steel Resistance Spot Welding Equipment supplier
Pedal Type Industrial Spot Welder ,  Stainless Steel Resistance Spot Welding Equipment supplier Pedal Type Industrial Spot Welder ,  Stainless Steel Resistance Spot Welding Equipment supplier Pedal Type Industrial Spot Welder ,  Stainless Steel Resistance Spot Welding Equipment supplier Pedal Type Industrial Spot Welder ,  Stainless Steel Resistance Spot Welding Equipment supplier

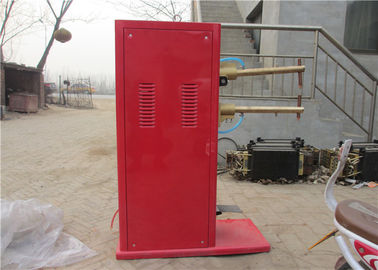

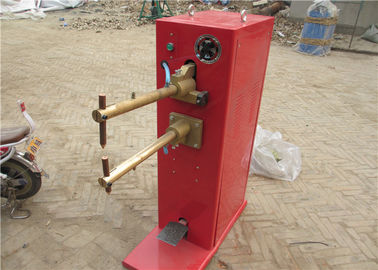

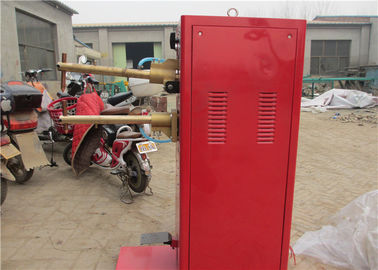

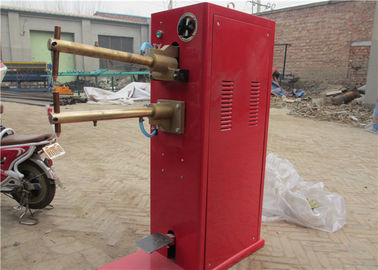

Large Image :  Pedal Type Industrial Spot Welder , Stainless Steel Resistance Spot Welding Equipment

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-SW-20Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Condition: New Voltage: 380V±15%
Warranty: 1 Year Product Name: Pedal Type Resistance Spot Welding Machine
Color: Customer's Requirment After-sales: Overseas Service Provided

Pedal Type Resistance Spot Welding Machine Of Low Carbon Steel / Stainless Steel





description



Spot welding department USES double double flow principle of welding work two electrode pressure makes the two layers of metal workpiece under the pressure of two electrodes formed certain contact resistance, and the welding current from the electrode through another electrode formed in the two point contact resistance moment of hot melt, and the welding current moment from another electrode along the two artifacts flow so they form a loop, and will not hurt the internal structure of the welding workpieces



Features


1. It adopts lever pressurization or pedal control. Lever pressurization can make electrode move vertically.
2. Upper and lower electrodes can be adjusted inclinedly and its electrode arms can make forward and backward movement.
3. It adopts automatic control integrated circuit of precision numerical control electron for precise control of welding time.
4. It is based on spot welding of low carbon steel, stainless steel and its pressing.
5. Applicable to household electric appliance; Suitable for medium and small enterprises' sheet metal processing.



Specification



Pedal Type Resistance Spot Welding Machine Of Low Carbon Steel / Stainless Steel
Model CK-Q CK-W CK-E
Input Voltage/Frequency 1~380V 50/60Hz
rated input capacity 14KVA 16KVA 35KVA
Electrode arm length 330mm 380mm 380mm
Welding plate thickness ≤2+2 ≤2.5+2.5 ≤3+3
Welding rod diameter ≤φ3+φ3 ≤φ4+φ4 ≤φ5+φ5
Duty cycle 35% 35% 35%
Weight 100kg 138kg 160kg



Use


Welding machine assembly of the appropriate electrode form and controller, to meet a variety of wire mesh basket products, steel mesh, pipe products such as processing and manufacturing. Can be carbon steel, stainless steel, galvanized steel and a variety of non-ferrous metal wire, pipe, sheet, screw and other spot welding and row welding.



advantages


1. Punctual: Have your orders met with the latest delivery?

We are a manufacturer with so many advanced and new machines.

It ensures we have the ability to carry out the production schedual for punctual delivery.

2. 17-year production experience. We have over 17 years exprerience in this industry.

That means we can preview the problems for the orders and production.

Therefore, it will make sure to deduce the risk of bad situation to happen.
