Firm Welding Welded Wire Mesh Machine , Fully Automatic Wave Brick Force Making Machine

I'm Online Chat Now

Firm Welding Welded Wire Mesh Machine , Fully Automatic Wave Brick Force Making Machine

China Firm Welding Welded Wire Mesh Machine , Fully Automatic Wave Brick Force Making Machine supplier
Firm Welding Welded Wire Mesh Machine , Fully Automatic Wave Brick Force Making Machine supplier Firm Welding Welded Wire Mesh Machine , Fully Automatic Wave Brick Force Making Machine supplier Firm Welding Welded Wire Mesh Machine , Fully Automatic Wave Brick Force Making Machine supplier Firm Welding Welded Wire Mesh Machine , Fully Automatic Wave Brick Force Making Machine supplier

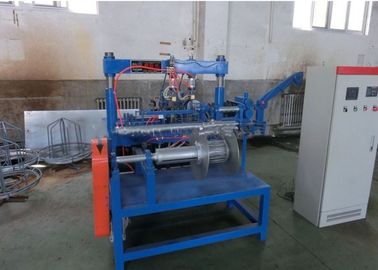

Large Image :  Firm Welding Welded Wire Mesh Machine , Fully Automatic Wave Brick Force Making Machine

Product Details:

Place of Origin: Hebei China
Brand Name: ChengKe
Certification: ISO
Model Number: CK-BM-780Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: NO
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, , Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: Fully Automatic Wave Type Mesh Welding Machine Mesh Width: 780 Mm
Wire Diameter: 1.5-3.0mm Welding Speed: 40-50times/min
Color: Customer Demand After Sale: Engineers Available To Service Overseas

Fully Automatic Wave Type Mesh Welding Machine For Making Brick Force Wire





description



This kind machine is used to make wire mesh for brick reinforcement and it is widely in Africa area. It is controlled by intergrated electric circuit. Not only welding speed is fast butalso it is easy to learn and operate.Cross wire is pre straightened and pre cut by wire straightening and cutting machine. Crosswire feeding device is driven by step motor which make the hole accurate. Line wire is in coiland straightened by wire straightening wheel. Line wire distance can be adjusted by moving the electrode and cross wire distance can be adjusted by operating the PLC panel. And themesh pulling device is also driven by step motor which make the aperture accurate.Both machine could produce three or four pieces of wire mesh at the same time.Each pieceof mesh have 8mm extra length at both side.The available wire is black wire or galvanized wire.Finished product can be in roll or in panel.



Features



1. wire dia:2-3 mm ,
the cross spacing : 57mm,75mm,230mm
the line spacing :300mm

2. wire dia:1.5-2.5mm
the cross spacing:115mm,230mm
the line spacing :300mm

Both machine could produce three pieces of wire mesh at the same time.Each piece of mesh have 8mm extra length at both side.
The available wire is black wire or galvanized wire.



Usage



Brick Force Wire is widely used in building cavity wall reinforcement Increase the elasticity To prevent wall cracks, it is a good building materials Be used for the foundation wall higher requirements of strength and stability of place and local stress place, have the effect of reinforcement in the brick and block, used in the reinforcement of the brick and block construction key points of the cement mortar in each, the brick and cement mortar to form an integral structure of a whole, the maximum stress and vibration absorption, excellent shock crack, is a good building materials



Specification



Fully Automatic Wave Type Mesh Welding Machine For Making Brick Force Wire
Number of electrodes 8 or 6
Max mesh width 780 mm
Wire diameter 1 . 5 - 3 . o mm
Cross wire space 75 , 115 , 150 , 230 mm
Line wire space 300 mm
Power capacity 160 KVA
Welding speed 30 - 40 nips/minute
Control system PLC control



Packaging



1. The main body of the wire mesh welding machine will be packaged with plastic.

2. The anther parts of the wire mesh welding machine,will be packaged with cartons,they will be protected well.

3. The spare parts of the wire mesh welding machine will be packaged in the wooden cases.

4. Only this type wire mesh welding machine will need a 20' container loading.

5. If you have another package requirements,we will change it .

6. We will supply the best package for you.
