Construction Brick Force Making Machine , High Efficiency Iron Net Making Machine

I'm Online Chat Now

Construction Brick Force Making Machine , High Efficiency Iron Net Making Machine

China Construction Brick Force Making Machine , High Efficiency Iron Net Making Machine supplier
Construction Brick Force Making Machine , High Efficiency Iron Net Making Machine supplier Construction Brick Force Making Machine , High Efficiency Iron Net Making Machine supplier Construction Brick Force Making Machine , High Efficiency Iron Net Making Machine supplier Construction Brick Force Making Machine , High Efficiency Iron Net Making Machine supplier

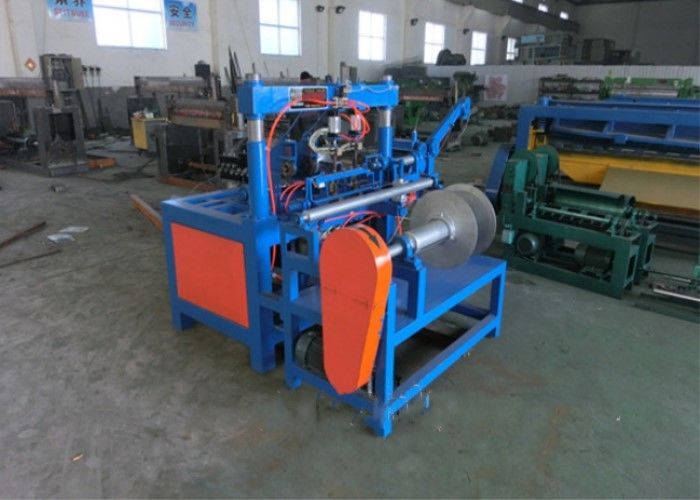

Large Image :  Construction Brick Force Making Machine , High Efficiency Iron Net Making Machine

Product Details:

Place of Origin: Hebei China
Brand Name: ChengKe
Certification: ISO
Model Number: CK-BM-780Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Packed according to international standard or as request
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, , Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Condition: New Warranty: 1 Year
Voltage: 380v 50hz After Sale: Engineers Available To Service Overseas
Product Name: Welding Forming Brick Belt Net Making Machine Color: Customer's Requirment
High Light:

wire net making machine

,

wire mesh knitting machines

Welding Forming Brick Belt Net Making Machine Welding Speed Fast Easy Operate





description



The machine can make the brick force for construction. The finished brick force is in rolls and

the machine can output three brick force rolls at the same time. It is easy to operate and

maintain. The brick force is used in the brickwork reinforcement. It can be black brick force or

galvanized brick force.

Brick Force masonry reinforcement is specified into projects by consulting engineers for its

cost and time saving properties.

Brick Force consists of two parallel wires joined by cross wires. The flattened profile of the

main wires allows for efficient lapping and ensures sufficient mortar cover to develop bond.



Features



1. Control system : intelligent PLCMitsubishi or Panasonic

2. Touch screen: Weinview

3. Eletrical components :Schneider

4. Pneumatic components:Japan SMC, more stable

5. Cross wire feeding step hopper ,longitude wire feeding :equipped with feeding car

6. mesh pulling :servo motor Siense

7. Line guide way:TBI or HIWIN



Specification



Wire diameter 1.5-2.5mm Welding power 75KVA
Welding aperture adjusted Application wall reinforcement
Width of mesh 1000mm Certification CE
Welding speed 50-60 times/min Warranty 1 year
Overall dimension 4500*2100*1400 Rated voltage 380V 3P 50HZ
Weight 2.0T MOQ 1 set



Usage



Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobilevehicles, big ships.



Packing



1 . The spare parts and control cabinet will be loaded in wooden box.
2 . The main machine is nude packing or plastic packing
