Concrete Building Brick Force Wire Making Machine Full Automatic 780 Mm Width

I'm Online Chat Now

Concrete Building Brick Force Wire Making Machine Full Automatic 780 Mm Width

China Concrete Building Brick Force Wire Making Machine Full Automatic 780 Mm Width supplier
Concrete Building Brick Force Wire Making Machine Full Automatic 780 Mm Width supplier Concrete Building Brick Force Wire Making Machine Full Automatic 780 Mm Width supplier Concrete Building Brick Force Wire Making Machine Full Automatic 780 Mm Width supplier Concrete Building Brick Force Wire Making Machine Full Automatic 780 Mm Width supplier

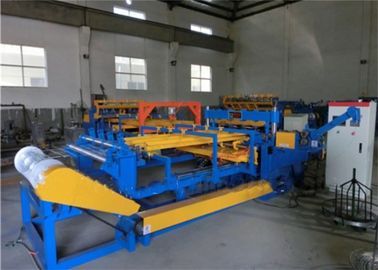

Large Image :  Concrete Building Brick Force Wire Making Machine Full Automatic 780 Mm Width

Product Details:

Place of Origin: Hebei China
Brand Name: ChengKe
Certification: ISO
Model Number: CK-BM-780Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Packed according to international standard or as request
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, , Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Mesh Width: 780 Mm Warranty: 1 Year
Voltage: 380v 50hz After Sale: Engineers Available To Service Overseas
Product Name: Automatic Concrete Building Brick Force Wire Mesh Welding Machine Color: Customer's Requirment

Automatic Concrete Building Brick Force Wire Mesh Welding Machine





description



1. This kind machine is used to make wire mesh for brick reinforcement and it is widely in
Africa area. It is controlled by intergrated electric circuit. Not only welding speed is fast but
also it is easy to learn and operate.

2. Cross wire is pre straightened and pre cut by wire straightening and cutting machine. Cross
wire feeding device is driven by step motor which make the hole accurate. Line wire is in coil
and straightened by wire straightening wheel. Line wire distance can be adjusted by moving
the electrode and cross wire distance can be adjusted by operating the PLC panel. And the
mesh pulling device is also driven by step motor which make the aperture accurate.

3. Both machine could produce three or four pieces of wire mesh at the same time.Each piece
of mesh have 8mm extra length at both side.

4. The available wire is black wire or galvanized wire.

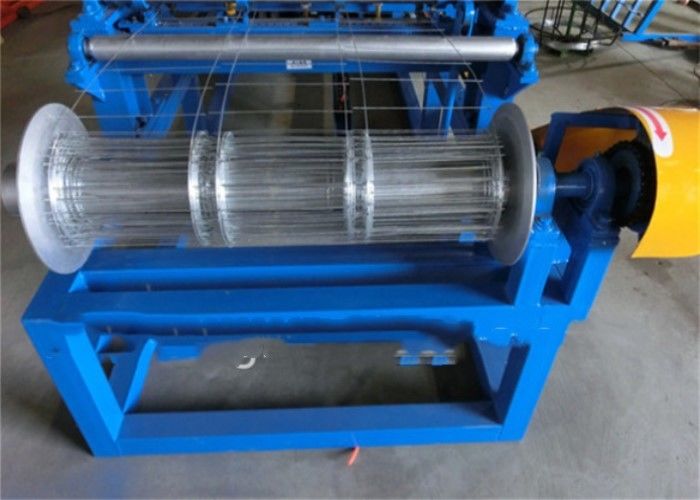

5. Finished product can be in roll or in panel.



Features



1.Control system : intelligent PLCMitsubishi or Panasonic

2.Touch screen: Weinview

3.Eletrical components :Schneider

4.Pneumatic components:Japan SMC, more stable

5.Cross wire feeding step hopper ,longitude wire feeding :equipped with feeding car

6.mesh pulling :servo motor Siense

7.Line guide way:TBI or HIWIN

.

Usage



Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobilevehicles, big ships.



Specification



Automatic Concrete Building Brick Force Wire Mesh Welding Machine
Number of electrodes 8 or 6
Max mesh width 780 mm
Wire diameter 1 . 5 - 3 . o mm
Cross wire space 75 , 115 , 150 , 230 mm
Line wire space 300 mm
Power capacity 160 KVA
Welding speed 30 - 40 nips/minute
Control system PLC control



Sincerely look forward to cooperate with you ! For more details about wire mesh welding machine, welcome to contact with us in any time ! We will fully committed to provide the best quality products and services.
