CNC Welding Brick Force Wire Making Machine 380v 50hz 75KVA High Frequency

I'm Online Chat Now

CNC Welding Brick Force Wire Making Machine 380v 50hz 75KVA High Frequency

China CNC Welding Brick Force Wire Making Machine 380v 50hz 75KVA High Frequency supplier
CNC Welding Brick Force Wire Making Machine 380v 50hz 75KVA High Frequency supplier CNC Welding Brick Force Wire Making Machine 380v 50hz 75KVA High Frequency supplier CNC Welding Brick Force Wire Making Machine 380v 50hz 75KVA High Frequency supplier CNC Welding Brick Force Wire Making Machine 380v 50hz 75KVA High Frequency supplier

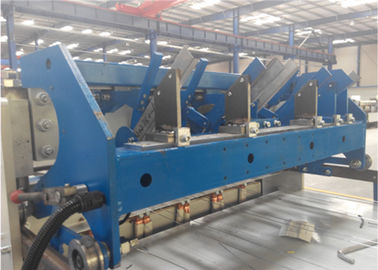

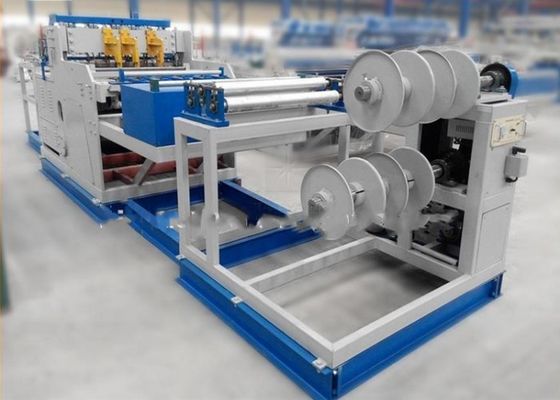

Large Image :  CNC Welding Brick Force Wire Making Machine 380v 50hz 75KVA High Frequency

Product Details:

Place of Origin: Hebei China
Brand Name: ChengKe
Certification: ISO
Model Number: CK-BM-780Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Packed according to international standard or as request
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, , Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Condition: New Warranty: 1 Year
Voltage: 380v 50hz After Sale: Engineers Available To Service Overseas
Product Name: High Frequency CNC Welding Forming Brick Belt Net Making Machine Color: 1.5-2.5mm

High Frequency CNC Welding Forming Brick Belt Net Making Machine Hole Size Precision





description



1. This kind concrete building brick force wire mesh welding machine is used to make wire mesh for brick reinforcement and it is widely in Africa area. It is controlled by intergrated electric circuit. Not only welding speed is fast but also it is easy to learn and operate.

2. Cross wire is pre straightened and pre cut by wire straightening and cutting machine. Cross wire feeding device is driven by step motor which make the hole accurate.

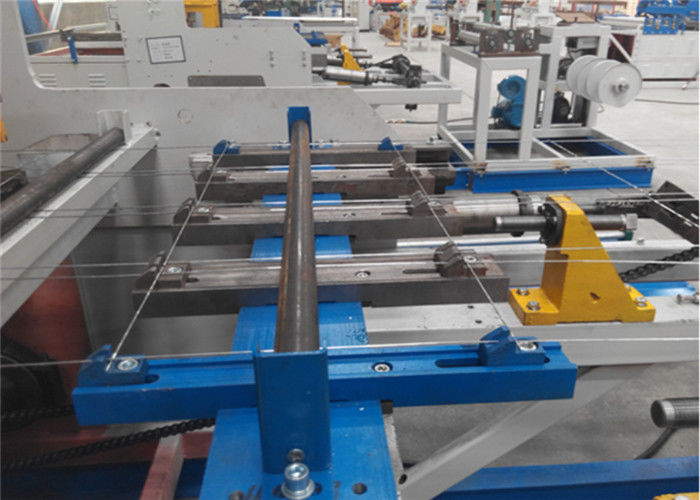

3. Line wire is in coil and straightened by wire straightening wheel. Line wire distance can be adjusted by moving the electrode and cross wire distance can be adjusted by operating the PLC panel. And the mesh pulling device is also driven by step motor which make the aperture accurate.

4. This machine could produce three or four pieces of wire mesh at the same time. Each piece of mesh have 8mm extra length at both side.

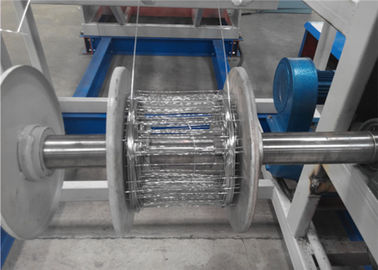

5. The available wire is black wire or galvanized wire. Finished product can be in roll or in panel.



Features



1. The main frame is welded with thick steel plate and section bar, making the main structure more solid and compact.

2. All key parts are made of alloys with heat treatment applied to achieve a very high hardness. Furthermore, the special anti-corrosion treatment is applied for the surface to ensure smooth operation of the parts while preventing corrosion.

3. The welding products are of diversity and the machine can be set according to different production requirements of various kinds, bring flexibility and versatility for customers.

4. The welding adopts new-type high-efficiency welding transformer, which is much more efficient and can make the welding spot more solid compared with traditional transformer.

5. The electric appliances and pneumatic components are all adopt famous brand from foreign countries.

6. Fool-style operation, no matter what kind of operation personnel can easily operate it.

7. About the mesh flatness, this production line adopts the unique welding craft and sophisticated welding control system as well as high-quality copper-cobalt alloy electrodes with special shape, all of which can ensure the flatness of mesh.



Usage



Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobilevehicles, big ships.



Specification



Wire diameter 1.5-2.5mm Welding power 75KVA
Welding aperture adjusted Application wall reinforcement
Width of mesh 1000mm Certification CE
Welding speed 50-60 times/min Warranty 1 year
Overall dimension 4500*2100*1400 Rated voltage 380V 3P 50HZ
Weight 2.0T MOQ 1 set



Packing



1 . The spare parts and control cabinet will be loaded in wooden box.
2 . The main machine is nude packing or plastic packing
