Product Details:
Payment & Shipping Terms:
|
| Product Name: | Brick Force Mesh Welding Machine | Mesh Width: | 780 Mm |
|---|---|---|---|
| Wire Diameter: | 1.5-2.5mm | Speed: | 45times/min |
| Voltage: | 380V | After Sale: | Engineers Available To Service Machinery Overseas |
| High Light: | wire net making machine,wire mesh knitting machines |
||

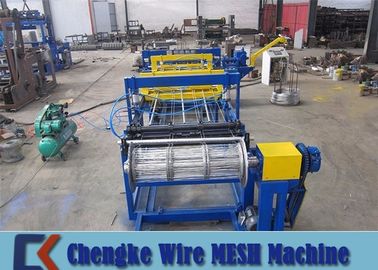

Applied To Wall Reinforcement Brick Force Mesh Welding Machine
description
The machine can make the brick force for construction. The finished brick force is in rolls and the machine can output three brick force rolls at the same time. It is easy to operate and maintain. The brick force is used in the brickwork reinforcement. It can be black brick force or galvanized brick force..
Features
1. This machine adopts synchronous control technique, both the welding time and cent-control welding is composed of digital and integrated electric.
2. This operation is accurate, it has stable fucntion, firm welded point and without welede track. Not only welding speed is fast but also it is easy to learn and operate.
3. The step motor controls fallen wefts structure and drawing materials are automatic
So it is even and accurate, the edge of mesh is ragular, it is unnecesary to slice the size.
4. Drawing mesh adopts the device with the elastic tension linkand fixing the mesh, it is easy to regulate mesh hole and mesh size is rather accurate, welding sperture could also adjust randomly within the range.
5. It is automatic to make mesh in pieces and in rolls.
Usage
Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobilevehicles, big ships.
Specification
| Iron Galvanized Mesh Panel Brick Force Roll Mesh Welding Machine | |
| Welding wire diameter | Φ1.6MM-Φ2.5MM |
| Space of cross wires | 50-400mm |
| Space of line wires | 250~300mm |
| welding width | 300mm |
| Seep of Welding | 45times/min |
| Nominal voltage | 380V 3phase 50HZ |
| Nominal power | 72KVA |
Service
Pre-Sales Service:
Inquiry and consulting support.
Sample testing support.
View our Factory.
Online visit
After-Sales Service:
Training how to install,operate and maintain the machine.
Engineers available to service machinery overseas.
One year gurantee for the whole machine.
Operation manual is availabl
Sincerely look forward to cooperate with you ! For more details about wire mesh welding machine, welcome to contact with us in any time ! We will fully committed to provide the best quality products and services.
