380V 72KVA Brick Force Wire Making Machine For Iron Galvanized Mesh Panel

I'm Online Chat Now

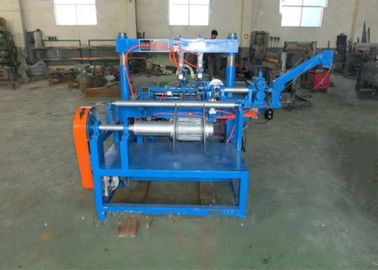

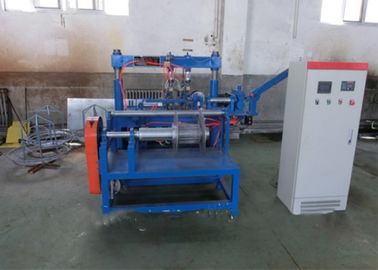

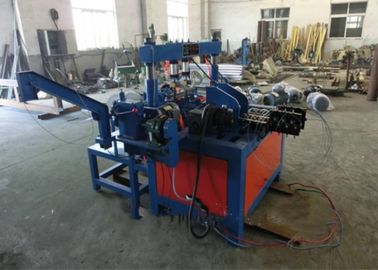

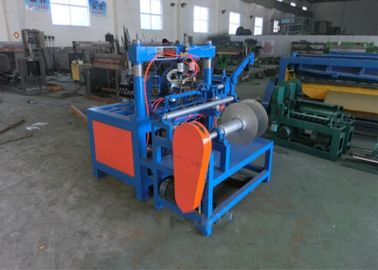

380V 72KVA Brick Force Wire Making Machine For Iron Galvanized Mesh Panel

China 380V 72KVA Brick Force Wire Making Machine For Iron Galvanized Mesh Panel supplier
380V 72KVA Brick Force Wire Making Machine For Iron Galvanized Mesh Panel supplier 380V 72KVA Brick Force Wire Making Machine For Iron Galvanized Mesh Panel supplier 380V 72KVA Brick Force Wire Making Machine For Iron Galvanized Mesh Panel supplier 380V 72KVA Brick Force Wire Making Machine For Iron Galvanized Mesh Panel supplier

Large Image :  380V 72KVA Brick Force Wire Making Machine For Iron Galvanized Mesh Panel

Product Details:

Place of Origin: Hebei China
Brand Name: ChengKe
Certification: ISO
Model Number: CK-BM-780Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: NO
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, , Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: CK - BM - 780Q Brick Force Wire Mesh Welding Machine Mesh Width: 780 Mm
Wire Diameter: 1.5-2.5mm Welding Speed: 40-50times/min
Nominal Voltage: 380V 3phase 50HZ After Sale: Engineers Available To Service Machinery Overseas

Iron Galvanized Mesh Panel Brick Force Roll Mesh Welding Machine





description



 This kind machine is used to make wire mesh for brick reinforcement and it is widely inAfrica area. It is controlled by intergrated electric circuit. Not only welding speed is fast butalso it is easy to learn and operate. Cross wire is pre straightened and pre cut by wire straightening and cutting machine. Crosswire feeding device is driven by step motor which make the hole accurate. Line wire is in coiland straightened by wire straightening wheel. Line wire distance can be adjusted by movingthe electrode and cross wire distance can be adjusted by operating the PLC panel. And themesh pulling device is also driven by step motor which make the aperture accurate.Both machine could produce three or four pieces of wire mesh at the same time.Each pieceof mesh have 8mm extra length at both side.The available wire is black wire or galvanized wire.Finished product can be in roll or in panel.



Features



1.The machine adopts electrical synchronous control technique,both welding time and cent-control welding is composed of digital and integrated electric circuit.

2.This is operation is accurate, it has stable function,firm welded point and without welded tracks. Not only welding speed is fast but also it is easy to learn and operate.

3. It is easy to regulate mesh hole and mesh size is rather accurate,welding aperture could also adjust rand only within the range.



Specification





Iron Galvanized Mesh Panel Brick Force Roll Mesh Welding Machine
Welding wire diameter Φ1.6MM-Φ2.5MM
Space of cross wires 50-400mm
Space of line wires 250~300mm
welding width 300mm
Seep of Welding 45times/min
Nominal voltage 380V 3phase 50HZ
Nominal power 72KVA



Packaging



1. The main body of the wire mesh welding machine will be packaged with plastic.

2. The anther parts of the wire mesh welding machine,will be packaged with cartons,they will be protected well.

3. The spare parts of the wire mesh welding machine will be packaged in the wooden cases.

4. Only this type wire mesh welding machine will need a 20' container loading.

5. If you have another package requirements,we will change it .

6. We will supply the best package for you.



Usage



Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobilevehicles, big ships.



Service



Pre-Sales Service:

Inquiry and consulting support.

Sample testing support.

View our Factory.

Online visit

After-Sales Service:

Training how to install,operate and maintain the machine.

Engineers available to service machinery overseas.

One year gurantee for the whole machine.

Operation manual is availabl

Sincerely look forward to cooperate with you ! For more details about wire mesh welding machine, welcome to contact with us in any time ! We will fully committed to provide the best quality products and services.
