Product Details:
Payment & Shipping Terms:
|
| Product Name: | Brick Force Wire Mesh Welding Machine | Mesh Width: | 780 Mm |
|---|---|---|---|
| Wire Diameter: | 1.5-3.0mm | Welding Speed: | 40-50times/min |
| Weight: | 1.5t | After Sale: | Engineers Available To Service Overseas |
| High Light: | reinforcing mesh machine,wire mesh knitting machines |
||
New Technology Brick Force Wire Mesh Welding Machine For Building Materials
description

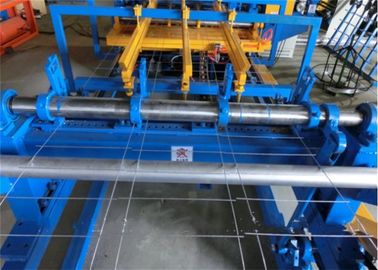

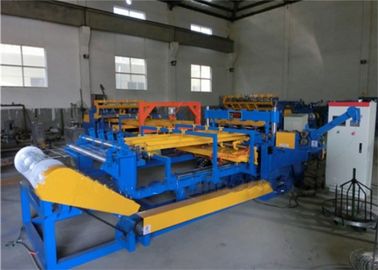

The brice force mesh welding machine adopts synchronous control technique.The welding time and separate welding are controlled by PLC system for digital input panel or touch screen buttons,more intelligent operations and rationalizing.The device has the advantages of stable performance,strong welding spot,accurate welding aperture.The machine adopts synchronous control technology of power electronic,auto-sharding,automatic rolling,high yield,stable performance,strong welding spot,without welded tracks.
1). This kind machine is used to make wire mesh for brick reinforcement and it is widely in
Africa area. It is controlled by intergrated electric circuit. Not only welding speed is fast but
also it is easy to learn and operate.
2). Cross wire is pre straightened and pre cut by wire straightening and cutting machine. Cross
wire feeding device is driven by step motor which make the hole accurate. Line wire is in coil
and straightened by wire straightening wheel. Line wire distance can be adjusted by moving
the electrode and cross wire distance can be adjusted by operating the PLC panel. And the
mesh pulling device is also driven by step motor which make the aperture accurate.
3). Both machine could produce three or four pieces of wire mesh at the same time.Each piece
of mesh have 8mm extra length at both side.
4). The available wire is black wire or galvanized wire.

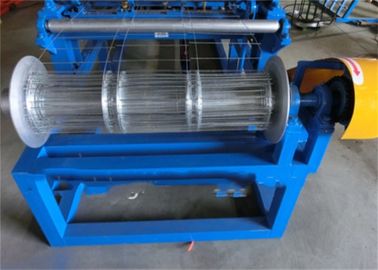

5). Finished product can be in roll or in panel.
Features
1. The machine adopts synchronous control technique.
2. The welding time and separate welding are controlled by PLC for system digital input panel or touch screen buttons.It can be more intelligent operations and rationalizing.
3. The advantages of the device are stable performance ,strong welding spot and accurate welding aperture.
4. The machine adopts synchronous control technology of power electric,auto-sharding,automatic rolling,high yield,stable performance,strong welding spot,without welded tracks.
5. It is easy for operator.
Usage
Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobilevehicles, big ships.
Specification
| New Technology Brick Force Wire Mesh Welding Machine For Building Materials | |
| Number of electrodes | 8 or 6 |
| Max mesh width | 780 mm |
| Wire diameter | 1 . 5 - 3 . o mm |
| Cross wire space | 75 , 115 , 150 , 230 mm |
| Line wire space | 300 mm |
| Power capacity | 160 KVA |
| Welding speed | 30 - 40 nips/minute |
