CNC Concrete Ladder Brick Force Wire Making Machine 380v 50hz Capacity 160 KVA

Automatic CNC Concrete Ladder Weld Wire Mesh Machine Saving Labor

description

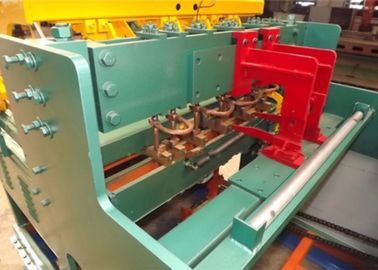

Brick Force Mesh Welding Machine's main features are: bar for wire plate into the expected, the horizontal line is broken wires into the material, can out of the four web plate at the same time, continuous production volume mesh. Brick force mesh welding machine main function structure are: bar straightening mechanism, locating mechanism of ordinate, horizontal hopper Mechanical Seine institutions, locating mechanism of grid, mesh segmentation device, network device.

Features

1. This kind machine is used to make wire mesh for brick reinforcement and it is widely in
Africa area. It is controlled by intergrated electric circuit. Not only welding speed is fast but
also it is easy to learn and operate.

2. Cross wire is pre straightened and pre cut by wire straightening and cutting machine. Cross
wire feeding device is driven by step motor which make the hole accurate. Line wire is in coil
and straightened by wire straightening wheel. Line wire distance can be adjusted by moving
the electrode and cross wire distance can be adjusted by operating the PLC panel. And the
mesh pulling device is also driven by step motor which make the aperture accurate.

3. Both machine could produce three or four pieces of wire mesh at the same time.Each piece
of mesh have 8mm extra length at both side.

4. The available wire is black wire or galvanized wire.

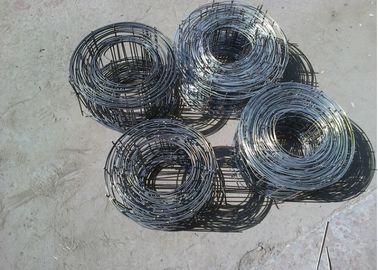

5. Finished product can be in roll or in panel.

Specification

Usage

It is usually applied to wall reinforcement,has the characteristics of seismic resistance.

Service

Pre-Sales Service:

Inquiry and consulting support.

Sample testing support.

View our Factory.

Online visit

After-Sales Service:

Training how to install,operate and maintain the machine.

Engineers available to service machinery overseas.

One year gurantee for the whole machine.

Operation manual is availabl
