Square Hole Brick Force Wire Making Machine High Output Stable Performance

I'm Online Chat Now

Square Hole Brick Force Wire Making Machine High Output Stable Performance

China Square Hole Brick Force Wire Making Machine High Output Stable Performance supplier
Square Hole Brick Force Wire Making Machine High Output Stable Performance supplier Square Hole Brick Force Wire Making Machine High Output Stable Performance supplier Square Hole Brick Force Wire Making Machine High Output Stable Performance supplier Square Hole Brick Force Wire Making Machine High Output Stable Performance supplier

Large Image :  Square Hole Brick Force Wire Making Machine High Output Stable Performance

Product Details:

Place of Origin: Hebei China
Brand Name: ChengKe
Certification: ISO
Model Number: CK-BM-780Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Packed according to international standard or as request
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, , Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: Square Hole Brick Force Mesh Wire Welding Machine Mesh Width: 780 Mm
Wire Diameter: 1.5-3.0mm Welding Speed: 40times/min
Warranty: 1 Year After Sale: Engineers Available To Service Overseas

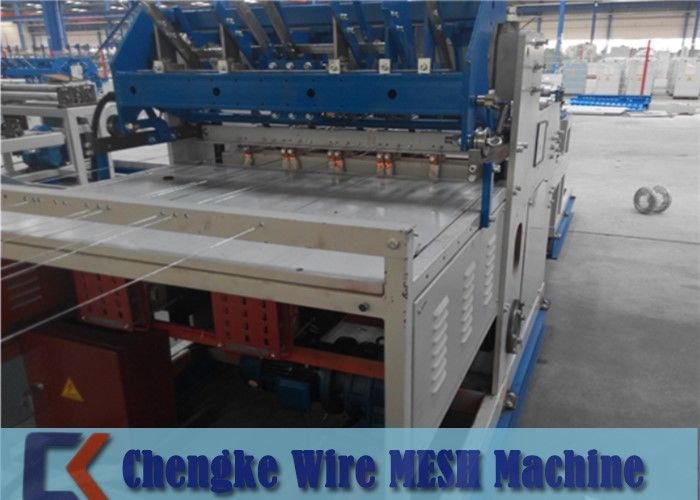

Automatic Square Hole Brick Force Mesh Wire Welding Machine





description



1. This kind machine is used to make wire mesh for brick reinforcement and it is widely in Africa area, Malawi,South Africa. It is controlled by intergrated electric circuit. Not only welding speed is fast but also it is easy to learn and operate.

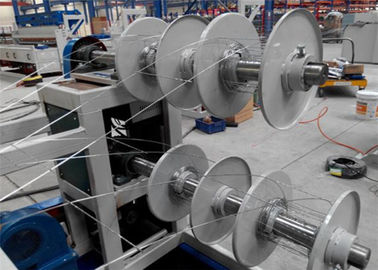

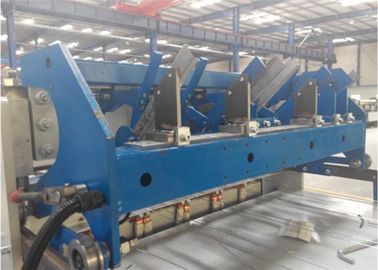

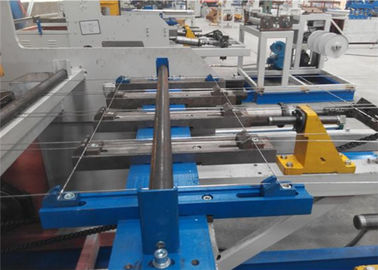

2. Cross wire is pre straightened and pre cut by wire straightening and cutting machine. Cross wire feeding device is driven by step motor which make the hole accurate. Line wire is in coil and straightened by wire straightening wheel. Line wire distance can be adjusted by moving the electrode and cross wire distance can be adjusted by operating the PLC panel. And the mesh pulling device is also driven by step motor which make the aperture accurate.

3. Both machine could produce three or four pieces of wire mesh at the same time. Each piece of mesh have 8mm extra length at both side.

4. The available wire is low carbon steel wire, black wire or galvanized wire.

5. Finished product can be in roll or in panel.



Features



1. wire dia:2-3 mm ,
the cross spacing : 57mm,75mm,230mm
the line spacing :300mm

2. wire dia:1.5-2.5mm
the cross spacing:115mm,230mm
the line spacing :300mm

Both machine could produce three pieces of wire mesh at the same time.Each piece of mesh have 8mm extra length at both side.
The available wire is black wire or galvanized wire.



Specification



Item Brick Mesh Welding Machine
Number of electrodes 8 or 6
Max mesh width 780 mm
Wire diameter 1 . 5 - 3 . o mm
Cross wire space 75 , 115 , 150 , 230 mm
Line wire space 300 mm
Power capacity 160 KVA
Welding speed 30 - 40 nips/minute
Control system PLC control



Usage



It is usually applied to wall reinforcement,has the characteristics of seismic resistance.



Packing



1 . The spare parts and control cabinet will be loaded in wooden box.
2 . The main machine is nude packing or plastic packing
