380V 50Hz 2.8T Automatic Weaving Machine , Galvanized Wire Mesh Fencing Machine

I'm Online Chat Now

380V 50Hz 2.8T Automatic Weaving Machine , Galvanized Wire Mesh Fencing Machine

China 380V 50Hz 2.8T Automatic Weaving Machine , Galvanized Wire Mesh Fencing Machine supplier
380V 50Hz 2.8T Automatic Weaving Machine , Galvanized Wire Mesh Fencing Machine supplier 380V 50Hz 2.8T Automatic Weaving Machine , Galvanized Wire Mesh Fencing Machine supplier 380V 50Hz 2.8T Automatic Weaving Machine , Galvanized Wire Mesh Fencing Machine supplier 380V 50Hz 2.8T Automatic Weaving Machine , Galvanized Wire Mesh Fencing Machine supplier

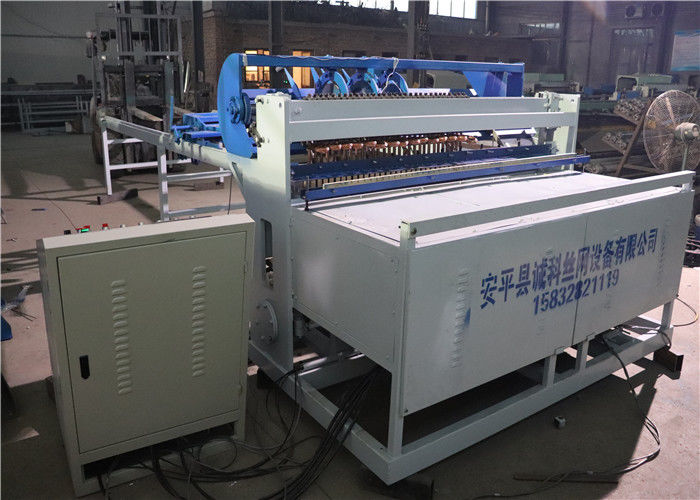

Large Image :  380V 50Hz 2.8T Automatic Weaving Machine , Galvanized Wire Mesh Fencing Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: JK - AC - 1200Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: with plastic package
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: Galvanized Poultry Cage Welding Machine Cross Wire Space: Min. 25mm
Warranty: 1 Year After-sales: Engineers Available To Service Machinery Overseas
Welding Aperture: 50x50-200x200mm Voltage: 380V

Chicken Pigeon And Rabbit breeding Cages Galvanized Mesh Welding Machine





description



This machine adopts electrical and electronic synchronous control technique, both welding time and separate-control welding is composed of digital and integrated electric circuit. This operation is accurate, it has stable function , firm welded point, without welded tracks. Not only welding speed is fast, but also it is easy to learn and operate. The machine is equipped with precise equipment for weft cutting and positioning, so the length of wefts is identical and regular , it is unnecessary to slice the side . Drawing mesh system adopts elastic tension and opening positioning mesh, it is easy to regulate mesh hole , and mesh opening size is rather accurate, welding aperture could adjust randomly within range.



Features



Breeding net plane belongs to the industry a welding net machine, its main features are: bar for wire plate into the expected, the horizontal line for broken wires into the material, can be continuous production piece of mesh or volume mesh according to different divided into mechanical Seine net mechanism and numerical control net two types, mechanical Seine machines main function structure and architectural mesh welding machine, the same numerical control net main function structure models are: bar straightening device ordinate positioning mechanism, horizontal l hopper, numerical control net



Specification



Wire diameter 2 .2 - 3 .5mm Line wire feeding Coil wire
Line wire space 50 - 300mm Cross wire feeding Pre - cut wire
Cross wier Space 20 - 300mm Rated capacity 125kva*2
Width of Mesh ≤ 1000mm Input voltage 3 - Phase 380V 50Hz
Welding speed 80 - 110times / min Weight 2.8T



Packing



1 . The spare parts and control cabinet will be loaded in wooden box.
2 . The main machine is nude packing or plastic packing
