Flexible Chicken Cage Welding Machine 380V High Efficient For Making Animal / Pet Cages

I'm Online Chat Now

Flexible Chicken Cage Welding Machine 380V High Efficient For Making Animal / Pet Cages

China Flexible Chicken Cage Welding Machine 380V High Efficient For Making Animal / Pet Cages supplier
Flexible Chicken Cage Welding Machine 380V High Efficient For Making Animal / Pet Cages supplier Flexible Chicken Cage Welding Machine 380V High Efficient For Making Animal / Pet Cages supplier Flexible Chicken Cage Welding Machine 380V High Efficient For Making Animal / Pet Cages supplier Flexible Chicken Cage Welding Machine 380V High Efficient For Making Animal / Pet Cages supplier

Large Image :  Flexible Chicken Cage Welding Machine 380V High Efficient For Making Animal / Pet Cages

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: JK - AC - 1200Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: with plastic package
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 Ssts
Contact Now
Detailed Product Description
Product Name: High Efficient Flexible Mesh Welding Machine Condition: New
Warranty: 1 Year After-sales: Engineers Available To Service Machinery Overseas
Width Of Mesh: 1200mm Voltage: 380V

High Efficient Flexible Mesh welding Machine For Making Animal / Pet cages





description



1. This pets cage welding machine is automatically welding machine used for poultry cage wire diameter 2. 8~3.2mm.

2.The pets cage welding machine adapts electrical synchronous technique.

3.The welding time and seperate welding of pets cage welding machine is controlled by digital electric circuit.

4.The pets cage welding machine makes sure of the line and cross wires be solid mesh in the principle of multi-electrode resistance welding.

5. The pets cage welding machine consists of welding machine, line and cross wires feeding device, mesh stepping system and electrical control system.

6. The material of pets cage welding machine can be low carbon steel wire or galvanized wire.

7. The line wires of pets cage welding machine are in coil and can be straightened by straightening wheel on the front of the machine and then be put into the line wire entrance.

Cross wires of pets cage welding machine are pre-straight and cut wires.

8. The mesh aperture size of pets cage welding machine can be adjusted. The line wire space can be adjusted through adjusting the electrode space. The cross wires space can be adjusted by PLC control system.

9. The welding speed of pets cage welding machine can be 60times/min, the work speed mainly depends on the wire material,mesh aperture, choice of welding parameter, proficiency of workers,etc

10. The finished product of pets cage welding machine can be in roll or in panel.



Features



1. The machine is made of thick steel plate and profile steel, high strength, high toughness, main structure more solid.

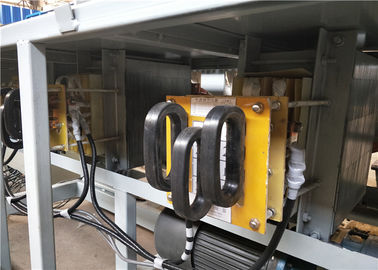

2. The welding adopts synchronous power control and separate-control, making the welding transformers working separately to reduce the capacity requirement of power transformer, reduce the impact current.

3. The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.

4. The mesh pulling system in cycle is automatically calculated. The mesh pulling car can pulling mesh by the cycle automatically.

5. The machine will stop working automatically if there is no cross wires in hopper device.

6. The cutting machine can cut the mesh as demand length automatically.



Specification



High Efficient Flexible Mesh welding Machine For Making Animal / Pet cages

Wire diameter 2.8 - 3.2mm Line wire feeding Coil wire
Line wire space 50 - 200mm Cross wire feeding Pre - cut wire
Cross wier Space 50 - 200mm Rated capacity 125kva*2
Width of Mesh ≤ 1000mm Input voltage 3 - Phase 380V 50Hz
Welding speed 80times / min Weight 2.8T
