Automatic Chicken Wire Mesh Machine , Heavy Duty Animal Wire Cage Welding Machine

I'm Online Chat Now

Automatic Chicken Wire Mesh Machine , Heavy Duty Animal Wire Cage Welding Machine

China Automatic Chicken Wire Mesh Machine , Heavy Duty Animal Wire Cage Welding Machine supplier
Automatic Chicken Wire Mesh Machine , Heavy Duty Animal Wire Cage Welding Machine supplier Automatic Chicken Wire Mesh Machine , Heavy Duty Animal Wire Cage Welding Machine supplier Automatic Chicken Wire Mesh Machine , Heavy Duty Animal Wire Cage Welding Machine supplier Automatic Chicken Wire Mesh Machine , Heavy Duty Animal Wire Cage Welding Machine supplier

Large Image :  Automatic Chicken Wire Mesh Machine , Heavy Duty Animal Wire Cage Welding Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: JK - AC - 1200Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: with plastic package
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: Chicken Cage Welding Machine Wire Diameter: 1.5-3mm
Warranty: 1 Year Voltage: 380V
Wire Space: 50-200mm Speedy: 40-60times/min

Automatic Chicken Cage Welding Machine CE / ISO9001 Approved





description

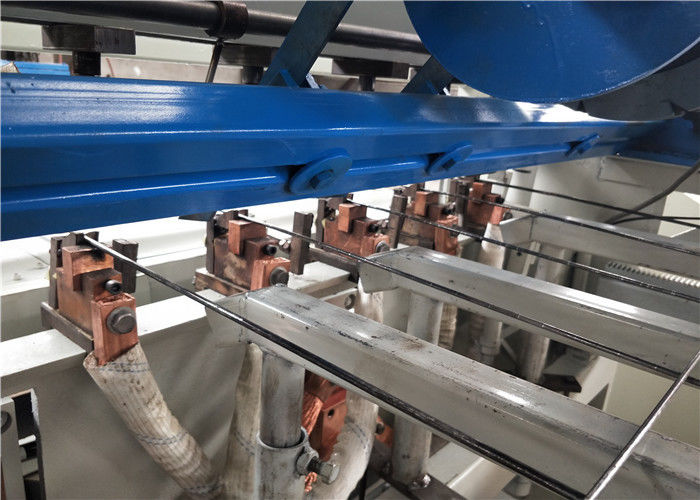

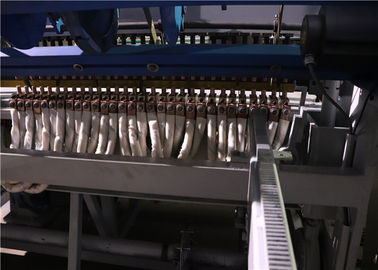

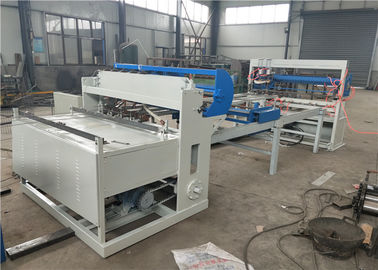

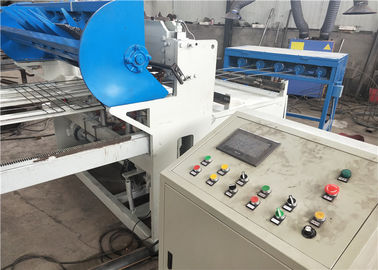

This pets cage welding machine is automatically welding machine used for poultry cage wire diameter 1.5-3.2mm.The pets cage welding machine adapts electrical synchronous technique.The welding time and seperate welding of pets cage welding machine is controlled by digital electric circuit.The pets cage welding machine makes sure of the line and cross wires be solid mesh in the principle of multi-electrode resistance welding.The pets cage welding machine consists of welding machine, line and cross wires feeding device, mesh stepping system and electrical control system.The material of pets cage welding machine can be low carbon steel wire or galvanized wire.The line wires of pets cage welding machine are in coil and can be straightened by straightening wheel on the front of the machine and then be put into the line wire entrance.

Cross wires of pets cage welding machine are pre-straight and cut wires.The mesh aperture size of pets cage welding machine can be adjusted. The line wire space can be adjusted through adjusting the electrode space. The cross wires space can be adjusted by PLC control system.The welding speed of pets cage welding machine can be 60times/min, the work speed mainly depends on the wire material,mesh aperture, choice of welding parameter, proficiency of workers,etcThe finished product of pets cage welding machine can be in roll or in panel.



Features



1. Business model:factory direct sale

2. Professional manufacture

3. No environment pollution

4. Smooth and beautiful welding spots

5. Product quality assurance

6. Available to weld multiple work pieces and heads in high efficiency

7. With credibility and protection

8. Good after sale service



Specification



Automatic Chicken Cage Welding Machine CE / ISO9001 Approved
Model CK-AC-1 CK-AC-2
Input power 380V 50 Hz 380V 50 Hz
Max. width 1200mm 1200mm
Line wire space 25—200mm 25—200mm
Cross wire space 25—200mm 25—200mm
Line wire diameter 1.8-3.0mm 1.8-3.0mm
Cross wire diameter 1.8-2.5mm 1.8-2.5mm
Rated capacity 60kva*2 60kva*2
Welding point No. 16 16
Motor power 2.2kw 2.2kw
Feed line wire Coils wire Coils wire
Feed cross wire Coil wire Coils wire & pre-cut wire
Welding speed 40-50times/min 50-60times/min



Packing



1 . The spare parts and control cabinet will be loaded in wooden box.
2 . The main machine is nude packing or plastic packing
