CNC Chicken Cage Weld Mesh Making Machine , Easy Operation Fully Automatic Chain Link Fence Machine

I'm Online Chat Now

CNC Chicken Cage Weld Mesh Making Machine , Easy Operation Fully Automatic Chain Link Fence Machine

China CNC Chicken Cage Weld Mesh Making Machine , Easy Operation Fully Automatic Chain Link Fence Machine supplier
CNC Chicken Cage Weld Mesh Making Machine , Easy Operation Fully Automatic Chain Link Fence Machine supplier CNC Chicken Cage Weld Mesh Making Machine , Easy Operation Fully Automatic Chain Link Fence Machine supplier CNC Chicken Cage Weld Mesh Making Machine , Easy Operation Fully Automatic Chain Link Fence Machine supplier CNC Chicken Cage Weld Mesh Making Machine , Easy Operation Fully Automatic Chain Link Fence Machine supplier

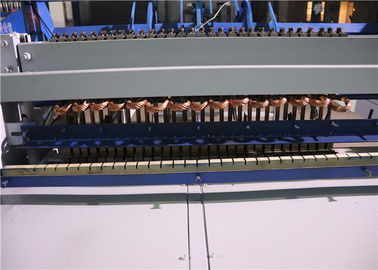

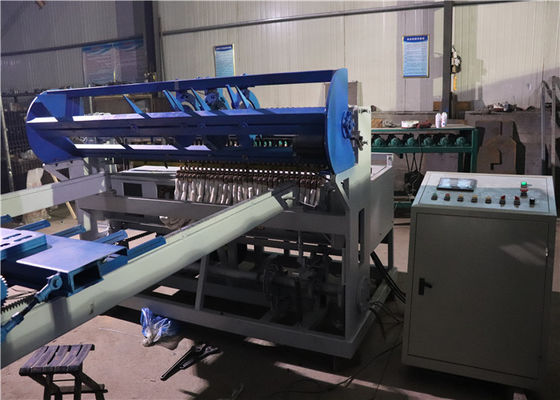

Large Image :  CNC Chicken Cage Weld Mesh Making Machine , Easy Operation Fully Automatic Chain Link Fence Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: JK - AC - 1200Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: with plastic package
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 Ssts
Contact Now
Detailed Product Description
Product Name: Pet Cages Mesh Welding Machine Condition: New
Warranty: 1 Year After-sales: Engineers Available To Service Machinery Overseas
Width Of Mesh: 1200mm Voltage: 380V

CNC Chicken Cage Welding Machine Welding Firm And Easy Operate





description



1..The input front-panel is touch screen , the operate is more intelligent and reasonabl
2.The line wire and the cross wire are pre-straight and pre-cut.
3.Wire mesh panel be pulled by the servo motor automaticly
4.Line wire feeding device save more welding time
5.The cross wire feeding from the hopper automaticly

6.The transformer adopts water-cooling system.
7.The water cooling system of electrode is designed, prolong the service time of electrode.



Features



1. The machine is made of thick steel plate and profile steel, high strength, high toughness, main structure more solid.

2. The welding adopts synchronous power control and separate-control, making the welding transformers working separately to reduce the capacity requirement of power transformer, reduce the impact current.

3. The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.

4. The mesh pulling system in cycle is automatically calculated. The mesh pulling car can pulling mesh by the cycle automatically.

5. The machine will stop working automatically if there is no cross wires in hopper device.

6. The cutting machine can cut the mesh as demand length automatically.



Specification



CNC Chicken Cage Welding Machine Welding Firm And Easy Operate

Wire diameter 2 - 4mm Line wire feeding Coil wire
Line wire space 50 - 300mm Cross wire feeding Pre - cut wire
Cross wier Space 20 - 300mm Rated capacity 125kva*2
Width of Mesh ≤ 1000mm Input voltage 3 - Phase 380V 50Hz
Welding speed 80 - 110times / min Weight 2.8T



Packing



1 . The spare parts and control cabinet will be loaded in wooden box.
2 . The main machine is nude packing or plastic packing
