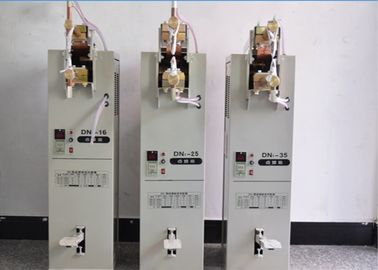

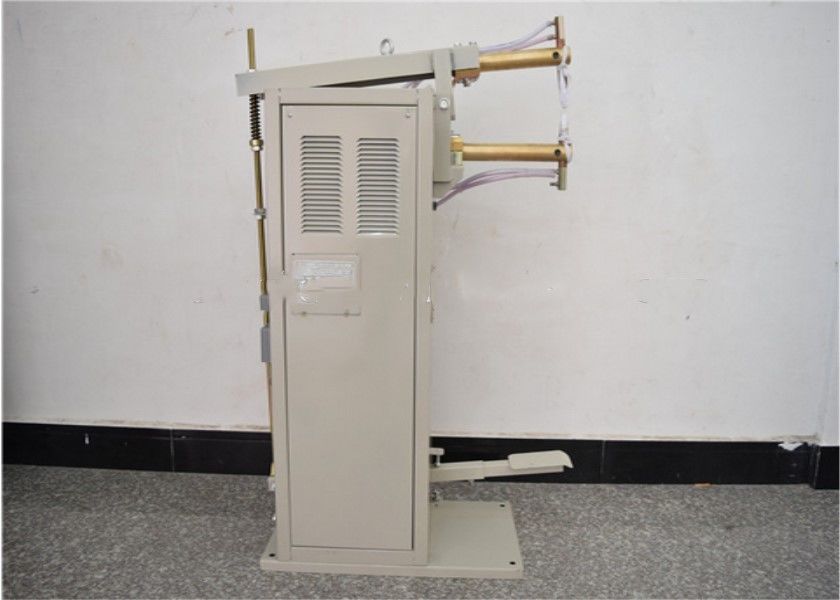

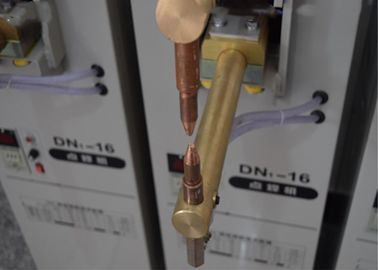

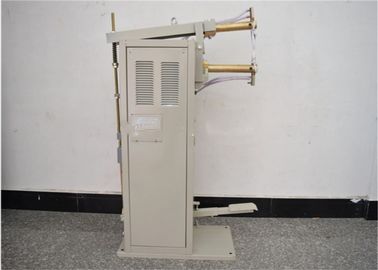

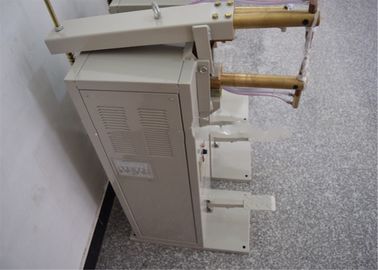

Low Carbon Steel Water Cooled Spot Welder , Stable Body Structure Resistance Welding Machine

I'm Online Chat Now

Low Carbon Steel Water Cooled Spot Welder , Stable Body Structure Resistance Welding Machine

China Low Carbon Steel Water Cooled Spot Welder , Stable Body Structure Resistance Welding Machine supplier
Low Carbon Steel Water Cooled Spot Welder , Stable Body Structure Resistance Welding Machine supplier Low Carbon Steel Water Cooled Spot Welder , Stable Body Structure Resistance Welding Machine supplier Low Carbon Steel Water Cooled Spot Welder , Stable Body Structure Resistance Welding Machine supplier Low Carbon Steel Water Cooled Spot Welder , Stable Body Structure Resistance Welding Machine supplier

Large Image :  Low Carbon Steel Water Cooled Spot Welder , Stable Body Structure Resistance Welding Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-SW-20Q

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 35
Contact Now
Detailed Product Description
Condition: New Weight: 100Kg
Warranty: 1 Year Usage: Stop Welding
Color: Customer's Requirment After-sales: Overseas Service Provided
High Light:

pneumatic spot welding machine

,

water cooled spot welder

Pedal Type Spot Welding Machine Spot Welding Machine Water Cooling





Features


1, suitable for a variety of working conditions of the welding transformer: welding transformer using vacuum molded epoxy resin casting, the secondary internal water forced cooling. Which has a good moisture, shock and dustproof performance, insulation up to F level, power output strong, stable, continuous and frequent work, long service life.
The magnet structure is specially designed and made of high permeability material. The no-load loss is very small, the efficiency is high, energy saving and energy saving are beneficial to reduce the production cost.
2, excellent pressure drive mechanism: cylinder stroke continuously adjustable, suitable for different sizes of workpiece welding. Gas system design and device selection, fully guarantee the welding machine can be high-speed, frequent, continuous long-term use.
Using guide bearings, drive shaft surface nitriding treatment, the sleeve for the wear-resistant alloy, to ensure smooth welding pressure transmission, long mechanical life.
3, strong and stable body structure: the machine body for the thick box box structure, the head for the cast iron alloy to ensure that the welder has enough steel and engage in impact performance, coupled with excellent pressure drive mechanism, the welding process electrode Accurate and slippery, to achieve a stable pressure, especially for high quality and multi-point solder joint welding needs.
4, accurate and stable thyristor circuit: the main circuit of the welding machine with a pair of high voltage high voltage, strong water cooled thyristor (some welding machine is installed in the import of SCR module) for the on-off switch , Fast response, accurate and stable parameters, thus ensuring a smooth welding current output.
5, the perfect cooling system: welding SCR, transformer and electrode parts were used reliable and efficient water cooling system to ensure that the welding machine with continuous and efficient work, reliable and durable and high quality welding quality.



Use


Welding machine assembly of the appropriate electrode form and controller, to meet a variety of wire mesh basket products, steel mesh, pipe products such as processing and manufacturing. Can be carbon steel, stainless steel, galvanized steel and a variety of non-ferrous metal wire, pipe, sheet, screw and other spot welding and row welding.



Our Services


Pre-sale Service

1. Supply item design,process design.

2. Help you to chose the fit machine.

3. Making the machine according to your requirement.

Sale Service

1.Acceptance equipment together with you.

2.Help you to make the method statement and the details of the process.

After Service

1. Guarantee for a year.

2. Quality problem,we will send you the accessories.

3. Free repair whole using life(without the freight and accessories charge).



advantages


1. Punctual: Have your orders met with the latest delivery?

We are a manufacturer with so many advanced and new machines.

It ensures we have the ability to carry out the production schedual for punctual delivery.

2. 17-year production experience. We have over 17 years exprerience in this industry.

That means we can preview the problems for the orders and production.

Therefore, it will make sure to deduce the risk of bad situation to happen.



parameters



Rated Voltage/Frequency 380V/220V; 50HZ
Rated Capacity(KVA) 50
Rated Primary Current(A) 42.1
Rated Duty Cycle(%) 10
No Load Voltage(V) 1.98-3.01
Adjustable Step Number 4
Adjust time of welding (S) 0-9.99
Arm Extension(MM) 280
Welding Thickness(MM) 2+2
Main Transformer Cooling Mode air cooling
Electrode Cooling Mode water cooling
Weight(KG) 100
