Highway Wire Mesh Fence Machine , 3 - 8mm Water Cooling Welded Wire Mesh Machine

I'm Online Chat Now

Highway Wire Mesh Fence Machine , 3 - 8mm Water Cooling Welded Wire Mesh Machine

China Highway Wire Mesh Fence Machine , 3 - 8mm Water Cooling Welded Wire Mesh Machine supplier
Highway Wire Mesh Fence Machine , 3 - 8mm Water Cooling Welded Wire Mesh Machine supplier Highway Wire Mesh Fence Machine , 3 - 8mm Water Cooling Welded Wire Mesh Machine supplier Highway Wire Mesh Fence Machine , 3 - 8mm Water Cooling Welded Wire Mesh Machine supplier Highway Wire Mesh Fence Machine , 3 - 8mm Water Cooling Welded Wire Mesh Machine supplier

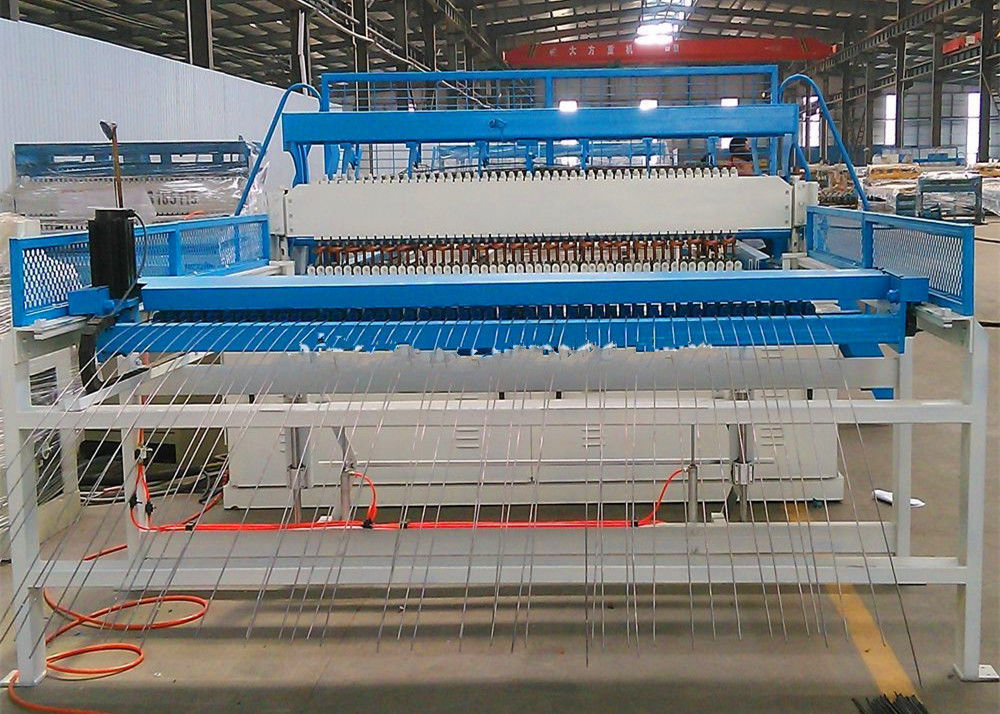

Large Image :  Highway Wire Mesh Fence Machine , 3 - 8mm Water Cooling Welded Wire Mesh Machine

Product Details:

Place of Origin: Hebei China
Brand Name: Chengke
Certification: ISO
Model Number: CK - CM - 2500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: 1.Main machine is in nude package. 2.Spare parts and control cabinet are packed with wooden box.
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 Sets
Contact Now
Detailed Product Description
Color: Wjite , Blue Condition: New
Application:: Construction Mesh After-sales: Engineers Available To Service Machinery Overseas
Warranty: 1 Year Control System: PLC

Automatic Construction Mesh Welding Machine 3 - 8mm Water Cooling





Description



1, This machine is controlled by the special computer, the welding current and welding time in each welding transformer can be individually adjusted. The machine operating interface is made up with color touch screen and control buttons, easy to operate.
2, Host framework structure, stable performance, the welding pressure is continuously adjustable, solid and perfect welding spot.
3, Integrated deceleration electromagnetic brake motors for power, inverter control, adjustable speed.

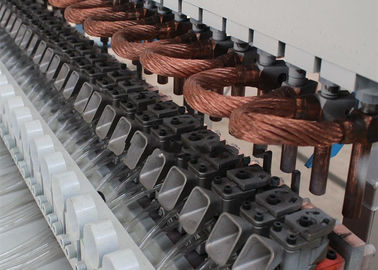

4, Modular design for the upper and lower electrodes, convenient to adjust the mesh.

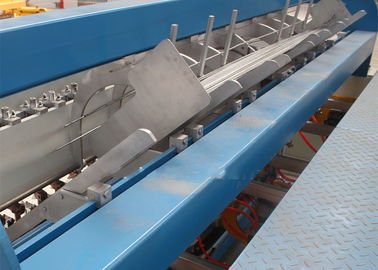

5, weft-hopper obtains wires by motor driver devices, electric magnetic increase feeding device auto-feeding the wefts into the preparation area of disc device from the large hopper, and the weft hopper is installed in the removable pull rid, convenient to adjust and maintain.
6, The mesh pulling part driven by servo motor can be set a variety of weft space in the same mesh, pull the mesh continuously back and forth to extend the size of mesh, and use pneumatic clamping device to accurate weft spacing.
7,The warp feeding part driven by stepper motor can be fed the warps which a whole mesh needs when welding, so that the machine is very short interval of time.



Electric Cabinet



1. This machine adopts synchronous control technique. The center-control and welding time are composed of PLC.
2. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, welding repeatedly.
3. The longitude wires and cross wire distance can be adjusted by inputing the data you want. The greatest advantage is that you can adjust the distance weft wire at random on the same piece of wire mesh sheet.



Usage



Highway, railway and various function of protection. For construction which used for basis of high building, roof mesh, floor mesh. It is also widely used in agriculture and poultry mesh, farming mesh and so on.



parameters





Wire diameter 3-8mm
Welding width Max.2500mm
Longitude wire space 100-300mm
Cross wire space Min.50mm
Mesh length Max.12000mm
Wire feeding way Pre-straightened & pre-cut
Welding speed 50-75 times/min
Welding electrodes Max.24pcs
Welding transformers 150kva*6pc
Weight 5.2T



Customers notices


Each equipment with different specifications.
Therefore, we need you to send us specific inquiry, then we can quote better price and suitable detailed information according to your specific technical data and requirements.
Parameter includes:

1.Mesh panel wire diameter : from ___mm to ___mm

2.Mesh opening size : from ___mm to ____mm

3.Would you like mesh panel or mesh rolls?

4.Max. Wire mesh width ?
