| Name: | Chain Link Fence Weaving Machine | Color: | Any Color You Like |
|---|---|---|---|
| Wire Dia: | 1.8mm-4.0mm | Mesh: | 30mm-100mm |
| Weight: | 4T | After-sales: | Provide Overseas Services |

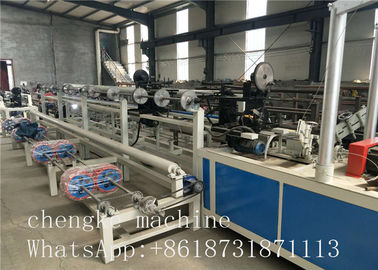

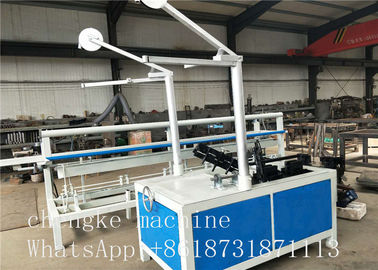

2m 3m 4m Full Automatic Chain Link Fence Weaving Machine / Chain Link Fence Machine
Our Advantage:
1. We have more than 12 years of experience producing chain link machine. The machine can running very well.
2. You can use our machine directly once you get electricity. No need to connect wires or adjust the machine. Which can save your time and overseas service cost.
3. We use Servo Motor on the machine. As result, the machine can running very fast and lso you can adjust many things through the PLC.
4. We using big and thick frame tube on the machine. Moveover, E-coating will be used as the machine surface finish. As a result, the machine produced by us is very strong and realy beautiful.
Welcome you to contact us to get our machine photoes or videos.
The Main Parameters
| Maximun wire diameter | 4.0 mm |
| Minimum wire diameter | 1.5 mm |
| Maximum Mesh Size | 100 mm |
| Minimum Mesh Size | 40 mm |
| Machine Width | 2 m--6 m |
| Volts Power |
220V, 380V, 415V, 440V, etc. (According to your requirement) |
| HZ Power |
50hz, 60hz, etc. (According to your requirement) |
| Phrase |
3 (According to your requirement) |
| Mesh Edge | Over lock or twist |
| Total Power | 11 kw |
