| Product Name: | Plastic Coated Spiral Wire Mesh Machine Spiral Wire Knitted Machine | Warranty: | 1 Year |
|---|---|---|---|
| Power: | 11KW | Color: | Customized |
| After Sales: | Engineers Available To Service Overseas | Rated Voltage: | 380V,50HZ |
| High Light: | chain link fence making machine,fence making equipment |
||

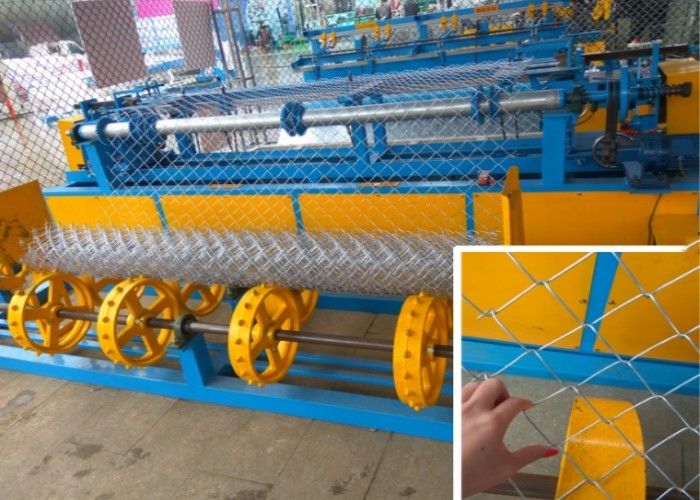

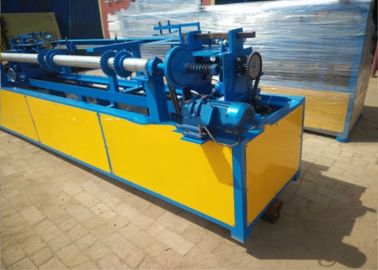

PVC Wire / Plastic coated spiral wire mesh machine spiral wire knitted machine
presentation
Full-automatic hook chain link fence machine is the use of special equipment for domestic metal wire metal production huangtongwang, also known as diamond netting machine, supporting net for mining machine, anchor net machine, grille machine network, netting machine. Applicable to various types of steel wire, stainless steel wire, aluminum alloy wire, PVC wire, spray silk as raw material huangtongwang weaving production, with uniform mesh, net surface smooth, elegant, web width to adapt to the tune, weaving simple, beautiful and practical, wire diameter, pore size range of large scale.
Features
1. The production efficiency is about twice of the same species.
2. The fault is the lowest in the same species.
3. The machine is easy and simple to handle.The worker has the common mechanical knowledge can master it in one hour.
4. The loss of the raw materials of the same species is 5%-7%, while the chain link fence machine is nearly zero.
5. The electrical energy the chain fence link making machine can save is about20%.
6. It is suitable to all kinds of mild steel wires.
parameters
| Product Name | Chain Link Fence Machine |
| Wire Diameter(mm) | 1.8-4.0mm Feeding Wire numbers:two(Note:Steel Wire Standard:GB3081-82) |
| Mesh Size(mm) | 25x25-100x100 |
| Netting width(mm) | 600--4000 |
| Capacity(m2/hour) | 60-120 |
| Rated Voltage | 380V,50HZ |
| Motor Power | 9.0KW |
|
Electric System |
1. The machine is controlled by PLC automatic controller 2. Germany Siemens PLC origin 3. The inventor is selected from high quality products 4. Low-voltage electrical from Germany Schneider 5. Electric&Machinery from Taiwan Teco Electric 6. Electrical |
Usage
this network is mainly used for coal mine supporting roof, has strong security compared with other network types. At the same time can also be used for the production of chickens, ducks, geese, and the zoo fence. Protection, highway guardrail, sports fence, the road green belt protection net of mechanical equipment. Made of box shaped containers, cages filled with rocks, can be used to support and protect the seawall, hillsides, road and bridge, reservoirs and other civil engineering. Is the flood of good material. Can also be used for the production of handicrafts, machinery and equipment transport network, with strong impact resistance, construction convenience, corrosion resistance and other characteristics.
