High Efficiency Automatic Chain Link Machine , Galvanized Wire Chain Link Fence Equipment

I'm Online Chat Now

High Efficiency Automatic Chain Link Machine , Galvanized Wire Chain Link Fence Equipment

China High Efficiency Automatic Chain Link Machine , Galvanized Wire Chain Link Fence Equipment supplier
High Efficiency Automatic Chain Link Machine , Galvanized Wire Chain Link Fence Equipment supplier High Efficiency Automatic Chain Link Machine , Galvanized Wire Chain Link Fence Equipment supplier High Efficiency Automatic Chain Link Machine , Galvanized Wire Chain Link Fence Equipment supplier High Efficiency Automatic Chain Link Machine , Galvanized Wire Chain Link Fence Equipment supplier

Large Image :  High Efficiency Automatic Chain Link Machine , Galvanized Wire Chain Link Fence Equipment

Product Details:

Place of Origin: Hebei China
Brand Name: Chengke
Certification: ISO
Model Number: CK - CL - 1Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: With plastic
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25
Contact Now
Detailed Product Description
Product Name: Can Be Customized Automatic Chain Link Fence Machine Wire Diameter: 1.5-4.5 MM
Power: 5.5 KW After Sales: Engineers Available To Service Overseas
Warranty: 1 Year Voltage: 380v
High Light:

fence making equipment

,

chain link weaving machine

Can Be Customized Automatic Chain Link Fence Machine High Efficiency





presentation

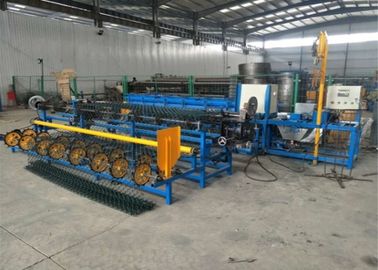

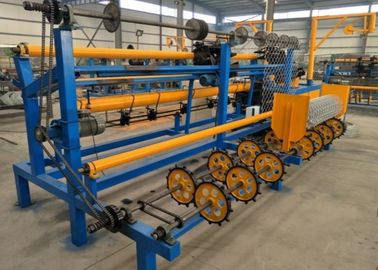

Chain link fence machine is specially used for manufacturing chain link fences of different sizes. The wire is taken in from the pay-off and pass through the mould where the DIAMOND SIZE takes place. After passing through the mould, the diamond pattern wire is automatically thrown on the winding shaft in the switching process. Once the switching is complete,the woven is manually glided down to enable the next switch to take place.

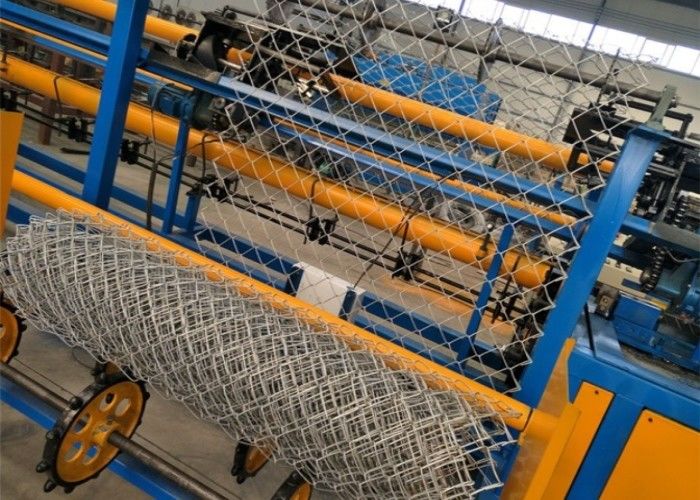

The chain link is automatically wound to form rolls when the desired length is manufactured.

The machine is controlled by PLC automatic controller, so only one person is needed to operate it.

One side or both sides of the end of mesh hole is twisted or with burr in edge.

Finally,according to the practical need,can use the compacting machine to make the chain link fence mesh into the smaller and tight rolls.



Features



1. The production efficiency is about twice of the same species.
2. The fault is the lowest in the same species.
3. The machine is easy and simple to handle.The worker has the common mechanical knowledge can master it in one hour.
4. The loss of the raw materials of the same species is 5%-7%, while the chain link fence machine is nearly zero.
5. The electrical energy the chain fence link making machine can save is about20%.
6. It is suitable to all kinds of mild steel wires.



parameters



Can Be Customized Automatic Chain Link Fence Machine High Efficiency
Woven wire diameter 1.5-4.5mm
Mesh size 25*25-100*100mm
Mesh width 3.0m
Production capacity 50-150m2/h
Main machine power 5.5kw
Weaving machine power 1.5KW
Border wire treating machine power 0.75kw*2
Voltage 380V/50HZ/Customized
Weight 1.8T



Usage



Chicken fence, poultry fence and zoo enclosure, construction, mechanical equipment protection, sports ground fence, railway guard, green belt fence,etc.
