Custom Diamond Mesh Fencing Machine , Iron Net Making Machine Low Energy Consumption

I'm Online Chat Now

Custom Diamond Mesh Fencing Machine , Iron Net Making Machine Low Energy Consumption

China Custom Diamond Mesh Fencing Machine , Iron Net Making Machine Low Energy Consumption supplier
Custom Diamond Mesh Fencing Machine , Iron Net Making Machine Low Energy Consumption supplier Custom Diamond Mesh Fencing Machine , Iron Net Making Machine Low Energy Consumption supplier Custom Diamond Mesh Fencing Machine , Iron Net Making Machine Low Energy Consumption supplier Custom Diamond Mesh Fencing Machine , Iron Net Making Machine Low Energy Consumption supplier

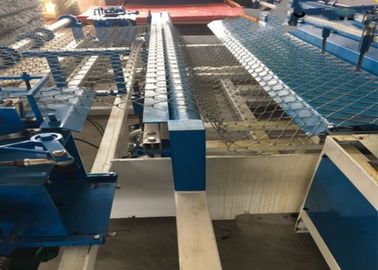

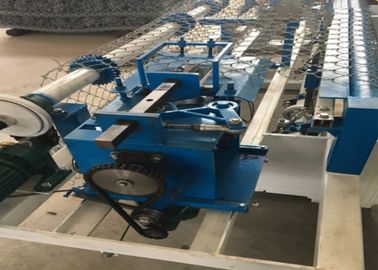

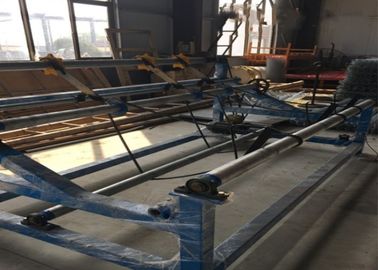

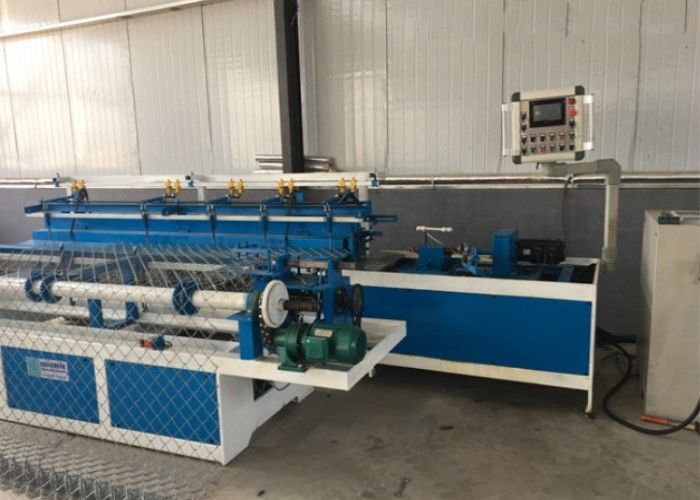

Large Image :  Custom Diamond Mesh Fencing Machine , Iron Net Making Machine Low Energy Consumption

Product Details:

Place of Origin: Hebei China
Brand Name: Chengke
Certification: ISO
Model Number: CK - CL - 1Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: With plastic
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25
Contact Now
Detailed Product Description
Product Name: Chain Link Fence Machine Warranty: 1 Year
Color: Customer's Requirment Condition: New
After Sales: Engineers Available To Service Overseas
High Light:

chain link fence making machine

,

chain link weaving machine

Diamond Knitted Height Extension Fence Machine For Ranch Fence And Cyclone Fence





presentation



Full-automatic hook chain link fence machine is the use of special equipment for domestic metal wire metal production huangtongwang, also known as diamond netting machine, supporting net for mining machine, anchor net machine, grille machine network, netting machine. Applicable to various types of steel wire, stainless steel wire, aluminum alloy wire, PVC wire, spray silk as raw material huangtongwang weaving production, with uniform mesh, net surface smooth, elegant, web width to adapt to the tune, weaving simple, beautiful and practical, wire diameter, pore size range of large scale.



Features



chain link fence machine is easy to operae and control. The surface of the chain link fence is flat after being arranged. This machine has reliable property, less troubles and easy maintenance. It is suitable for small enterprises.

Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

High pressure double crank to control the die opening and closing.

Running in a high automatization and intellectualization,no pollution





parameters



Max. width of mesh 4m
Max length of mesh 20m
Mesh hole 25-80mm
Wire dimeter 2-4mm
Motor power for winding 0.75kw
Motor power for parting tool 1.5kw
The output per minute For example: if the mesh is 50*50mm, width 2000mm, the output will be 2 square meters per minute.
Electric system

1.Japan Mitsubishi PLC origin

2.Servo motor

3.French Schneider (Low-voltage electrical system)

4.Electric & Machinery from Taiwan Teco Electronic

Control system PLC automatic controller
Power consumption 9.25kw



Usage



this network is mainly used for coal mine supporting roof, has strong security compared with other network types. At the same time can also be used for the production of chickens, ducks, geese, and the zoo fence. Protection, highway guardrail, sports fence, the road green belt protection net of mechanical equipment. Made of box shaped containers, cages filled with rocks, can be used to support and protect the seawall, hillsides, road and bridge, reservoirs and other civil engineering. Is the flood of good material. Can also be used for the production of handicrafts, machinery and equipment transport network, with strong impact resistance, construction convenience, corrosion resistance and other characteristics.
