Low Noise Automatic Steel Bar Bending Machine , GW60 Rebar Bending Equipment

China Low Noise Automatic Steel Bar Bending Machine , GW60 Rebar Bending Equipment supplier
Low Noise Automatic Steel Bar Bending Machine , GW60 Rebar Bending Equipment supplier Low Noise Automatic Steel Bar Bending Machine , GW60 Rebar Bending Equipment supplier Low Noise Automatic Steel Bar Bending Machine , GW60 Rebar Bending Equipment supplier Low Noise Automatic Steel Bar Bending Machine , GW60 Rebar Bending Equipment supplier

Large Image :  Low Noise Automatic Steel Bar Bending Machine , GW60 Rebar Bending Equipment

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-RB

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Product Name: Automatic Rebar Stirrup Bending Machine Can Be Customized Condition: New
Frequency: 50 HZ / 60 HZ After-sales: Overseas Service Provided
Voltage: 380 V Warrany: 1 Year

High Efficiency Automatic Rebar Stirrup Bending Machine Can Be Customized




Description

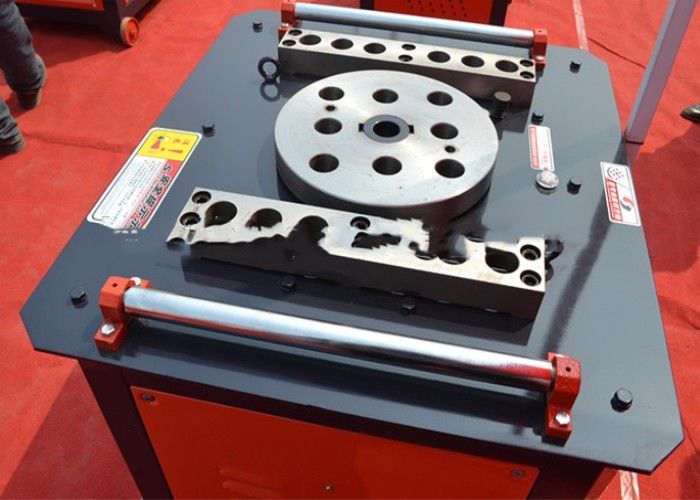

Steel bending machine, steel processing machinery is one of the working mechanism is a work in vertical shaft rotating horizontal disc, the reinforcing steel bar in the dotted line in the figure, supporting pin shaft fixed on the machine tool, the center pin on disc and the bent pin in work, when the rotary disk will bend to bend diameter steel bar, there are several holes in the working plate, to bending pin, can also be the diameter of the center pin changes accordingly



information



the latest heavy-duty gear box assembly, spindle is a maintenance free.Column and spool adopt high quality alloy steel, high temperature quenching treatment, higher hardness , more wear-resisting.increase heavy of disc and square steel, Never deformation, bend bar more accurately.enclosed electric cabinet, moistureproof, prevent dust, prevent leakage.thickening the dashboard, increase the integrity of the machine and longer service life.double-sided operation, so that people can operate in two directions conveniently and quickly.Low noise, minimum loss of power



Advantages



Model GW40 GW50 GW60 GW70
Bending Diameter Plain carbon steel ≤Φ40mm ≤Φ50mm ≤Φ60mm ≤Φ70mm
Deformed steel ≤Φ32mm ≤Φ40mm ≤Φ50mm ≤Φ65mm
Operation disc spec Φ350mm Φ450mm Φ500mm 600mm
Axis Rotate speed High speed 9.63r/min 2.685r/min 8r/min 7r/min
Low speed 4.68r/min 4r/min 3r/min
Motor power 3KW-4p 4KW-4p 5.5KW-6p 5.5kw-8p
Working voltage 220V~440V 220V~440V 220V~440V 220V~440V
Motor Rotate speed 1440r/min 1440r/min 720r/min 360r/min
Overall Dimension 930x730x710mm 1060×810×720mm 1080×850×740mm 1.2x1x0.95
Whole Weight 350kg 450kg 680kg 980kg
Above parameter just for your reference,if any other special demands,can be customized design based on your demands.
