Construction Rebar Cutting And Bending Machine , 3KW Steel Rod Bending Machine

China Construction Rebar Cutting And Bending Machine , 3KW Steel Rod Bending Machine supplier
Construction Rebar Cutting And Bending Machine , 3KW Steel Rod Bending Machine supplier Construction Rebar Cutting And Bending Machine , 3KW Steel Rod Bending Machine supplier Construction Rebar Cutting And Bending Machine , 3KW Steel Rod Bending Machine supplier

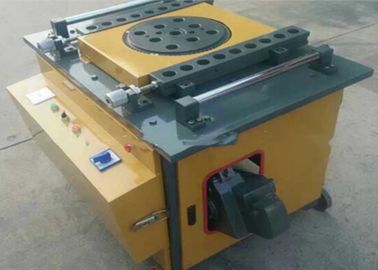

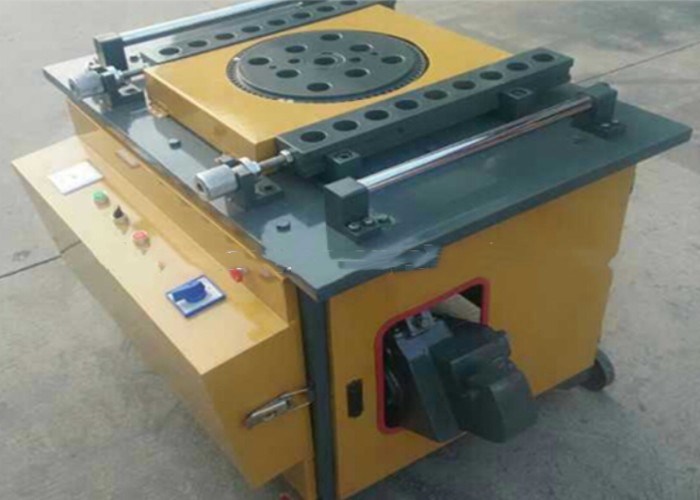

Large Image :  Construction Rebar Cutting And Bending Machine , 3KW Steel Rod Bending Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-RB

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Product Name: Construction Machinery Steel Bar Bending Machine Power: 3KW
Frequency: 50 HZ / 60 HZ After-sales: Overseas Service Provided
Voltage: 380V, 415V, 44OV Or Customized Warrany: 1 Year
High Light:

cnc wire bending machine

,

rebar bending equipment

Construction Machinery Steel Bar Bending Machine / Rebar Bending Machine / Steel Bar Bender


Description


Steel bending machine, steel processing machinery is one of the working mechanism is a work in vertical shaft rotating horizontal disc, the reinforcing steel bar in the dotted line in the figure, supporting pin shaft fixed on the machine tool, the center pin on disc and the bent pin in work, when the rotary disk will bend to bend diameter steel bar, there are several holes in the working plate, to bending pin, can also be the diameter of the center pin changes accordingly



information



1 Low noise, minimum loss of power .

2 core components are extra thick and specially treated, long service life.

3 Time saving: the standard structure ensures the fastest bending speed.

4 Fully enclosed noise transmission box, high and low speed adjustable.

5 Helical gear, stronger bending force, ultra low noise.

6 Add eccentric, extra high hardness auxiliaries, adjustable board.

7 Working dish, insert seat and plug wheel are made of 45#, which are extra thick and treated with high frequency.

8 Heavier type of turbine made by 500 ductile, medium speed standard motor.



Advantages



Model GW40 GW50 GW60 GW70
Bending Diameter Plain carbon steel ≤Φ40mm ≤Φ50mm ≤Φ60mm ≤Φ70mm
Deformed steel ≤Φ32mm ≤Φ40mm ≤Φ50mm ≤Φ65mm
Operation disc spec Φ350mm Φ450mm Φ500mm 600mm
Axis Rotate speed High speed 9.63r/min 2.685r/min 8r/min 7r/min
Low speed 4.68r/min 4r/min 3r/min
Motor power 3KW-4p 4KW-4p 5.5KW-6p 5.5kw-8p
Working voltage 220V~440V 220V~440V 220V~440V 220V~440V
Motor Rotate speed 1440r/min 1440r/min 720r/min 360r/min
Overall Dimension 930x730x710mm 1060×810×720mm 1080×850×740mm 1.2x1x0.95
Whole Weight 350kg 450kg 680kg 980kg
Above parameter just for your reference,if any other special demands,can be customized design based on your demands.



Used



high quality rebar bending machine made by BC is an ideal equipment for bending threaded steel bar, smoothly steel bar, flat steel, square steel and angle steel. The machine is able to bend steel bar with diameter 6-42mm into your require and it is widely used inconstruction industry.
