| Product Name: | 380 V Servo Motor Single / Double Wire Automatic Stirrup Rebar Wire Bending Machine | Single Wire: | 4-10 |
|---|---|---|---|
| Double Wire: | 4-12 | After-sales: | Overseas Service Provided |
| Speed: | 110m/min | Warrany: | 1 Year |
| High Light: | automatic steel bar bending machine,cnc wire bending machine |
||

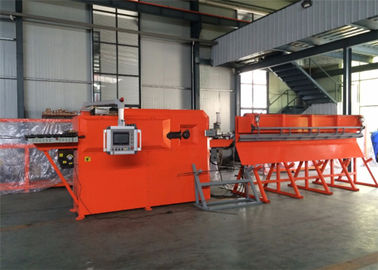

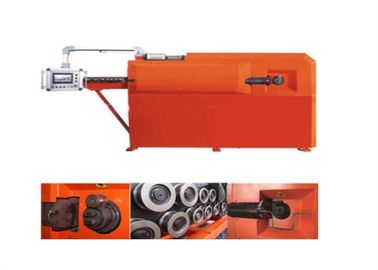

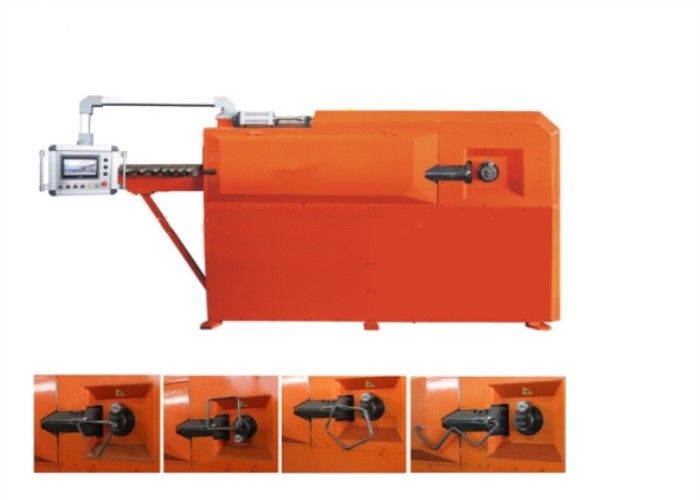

380 V Servo Motor Single / Double Wire Automatic Stirrup Rebar Wire Bending Machine
Description
Stirrup Bending Machine is a new generation steel bar bending machine. it is applicable to Φ4-Φ12HRB335 hot rolled ribbed steel bar,HRB400 hot rolled ribbed steel bar, plain round bar, and cold rolled ribbed steel bar. With the quality of standard size , high speed and mechanics performance stability. It is widely used with Steel works , rebar process workshop and Steel welding net factory.
information
1. Automatic wire feeding system ( PLC ).
2. Split, multi-blade design (patented) to reduce consumption costs
3. Large storage capacity can save 300 processing geometric graphics, high degree automation
4. Automatic double wire intake system, high processing efficiency
6. High power feeding motor to ensure bending bar accuracy.
7. The intelligent fault identification alarm system maintenance more convenient
8. Aerodynamic design observation door, easy adjustment and maintenance, and more security and fast.
9. Heavy-duty design line planes, equipped with a brake and buffer device can prevent chaotic lines caused by downtime
10. High quality special material and high treatment to make straightening wheels, traction wheels, the metering wheel, longer life with lower operating costs
11. Touch-screen console, easy to operate, and more fast
12. Control systems Electric parts: CHINESE TOP 1 BRAND.
Used
Steel bar bending machine is an ideal equipment for bending threaded steel bar, smoothly steel bar, flat steel, square steel and angle steel. it is widely used in building, bridge, railway construction industry.
Advantages
| Production capacity | Single wire | Φ5 – 12 [mm] |
| Double wire | Φ5 – 10 [mm] | |
| Production capacity per month | 200tons with 10hours/day and 6days/week | |
| Max. bending angle | ±180° [double direction] | |
| Max. bending speed | 1000 [°/sec] | |
| Max. pulling speed | 100 [m/min] | |
| Mandrel diameter | Φ25 – Φ32 [mm] | |
| Max. length of the stirrup side | 950 [mm] | |
| Min. length of the stirrup side | 50 [mm] | |
| Length tolerance | ± 1 [mm] | |
| Bending tolerance | ± 1° | |
| Average air-compressed consumption | 6 [l/min] | |
| Average electric power consumption | 5 [KW] | |
| Labeled electric power | 25 [KW] | |
| Voltage | 415 [V] – 50 [Hz] | |
| Overall machine weight | 2,600 [Kg] | |

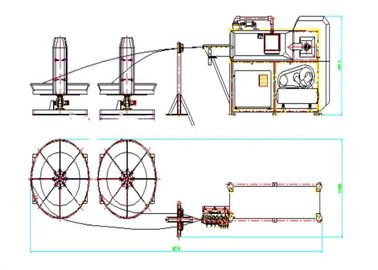

| Overall dimension | 8030 × 2005 × 2015 [mm] | |
